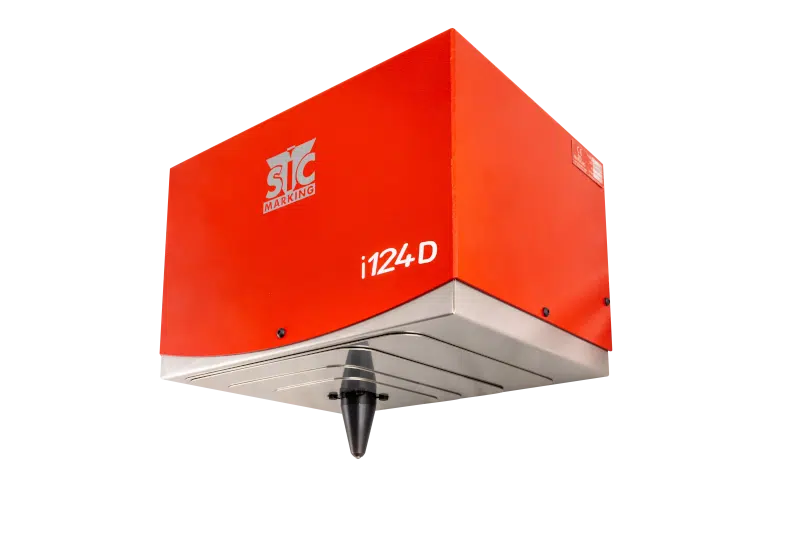

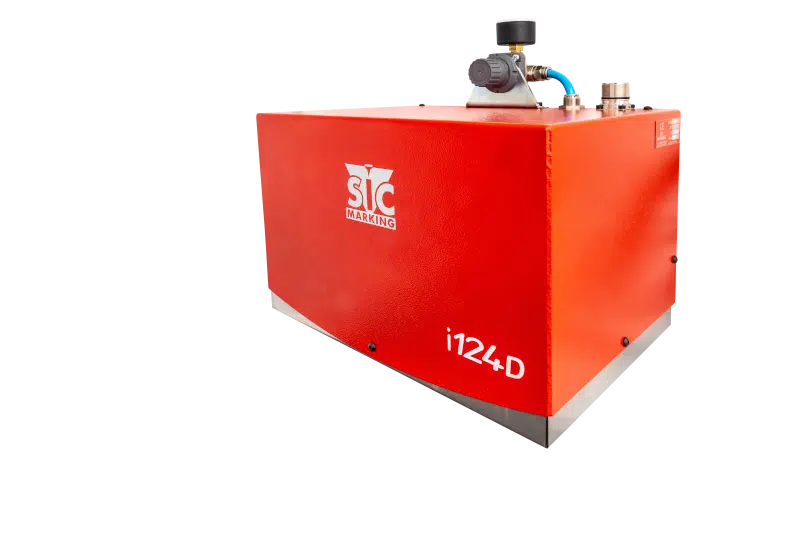

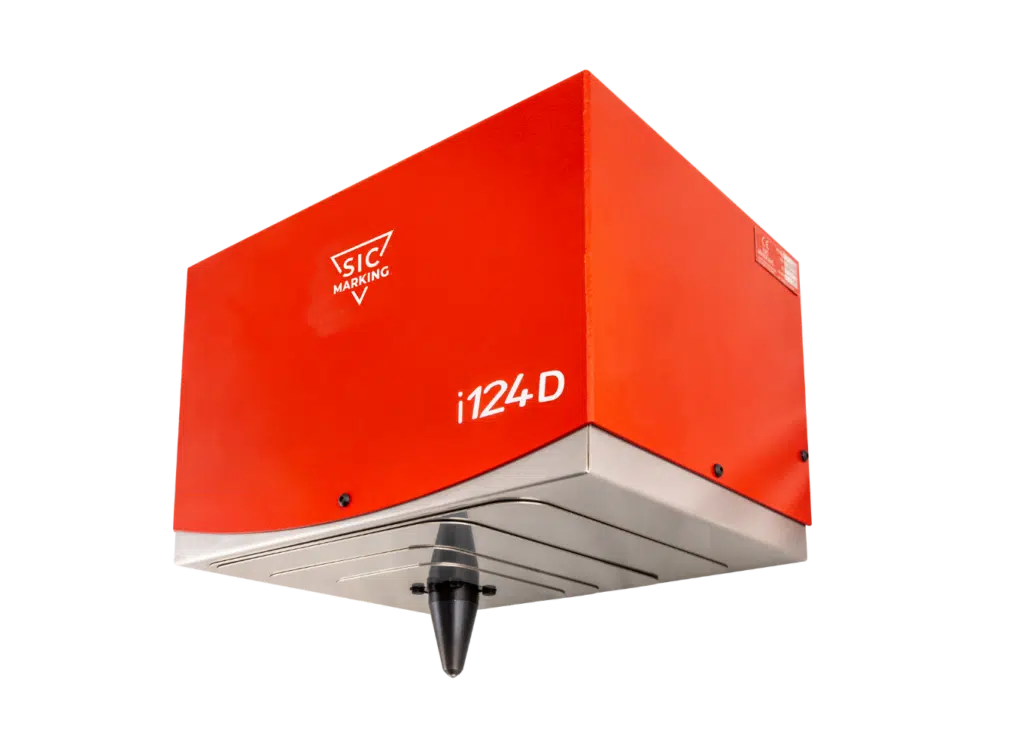

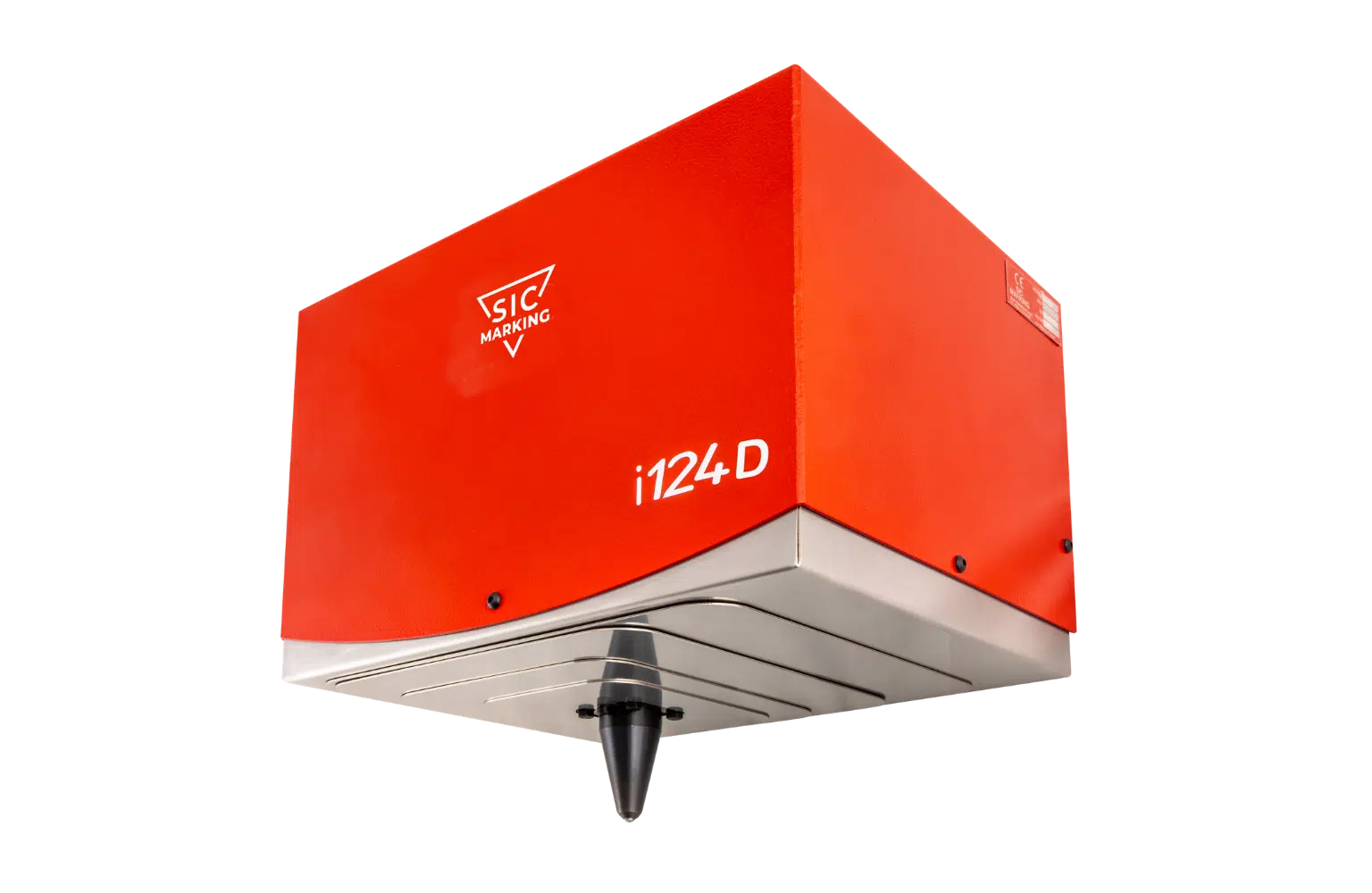

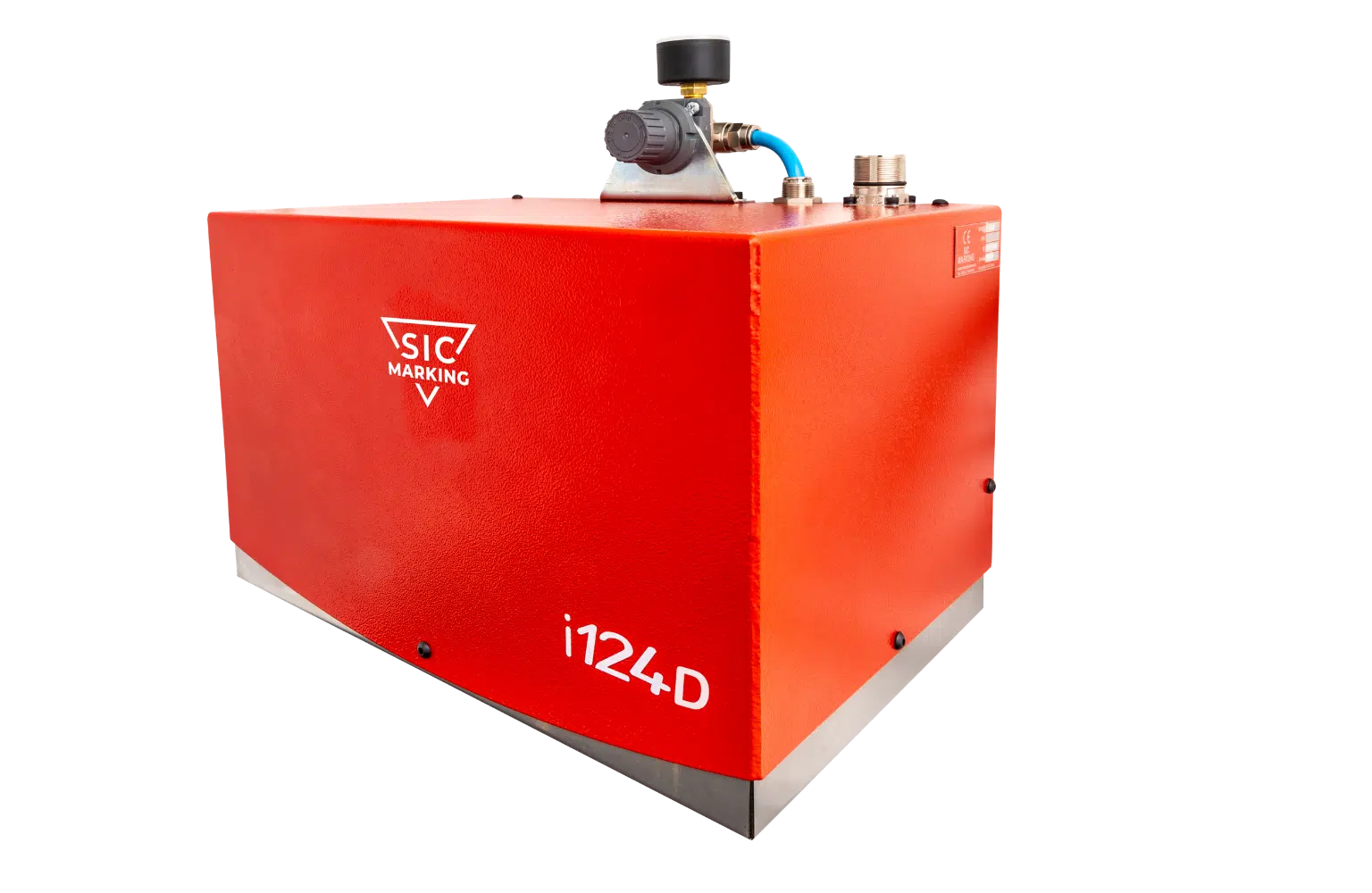

The I 124D is a DOT PEEN MARKING MACHINE designed for EASY INTEGRATION ON AUTOMATED LINES in an industrial environment.
The I 124D is probably the deepest dot peen marking machine on the market. It differs from other dot peening marking machines by its
SPECIFIC STYLUS AND PNEUMATIC STRIKER, designed for

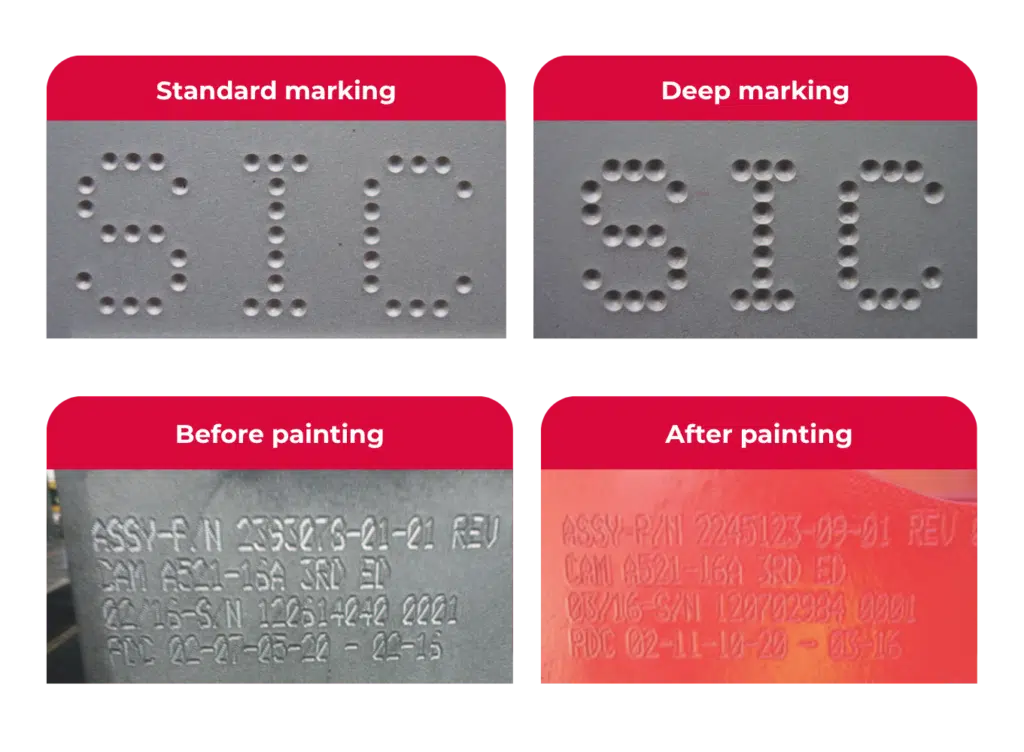

DEEP MARKING, UP TO 0.8 mm
on standard steel.
With powerful motors and a HEAVY DUTY STRUCTURE, the I 124D can mark ALL TYPES OF MATERIAL very fast.

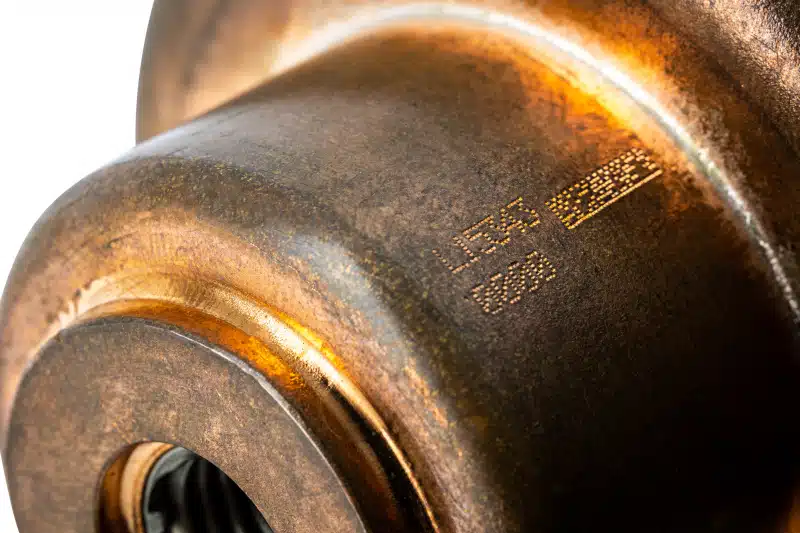

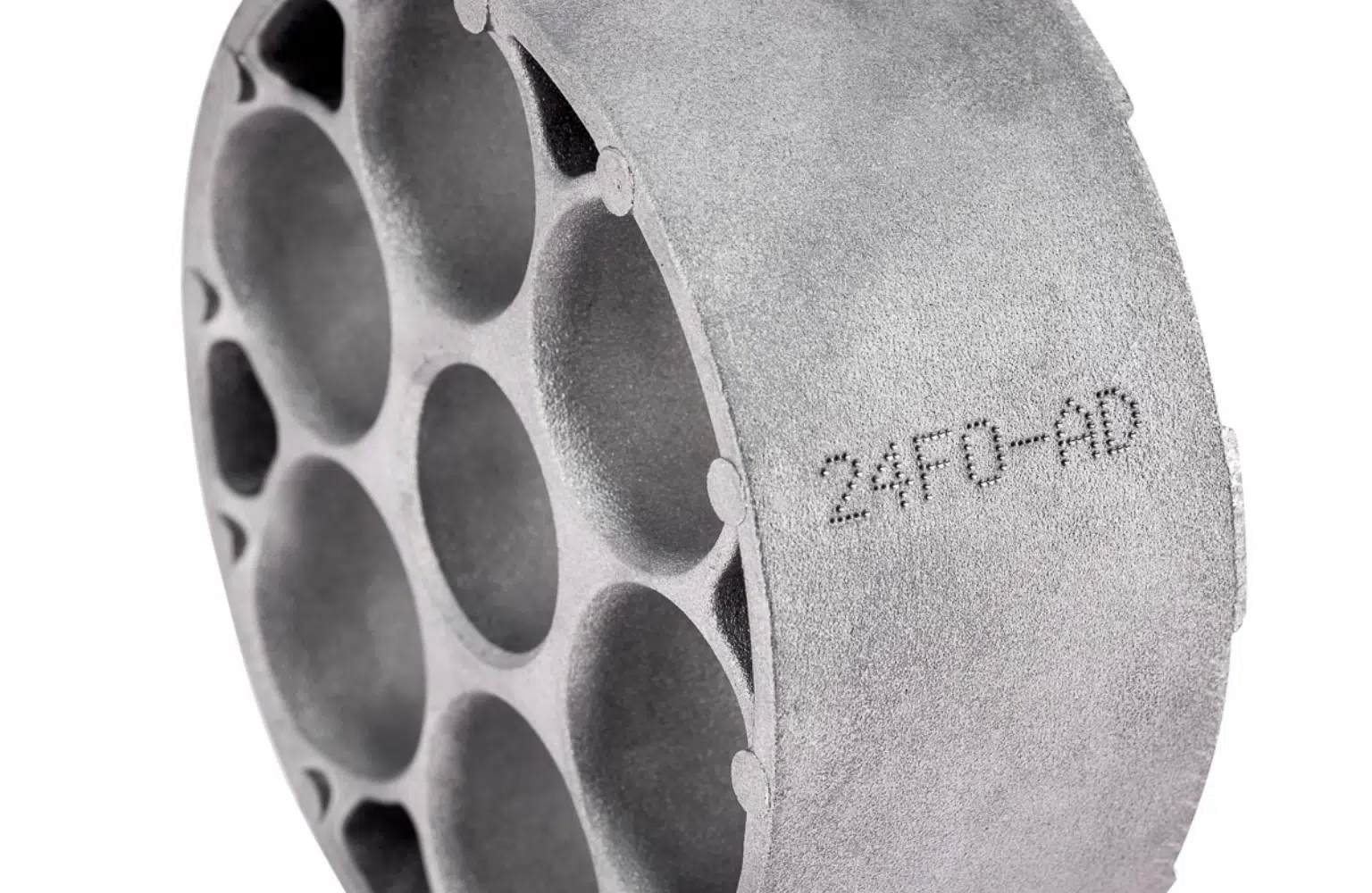

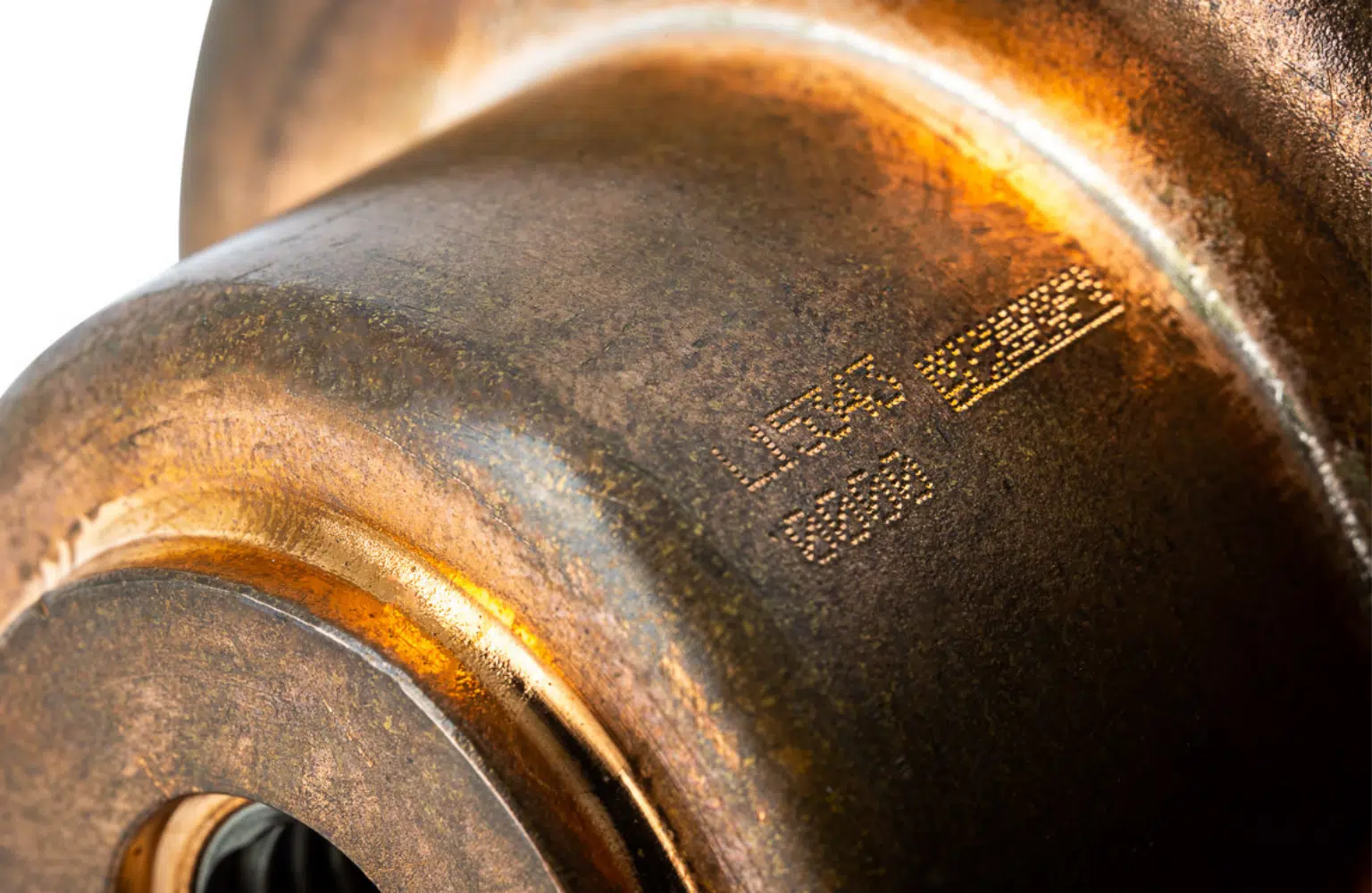

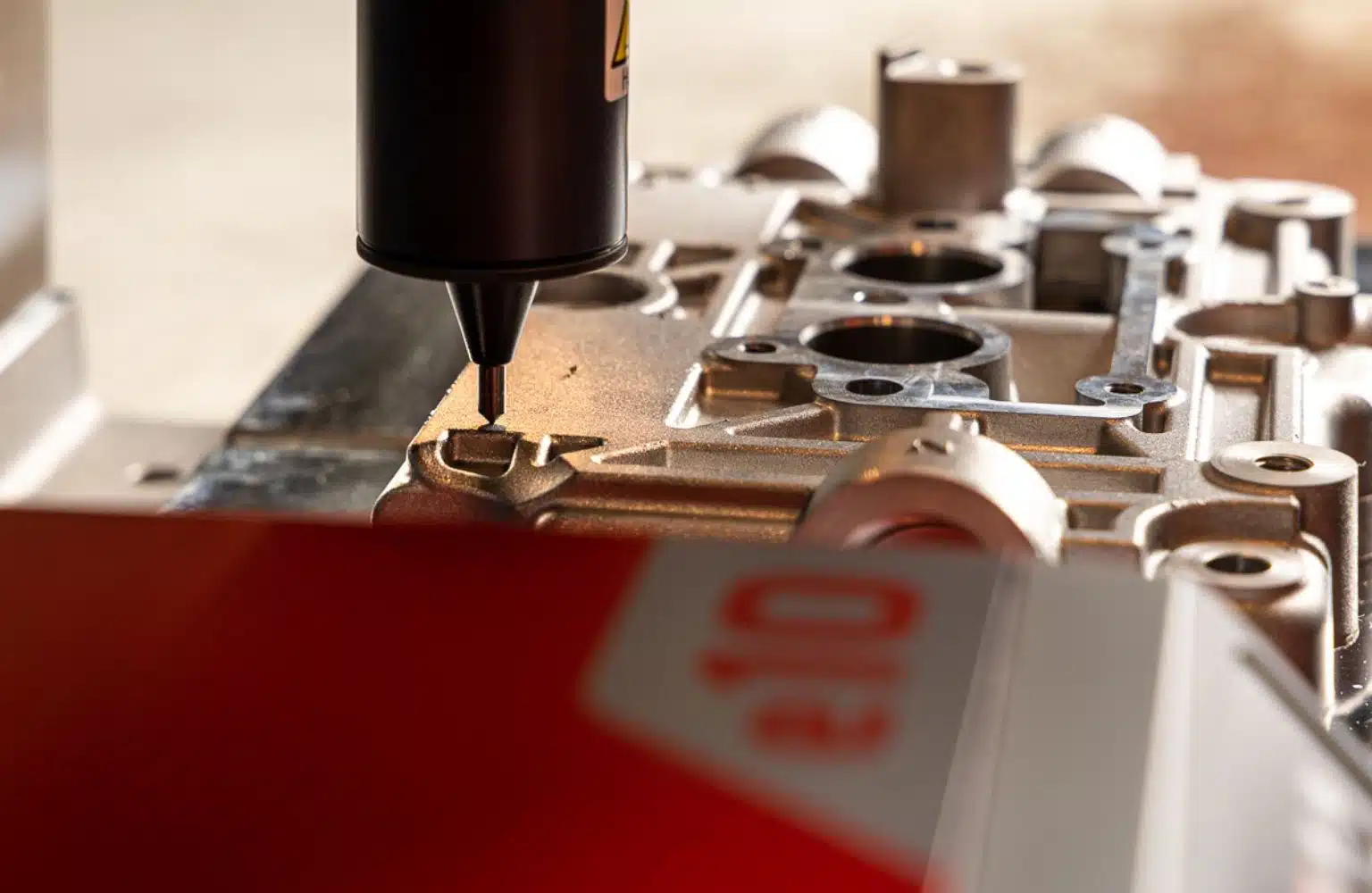

The tungsten carbide stylus deforms the material by creating a series of indents in the surface to be marked and can engrave alphanumeric text, logos, 2D Data Matrix codes or QR codes.
Mechanical specifications
120 x 60 mm
17.5 kg
5 m up to 10/15 m on option
Tungsten carbide, diameter 6, dedicated to deep marking
6 bar
Electronic specifications
112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)
5 kg
95 x 54 mm
Qwerty with waterproof membrane
300 W
Single phase, 85 to 260 V AC, 50-60Hz
2 (3rd and 4th axis on option)
Control software
More than 2000
7110 KB
Serial numbering, date/time tags
Creation from the PC software
Up to 348 characters, 48 x 48 cells
Arial, Courier, OCR and OCRA
Angular, Radial, Inverted and Mirror
Up to 5 characters per second
From 0.1 mm to 99 mm
9 levels
Up to 0.5 mm
0.05 mm
Up to 8 mm
Maximum 10
3 security levels
Password protected
Self-Diagnostic component
17
RS232, RS422, USBx2, RS485, Profibus and Ethernet on option
16
USB
5V-0.5A and 24V-0.5A
Creation and transfer software
PC software or USB memory stick
Option
Options

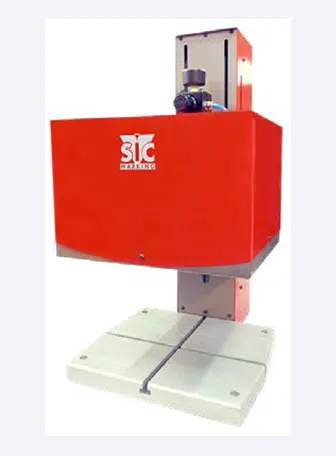

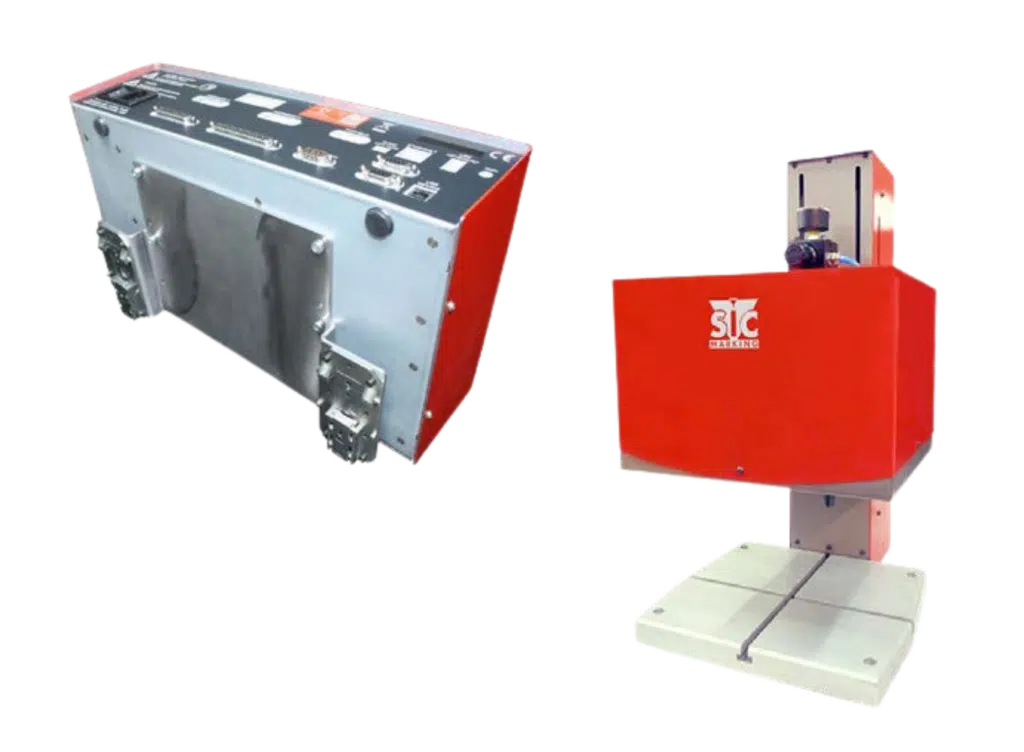

STRENGTHENED COLUMN BASE FOR SCRIBING AND DEEP DOT PEENING MACHINE
COMMUNICATION BOARDS
E10 R CONTROLLER
