E-Smart dot peen machine for automated lines, all-in-one dot peen engraver

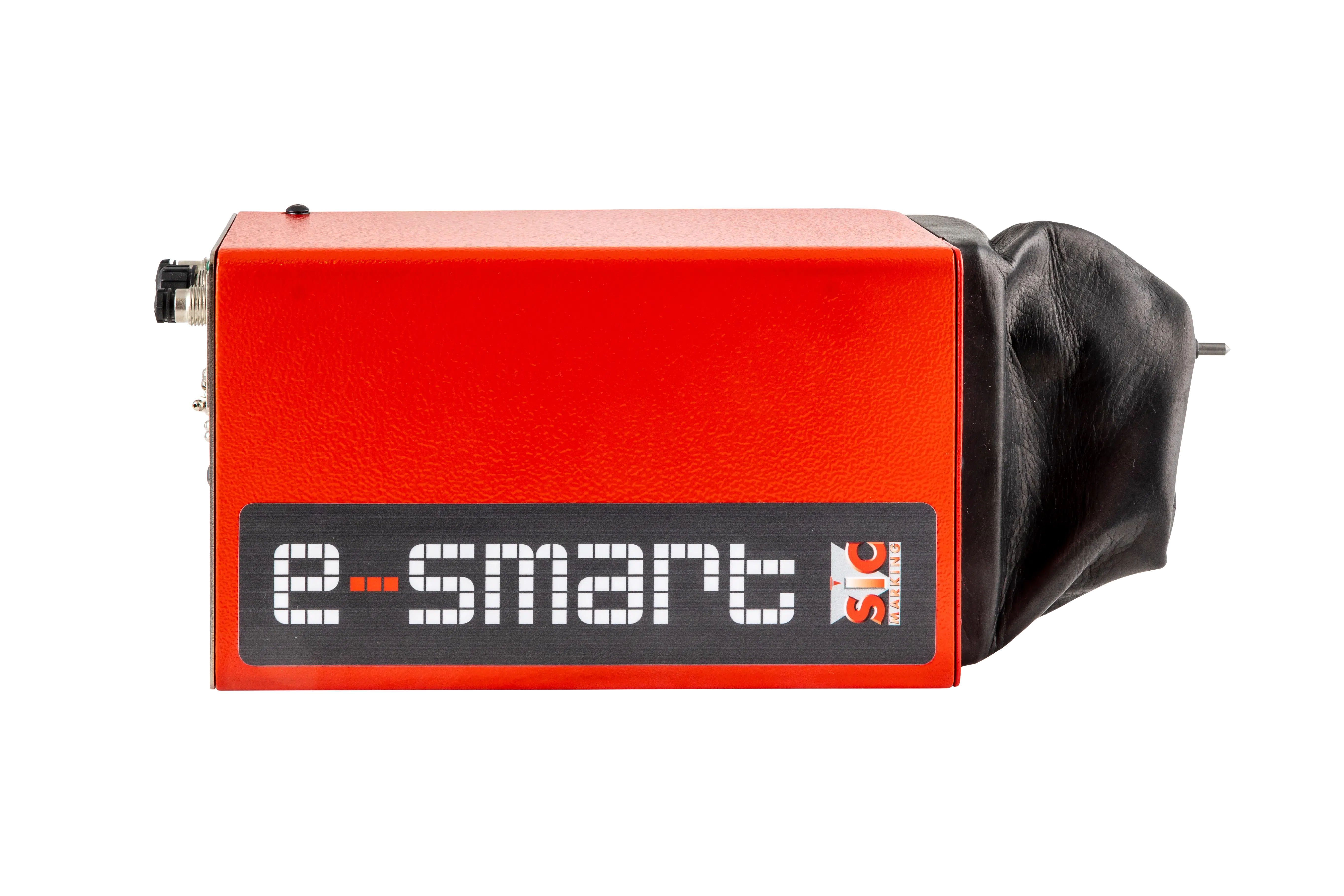

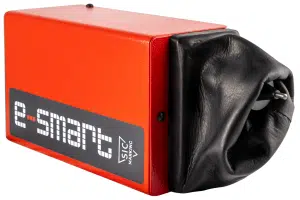

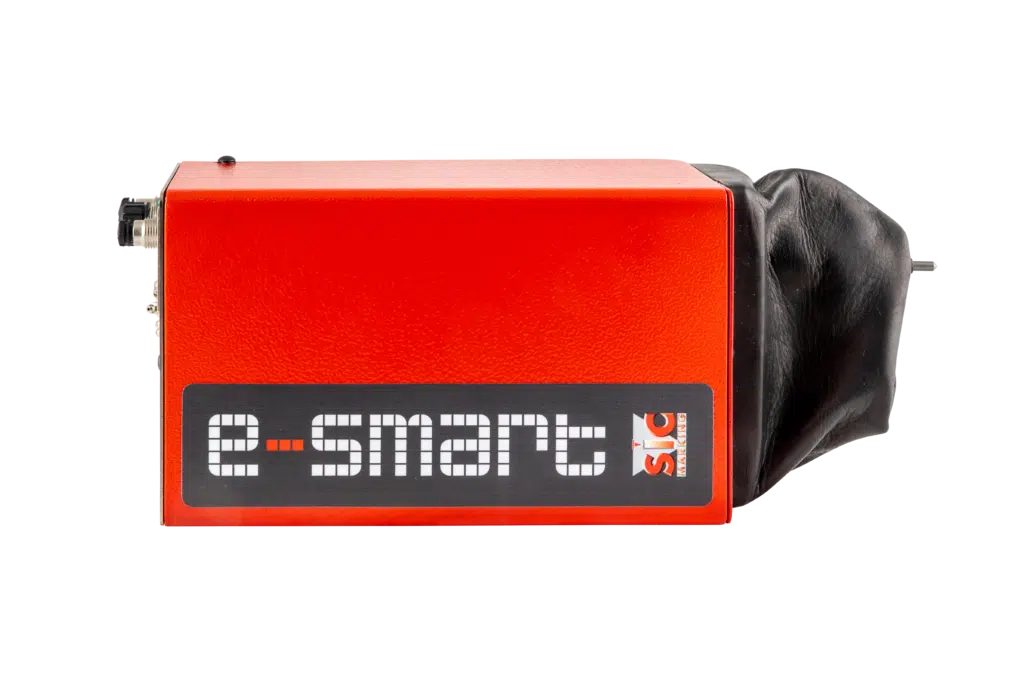

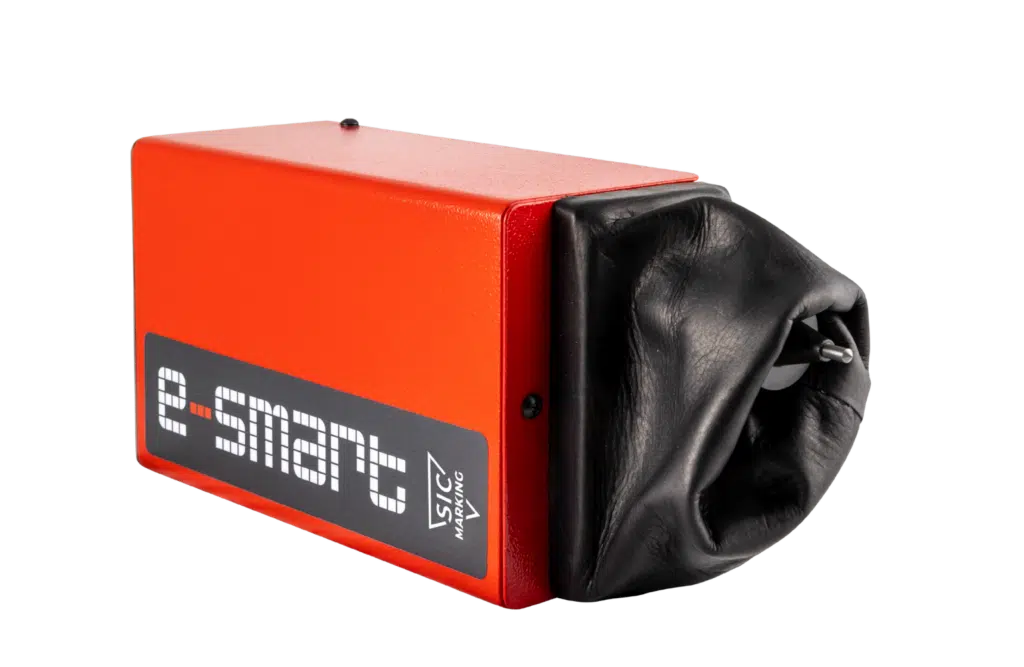

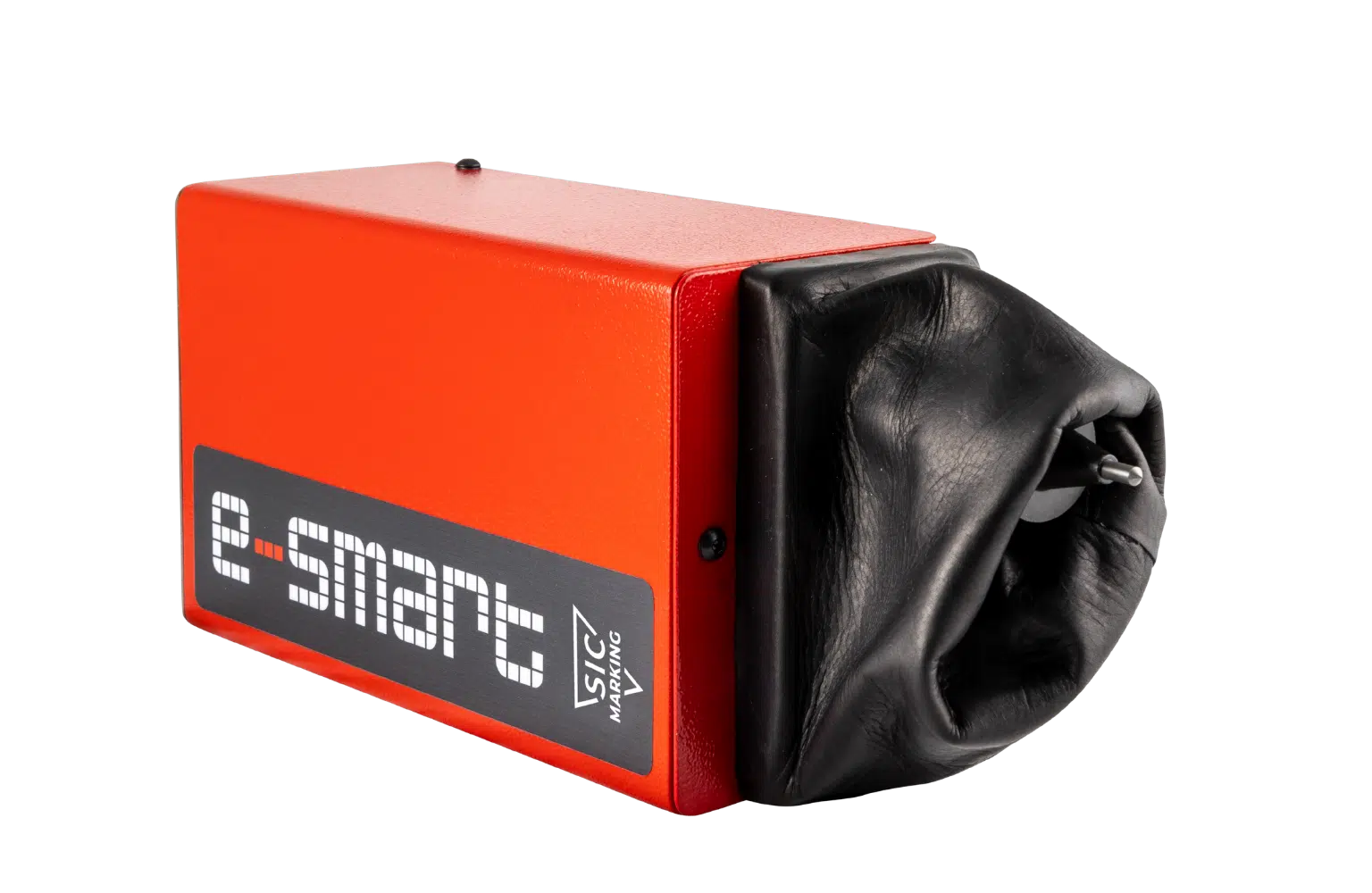

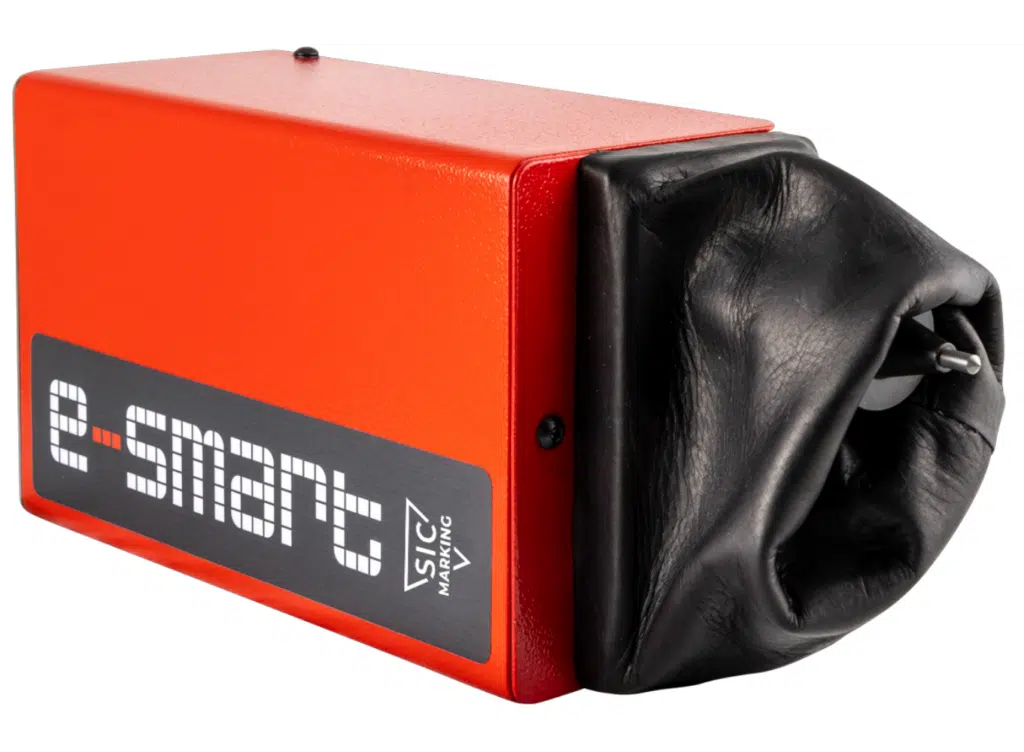

The E-SMART is an electro-magnetic dot peen marking machine that can be integrated into a production line.

The E-SMART marking machine is ALL-IN-ONE.
It is designed to be easily integrated in an industrial environment, with its electronic controller integrated to the marking head.

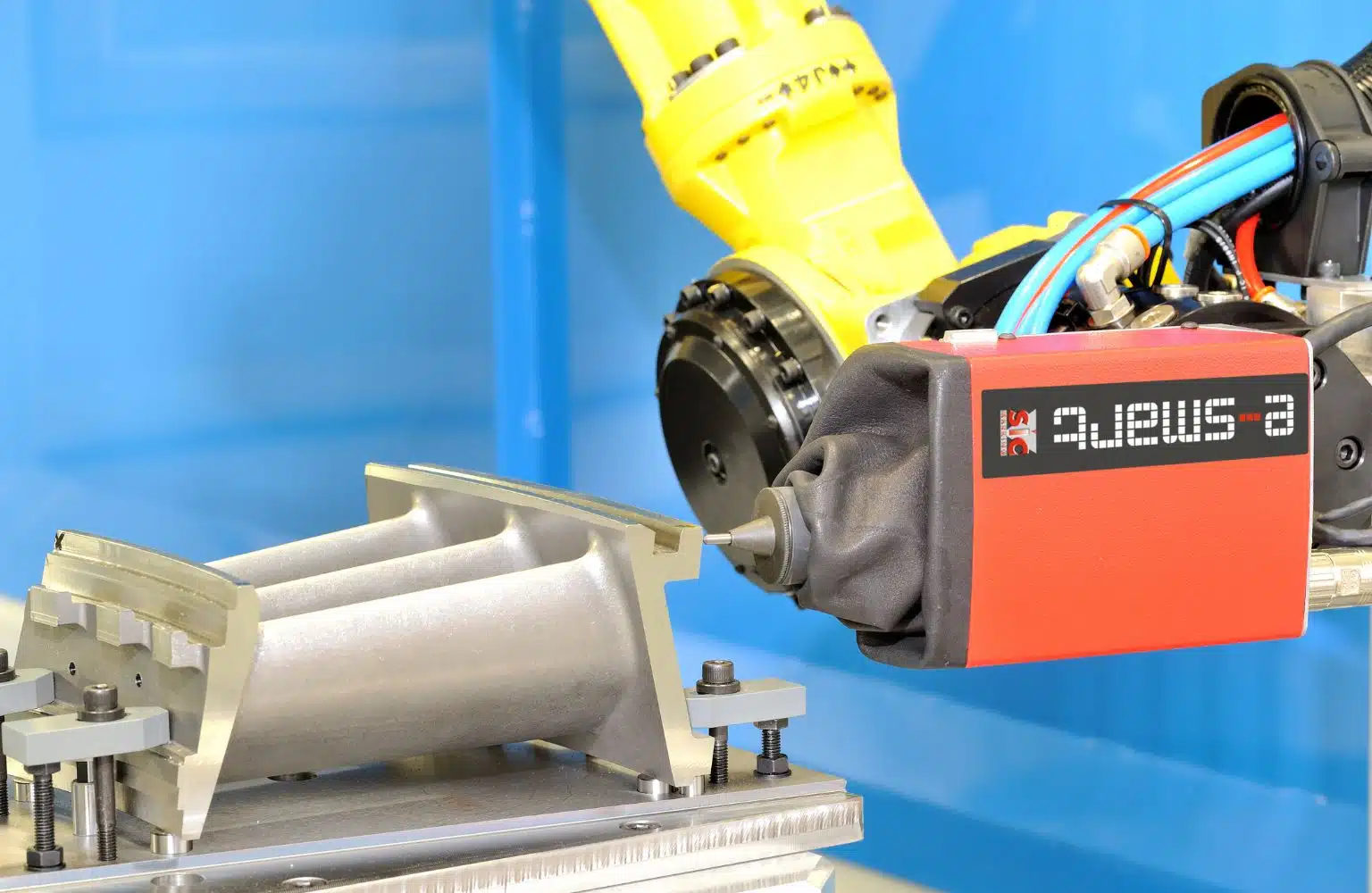

It can be installed in A PRODUCTION LINE, in A ROBOTISED CELL OR CNC MACHINE.

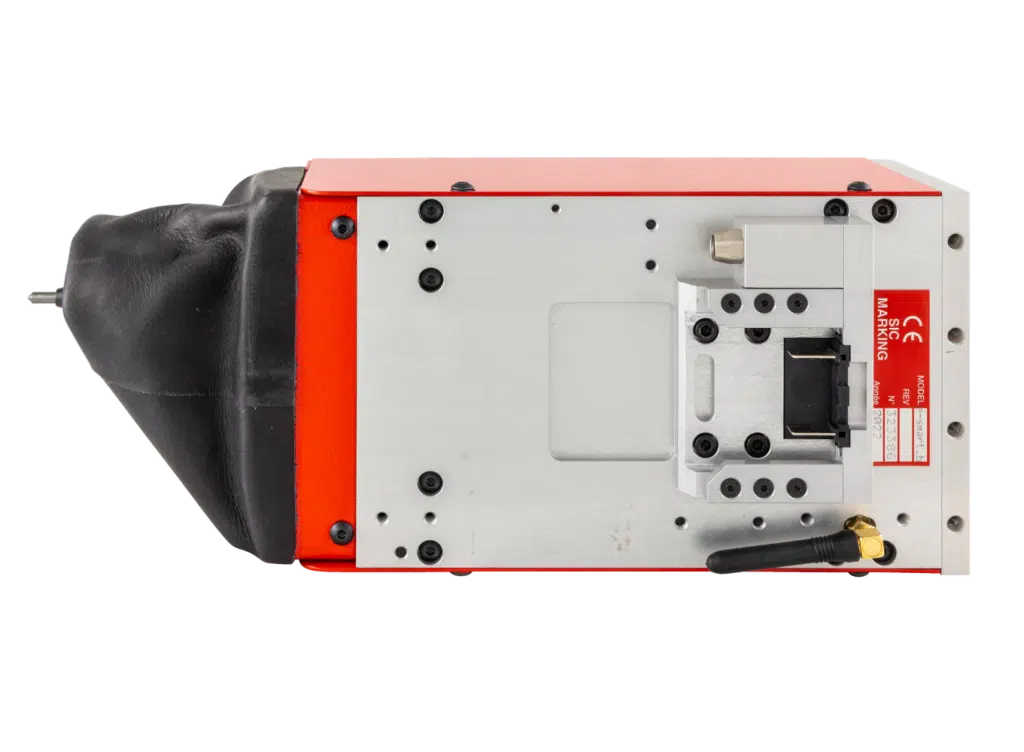

Its cast alloy ROBUST STRUCTURE is protected by leather bellows, designed to resist projections and metal particles, etc.

It provides VERY FAST PERMANENT MARKING ON ALL TYPES OF MATERIAL, from plastic to hardened steel up to 62 HRC.
It is easy to use and can mark parts of various shapes and different surface conditions.

The E-SMART has a BATTERY OPTION that makes it fully standalone.

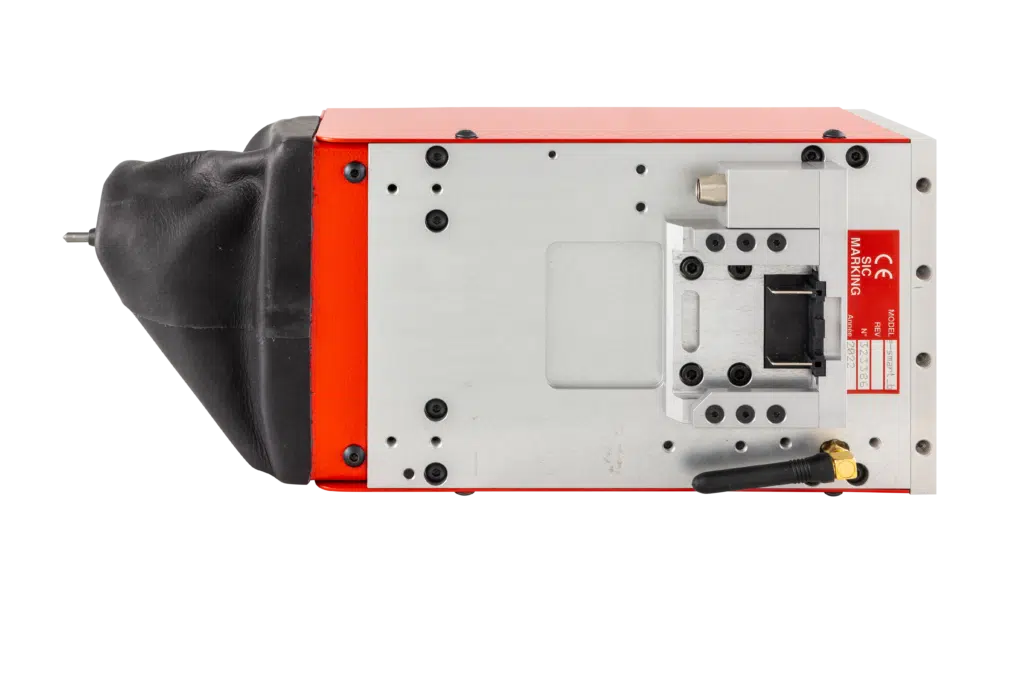

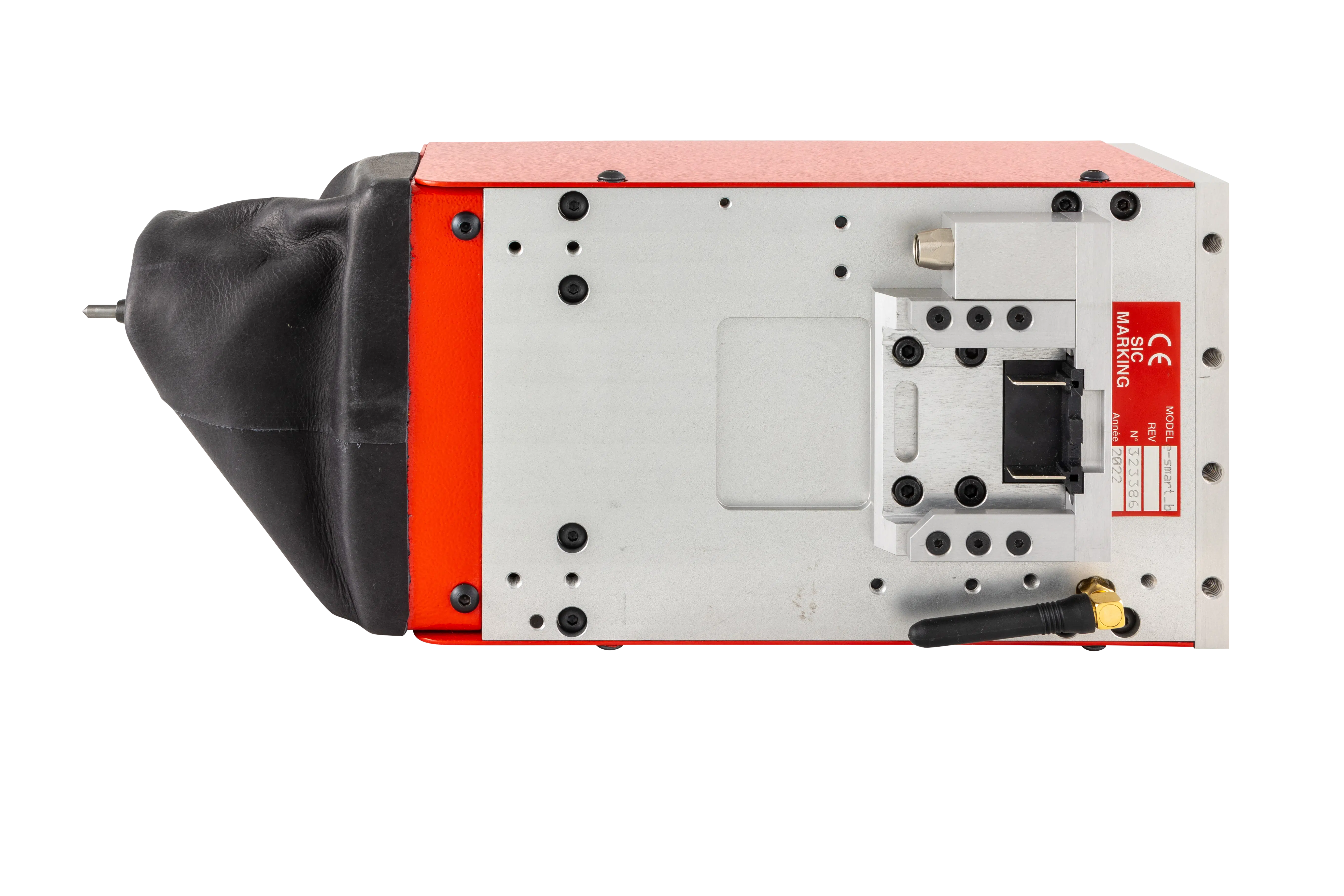

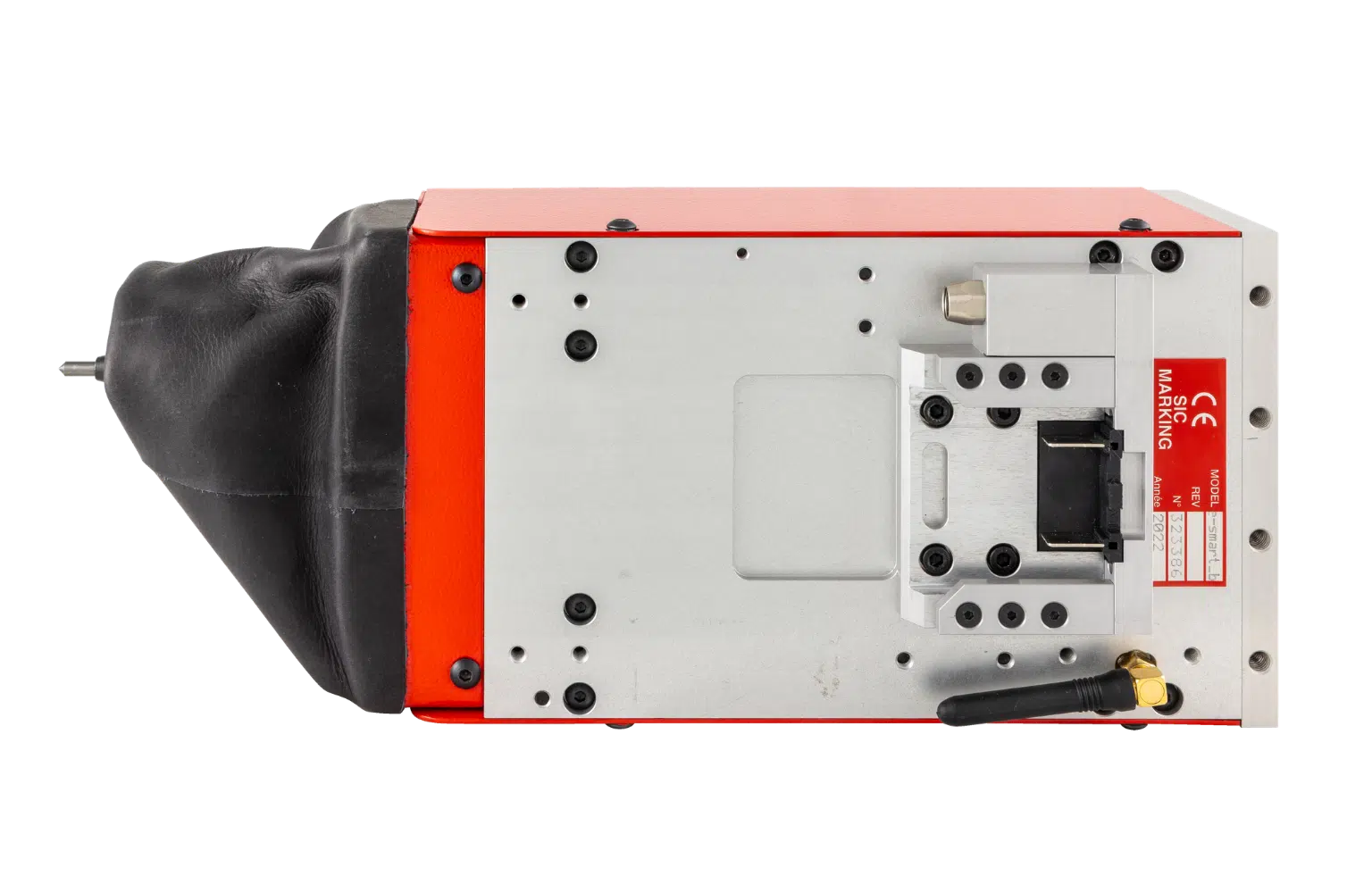

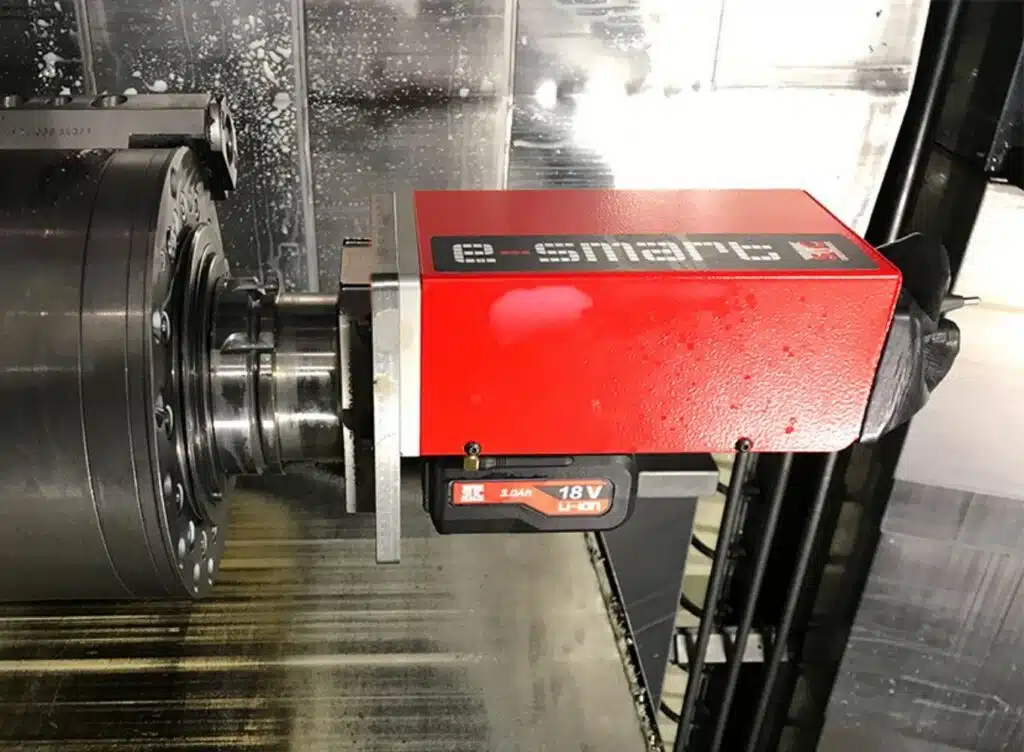

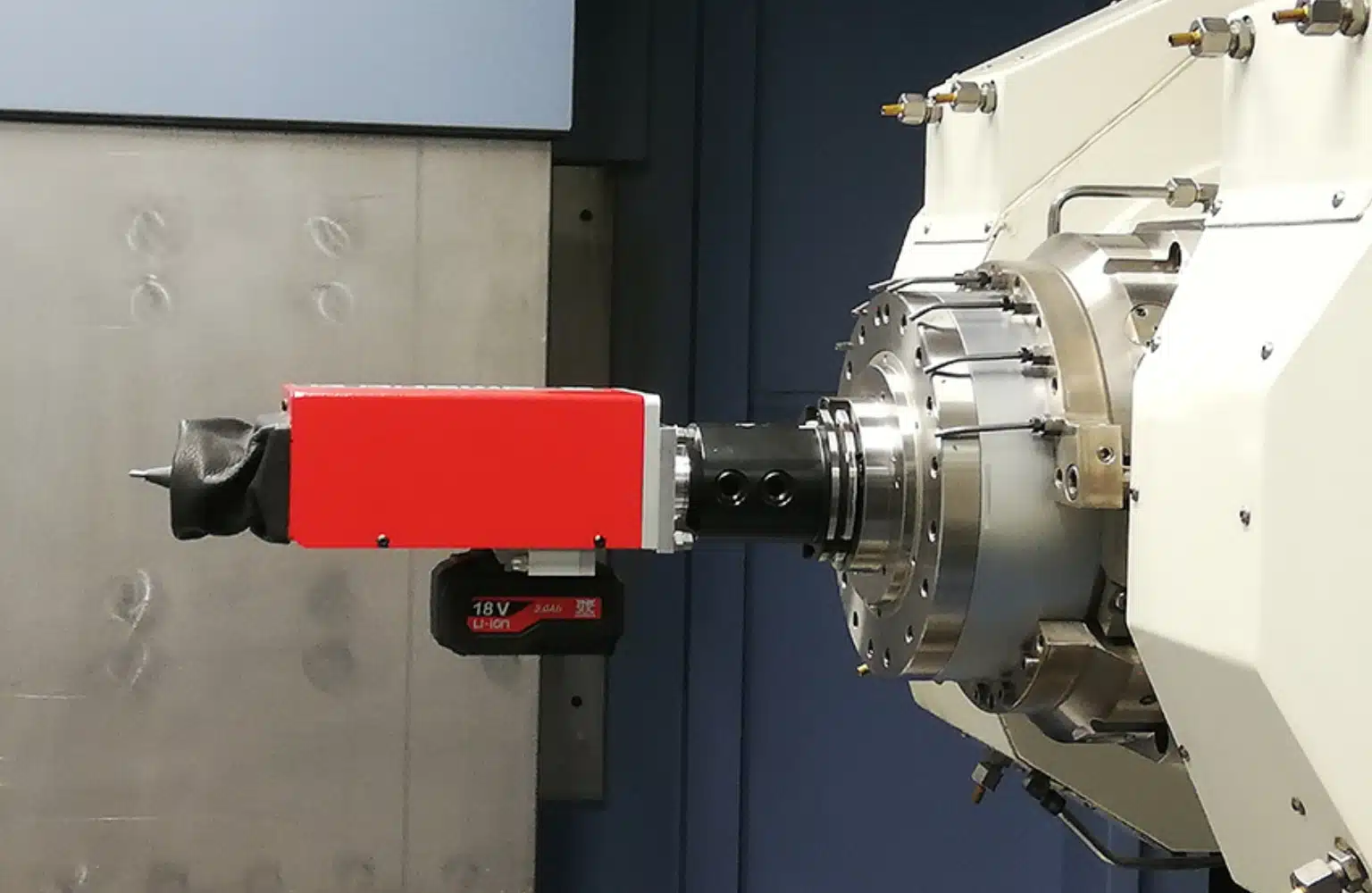

An ADAPTER PLATE then allows any type of tool holder to be installed, for availability in the tool store of a numerical control machining centre.

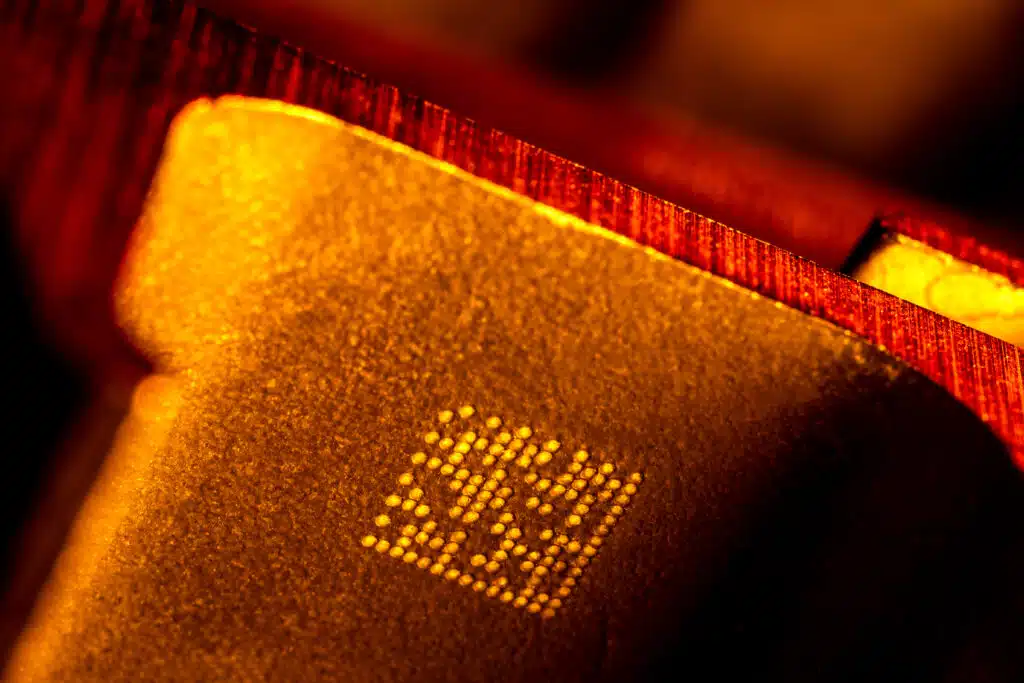

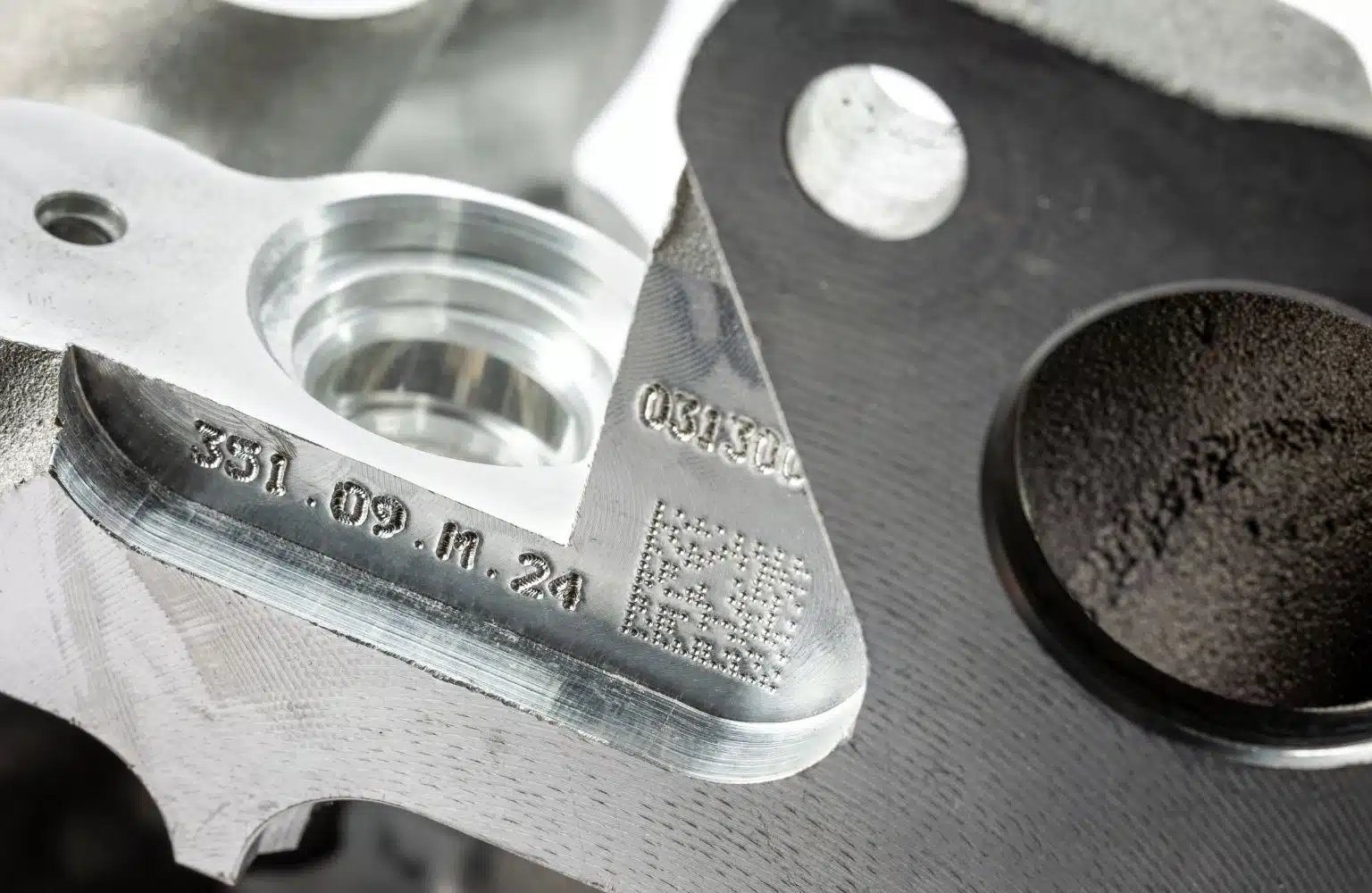

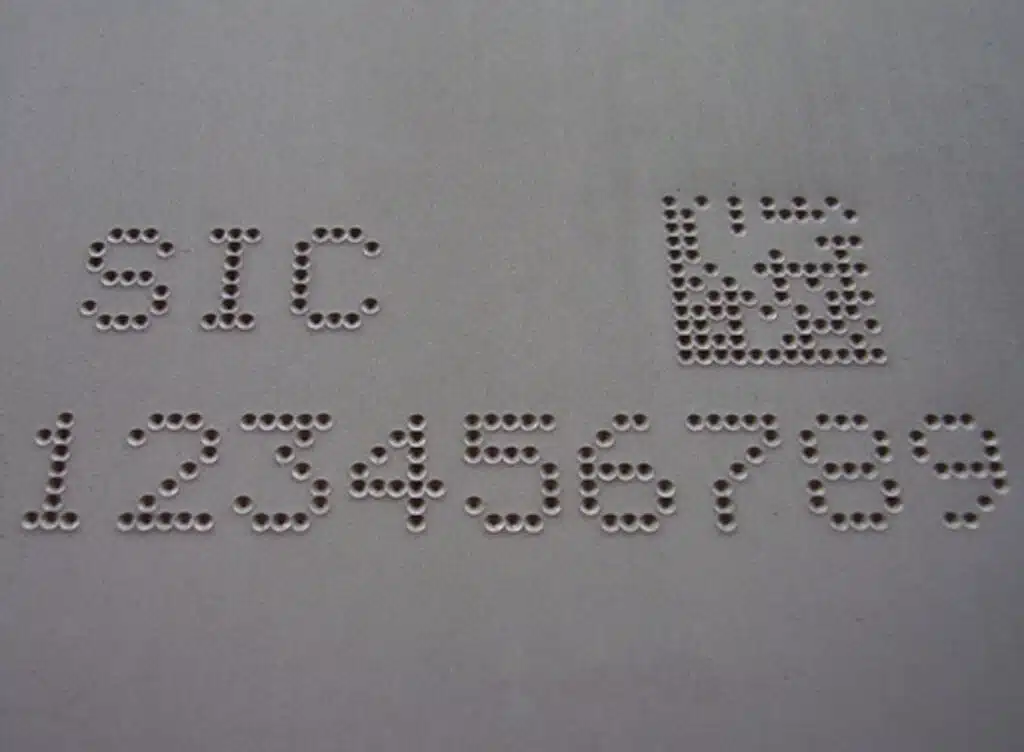

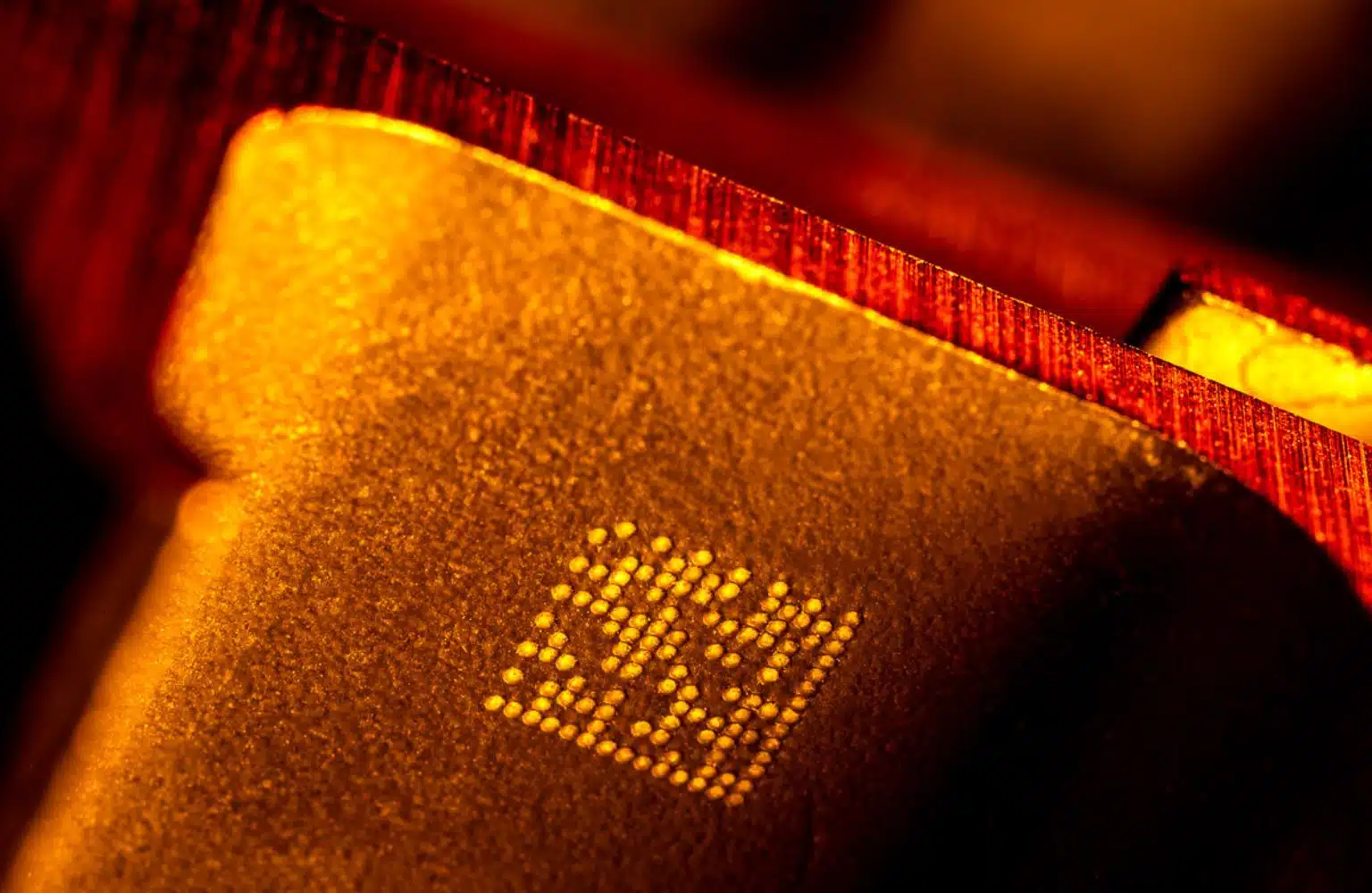

E-SMART marking may be alphanumeric text, a logo, or a 2D Datamatrix code.

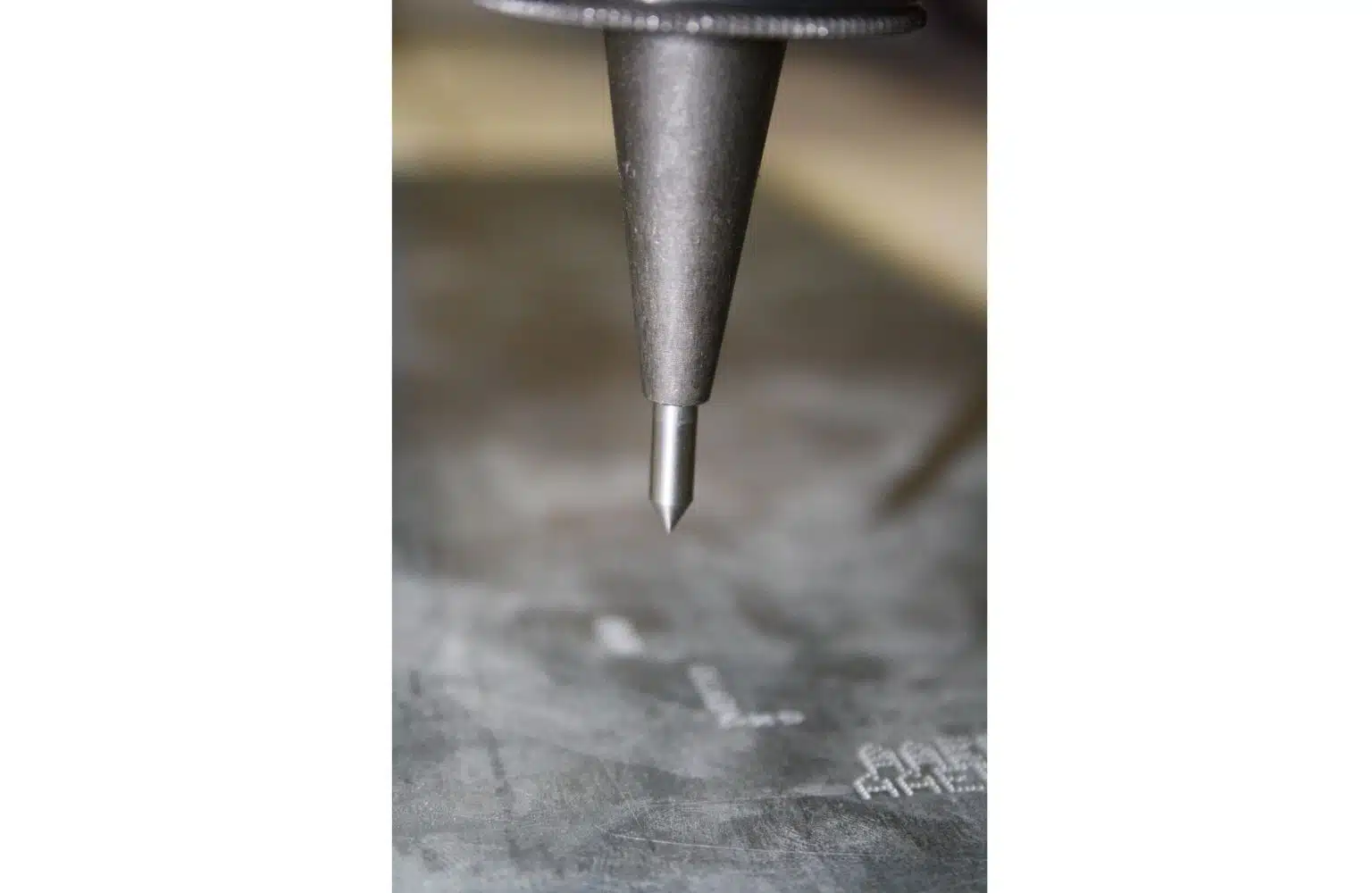

Dot peen technology provides reliable and permanent marking directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

Marking window	50 x 20 mm
Dimensions	312 x 122 x 88 mm
Weight	3,5 kg

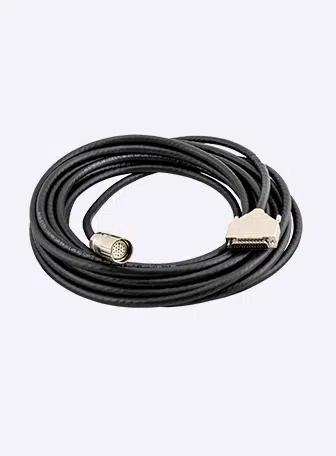

Connection cable	5 m, 10 m on option
Stylus	Carbide 60 mm
Protection bellows	Leather

The maintenance kit is an essential accessory to ensure the durability and proper functioning of the machine. It includes all the consumables and parts needed to perform maintenance operations in complete autonomy, without having to call a technician.

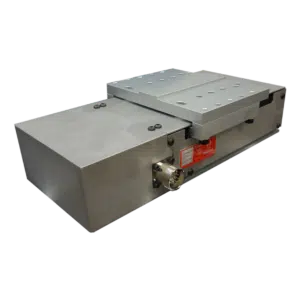

The digital Z-axis allows the marking head to access hard-to-reach areas or mark a part on several levels in the same cycle. This option is available in different approach strokes: 50, 100 and 250 mm.

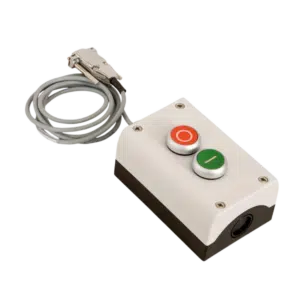

This button box is equipped with two push on/off buttons and a file selector. There is the possibility to select four files. It allows you to start a cycle manually.
