Marking machine

C 153 ZA

Fast and precise
Motorised Z axis with an integrated brake
Several marking levels
Macchina di Marcatura C153 Za con Asse Z
Description

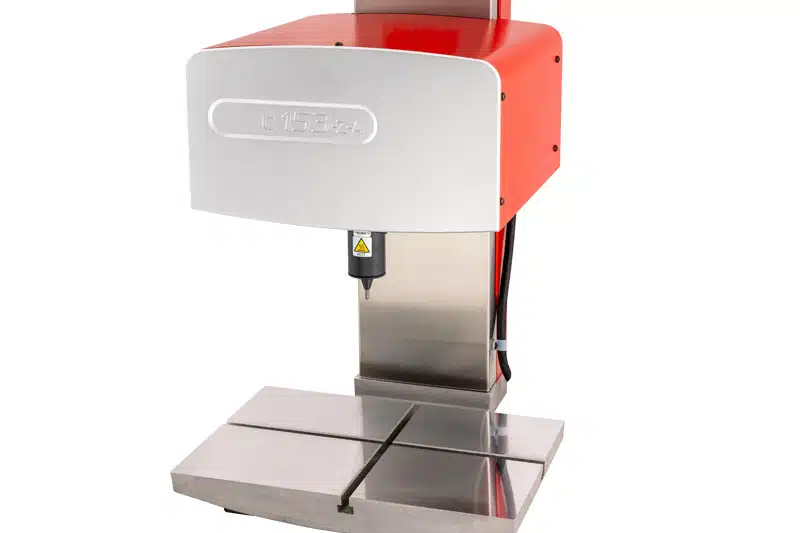

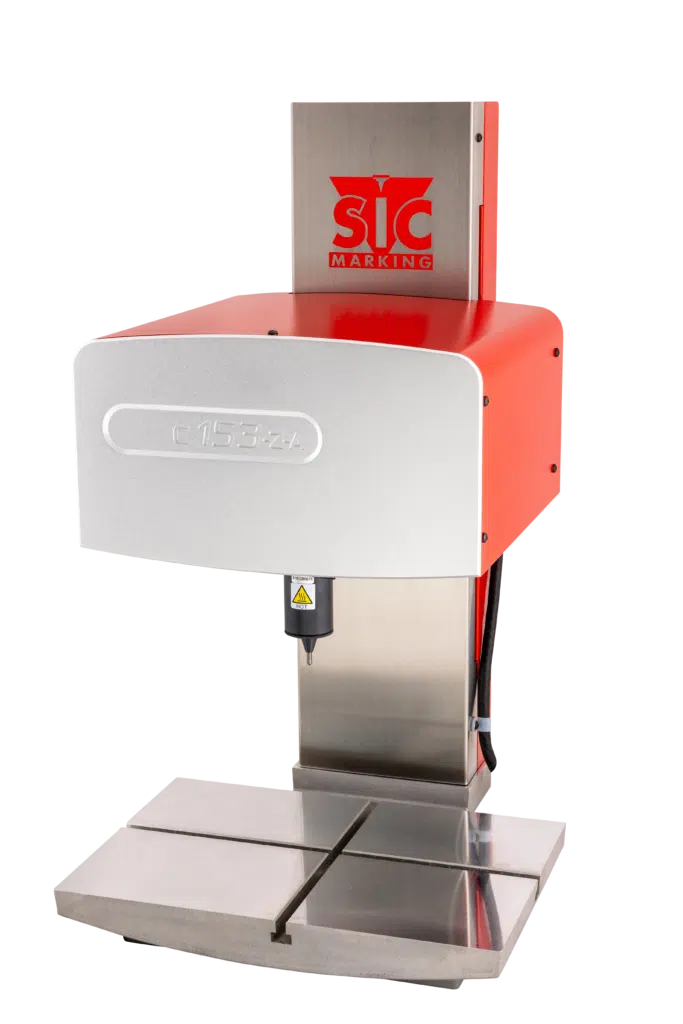

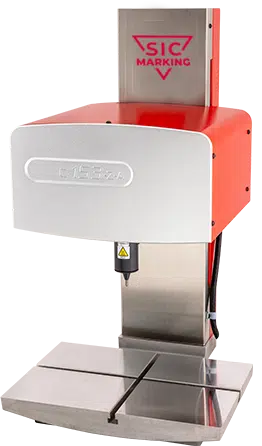

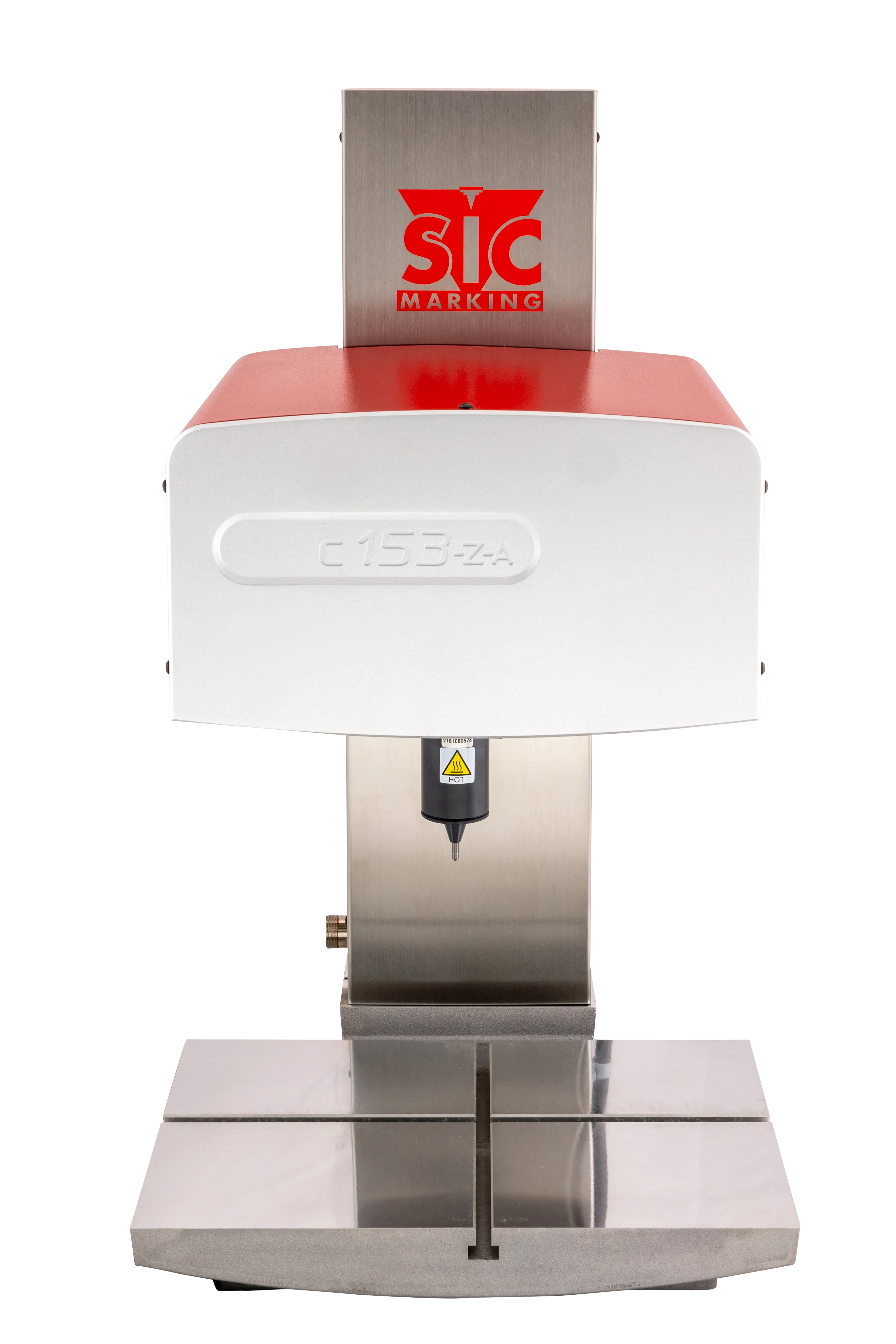

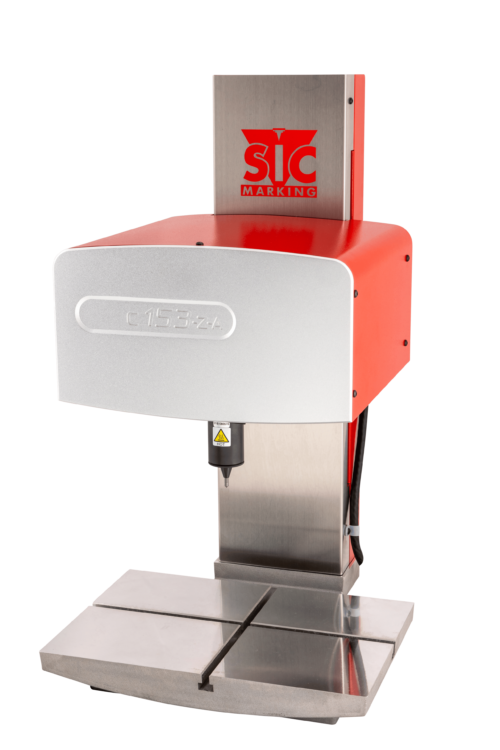

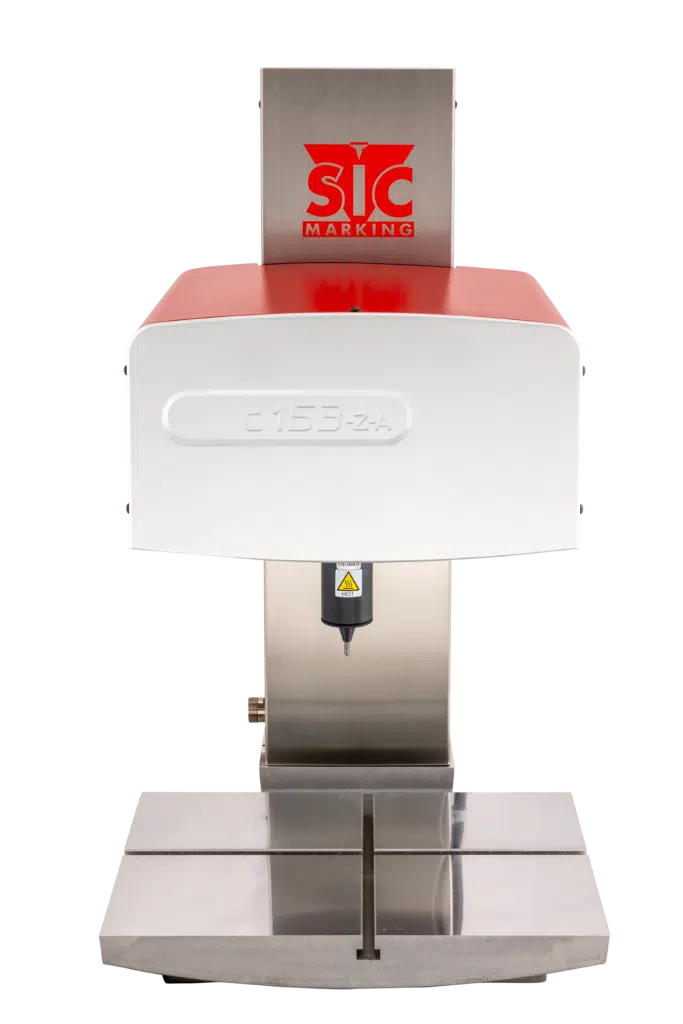

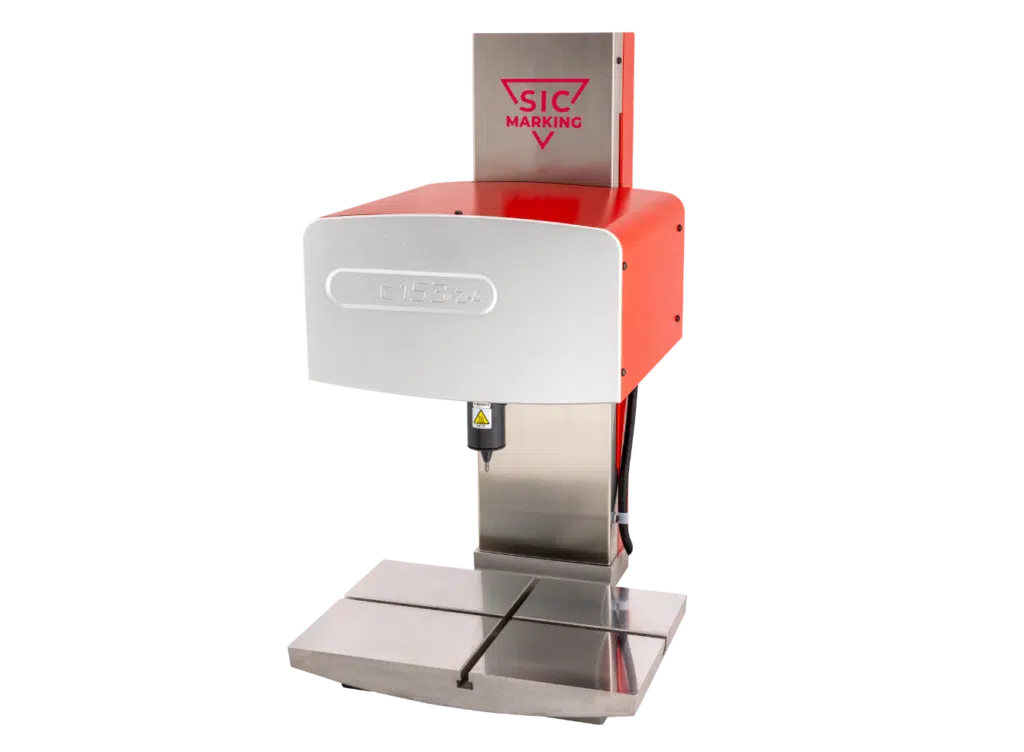

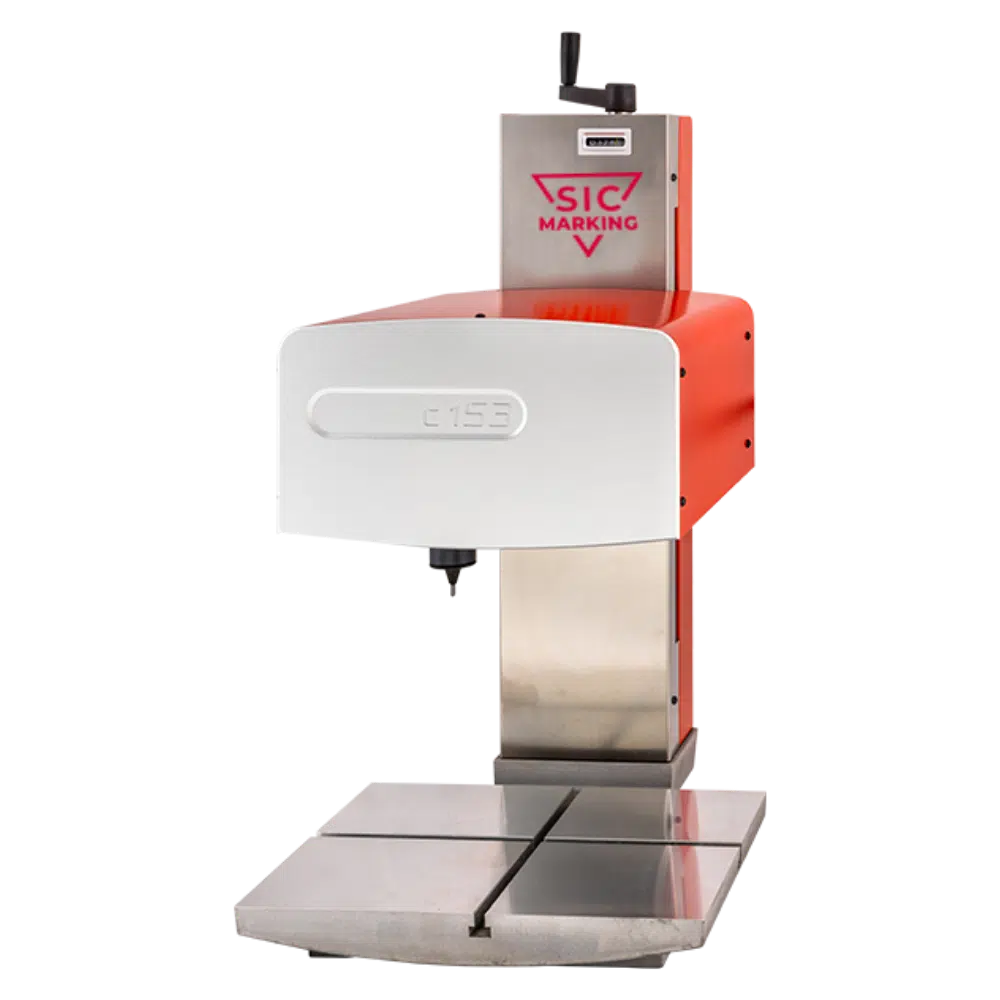

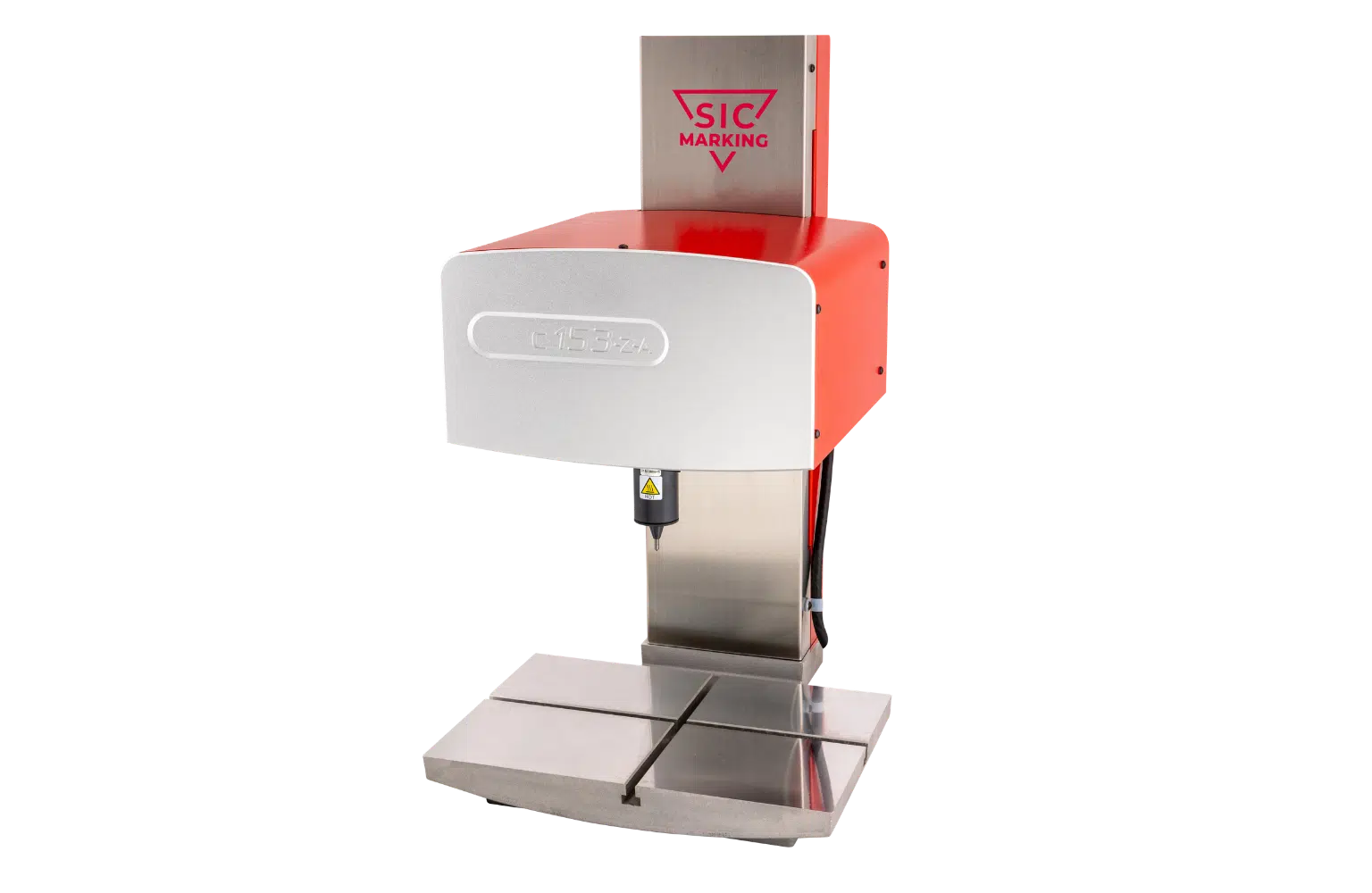

The C153 ZA is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE, i.e. a machine that slides on a vertical axis to adjust the position of the marking head.
It is ideal for marking small or medium sized parts, which are placed directly beneath the marking head.

The C153 ZA is a fast machine, designed for intensive use.

This machine is particularly robust with a cast alloy base and a strengthened column.

The C153 ZA has a LARGE MARKING WINDOW (160x100mm) and can precisely mark ALL TYPES OF MATERIAL, from plastic to steel hardened to 62HRC.

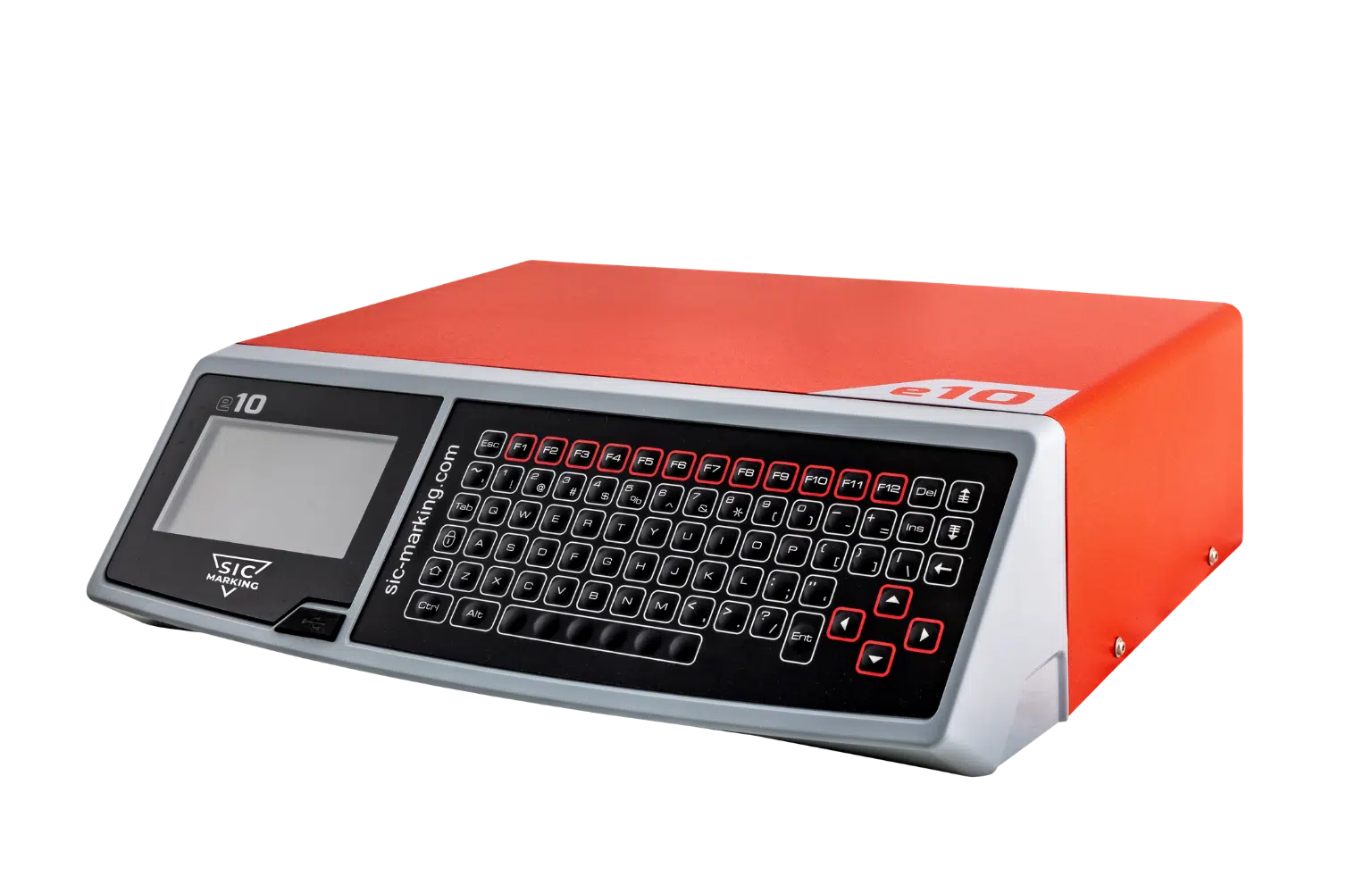

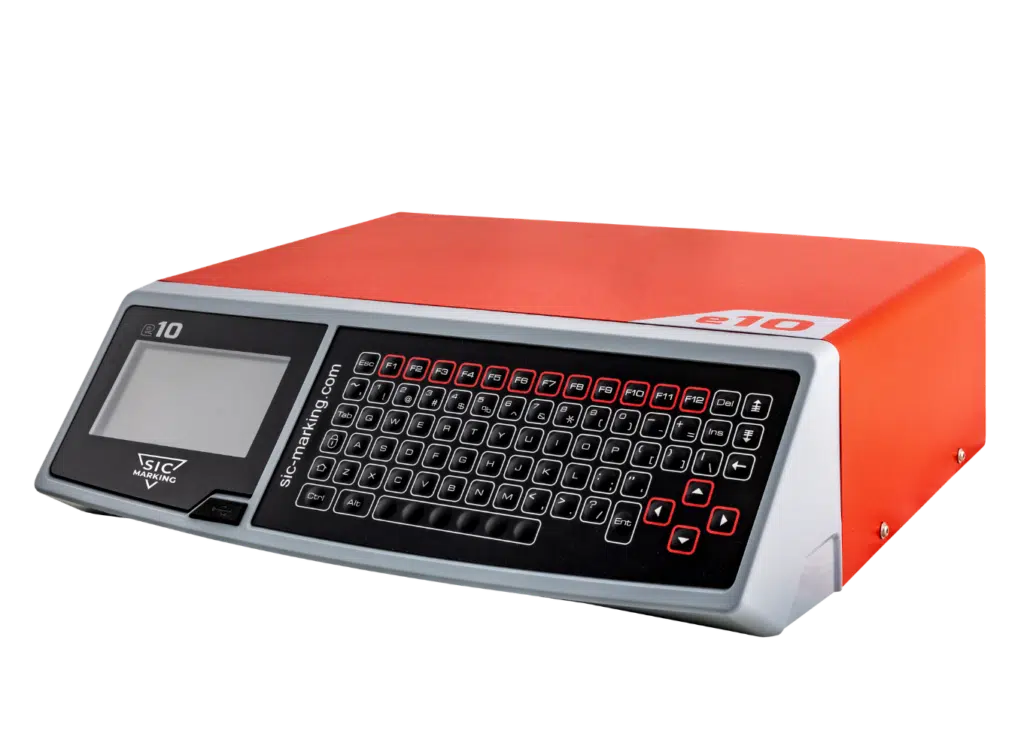

The E10 CONTROLLER that controls the C153 ZA has a Qwerty keyboard covered by a waterproof membrane and a backlit colour screen that provides the user with a simple and intuitive interface.

Marking files can be uploaded/downloaded to/from the controller, to/from a PC, using a USB memory stick.

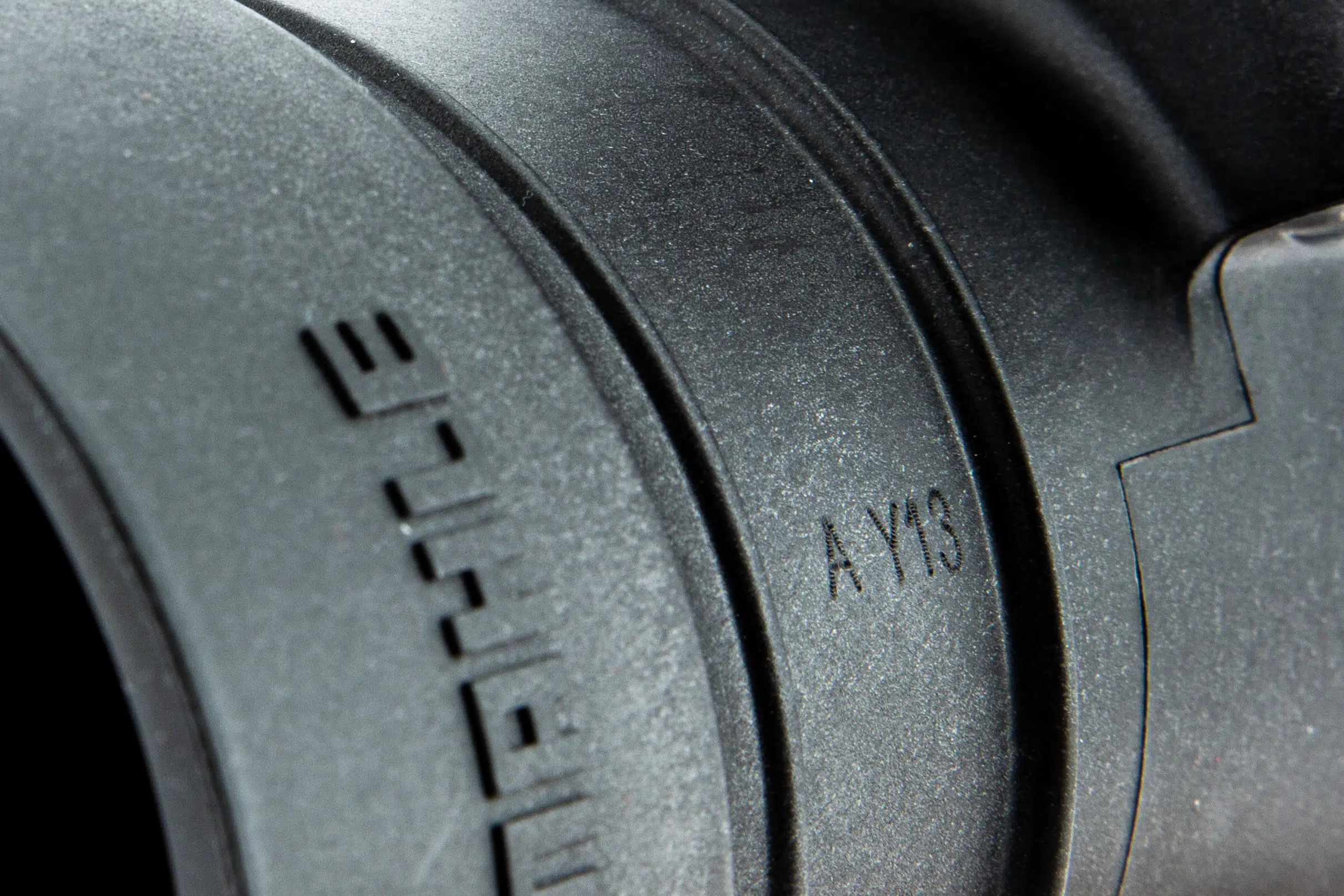

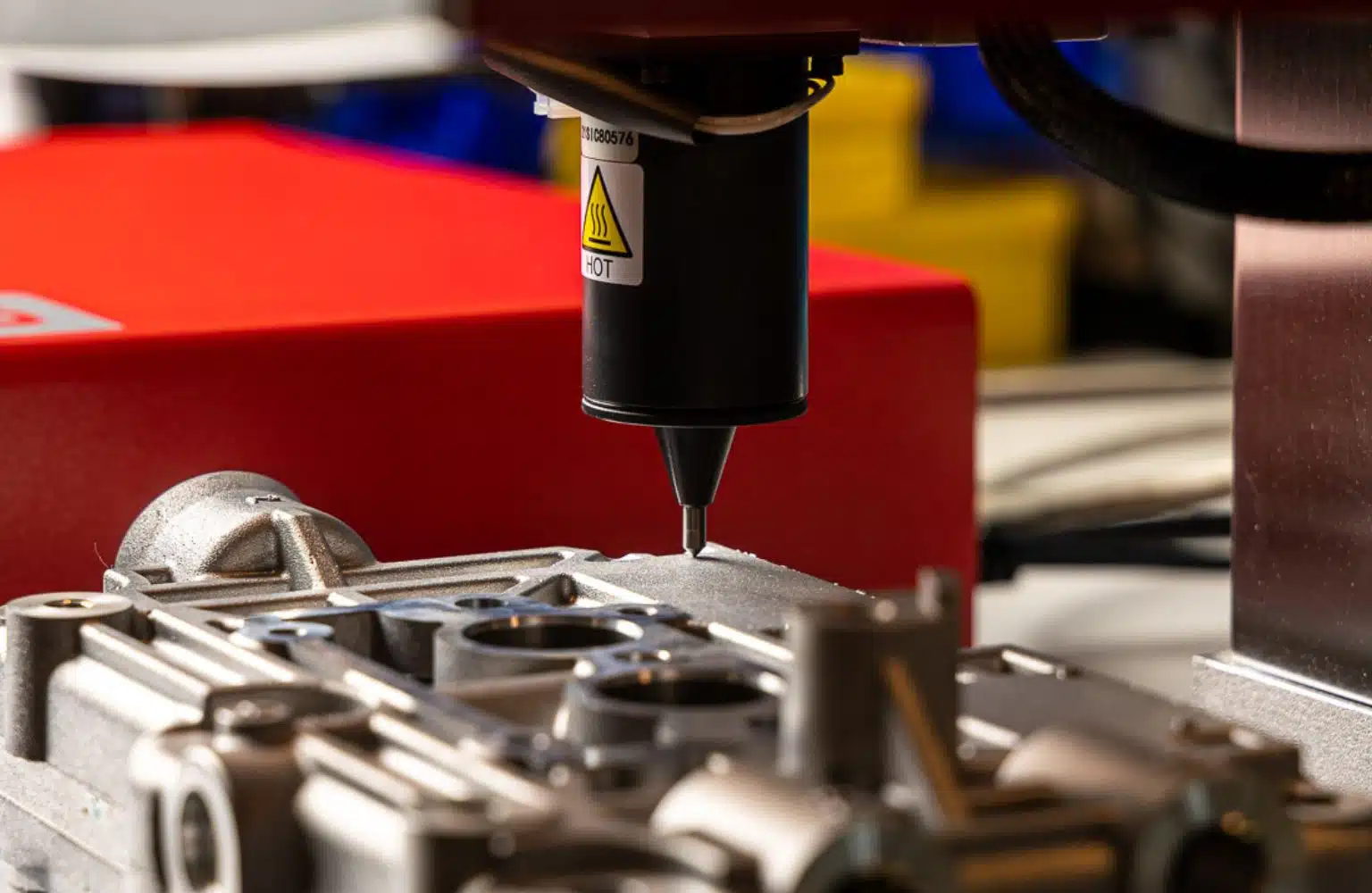

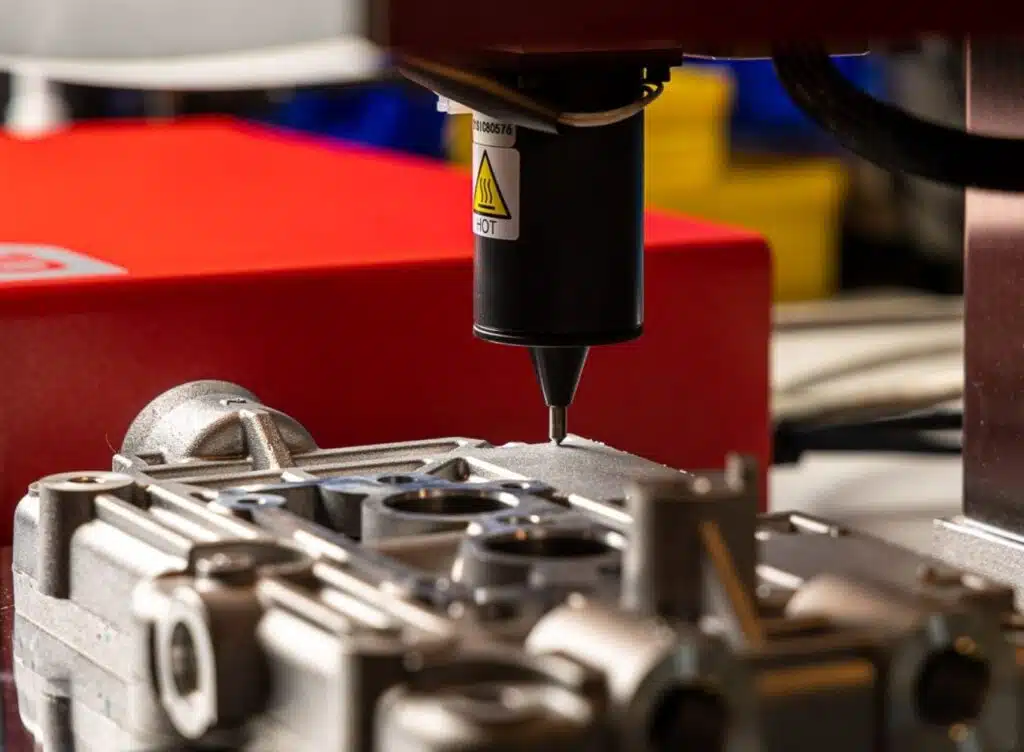

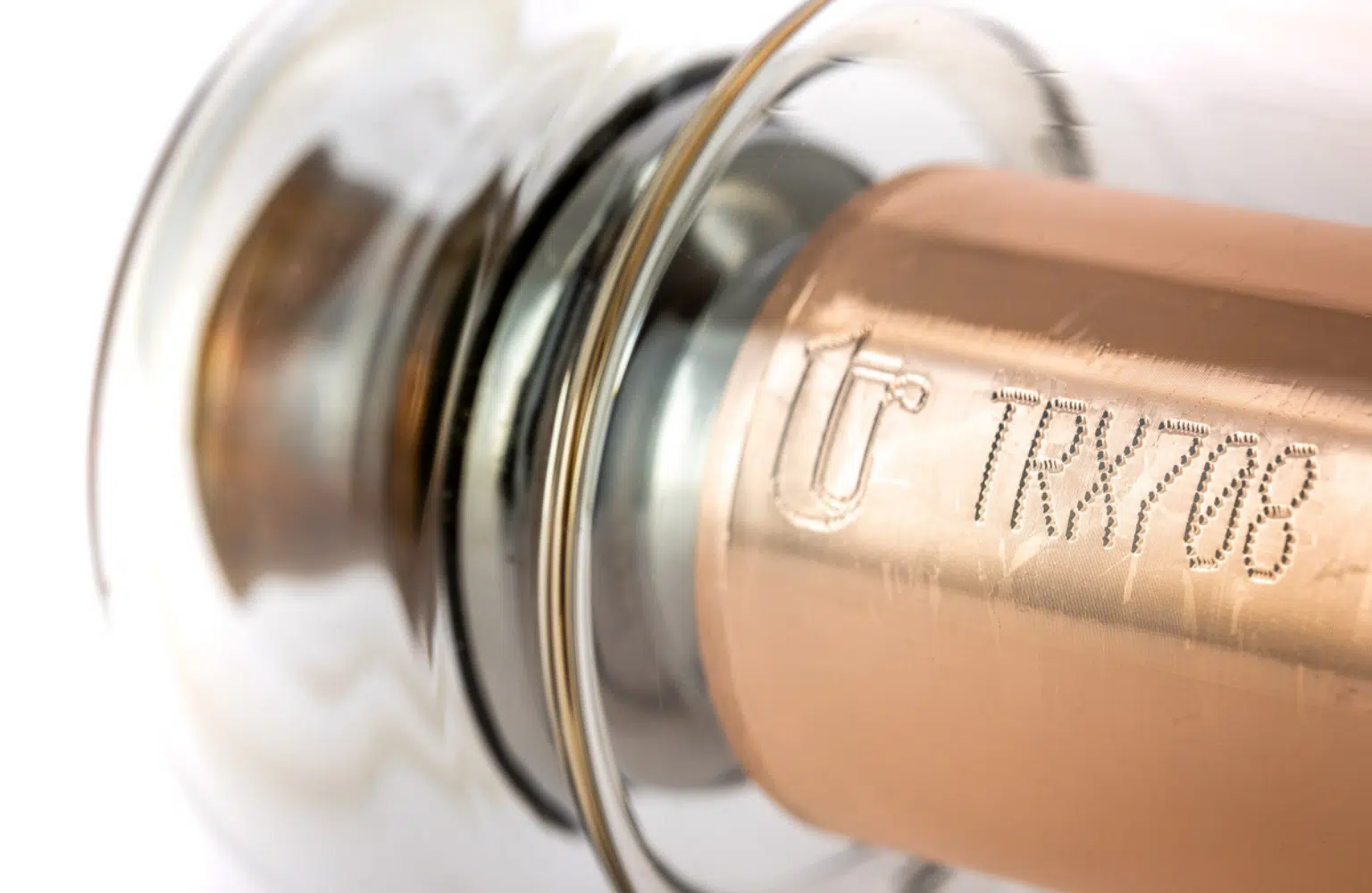

The tungsten carbide stylus deforms the material by creating a series of indents in the surface to be marked. The C153 ZA can also engrave alphanumeric text, logos, 2D Data Matrix codes or QR codes.

Dot peen marking technology with electromagnetic control enables PARTS WITH VARIOUS SHAPES AND SURFACE FINISHES to be marked: plane, concave, convex, circular, raw and machined surfaces.

It only needs an electrical power supply.

Zoom

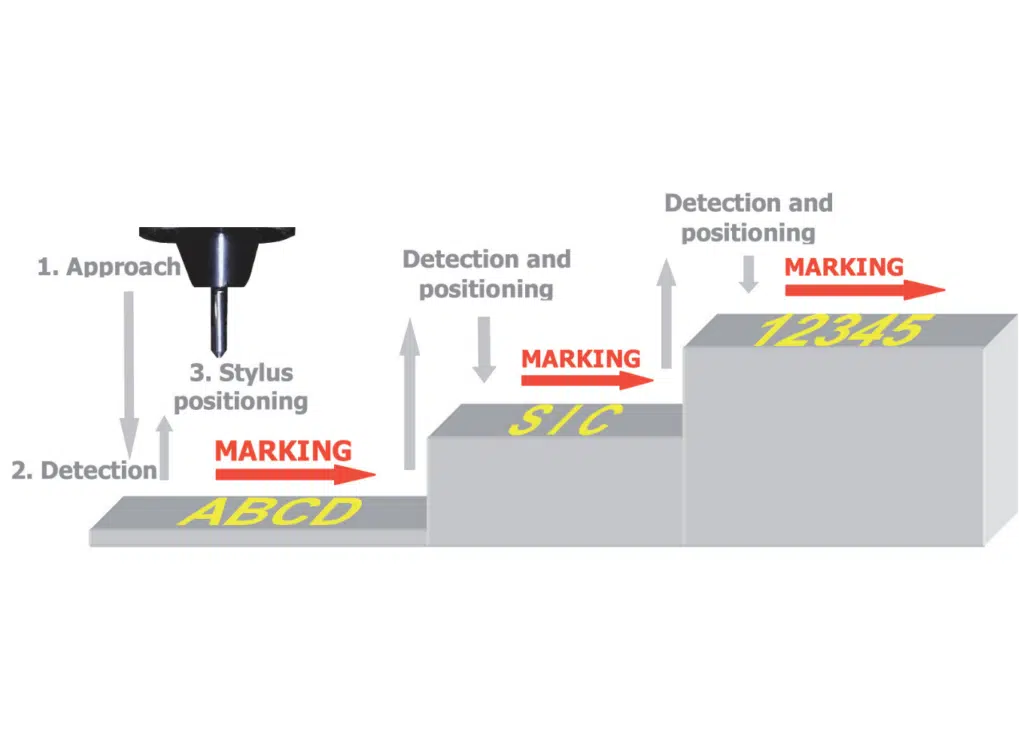

Unlike the C153, this model features a MOTORISED VERTICAL AXIS WITH INTEGRAL BRAKE and an AUTOSENSING system that automatically adjusts the stylus position as a function of the actual piece height, at the start of each cycle.

The “numerical Z axis” also allows a parts to be marked at several levels.

Mechanical specifications

Marking window

160 x 100 mm

Weight

30 kg

Dimensions

385 x 350 x 636 mm

Stylus

Carbide 60 mm

Column travel

250 mm

Z axis speed

30 mm/sec

Electronic specifications

Dimensions

322 x 380 x 112 mm

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 85 to 260 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

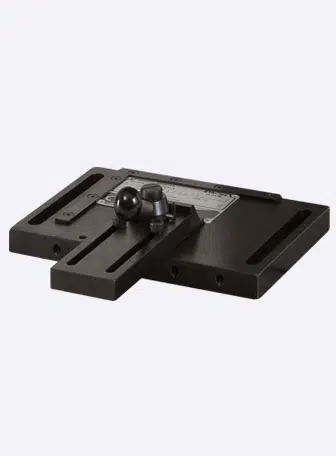

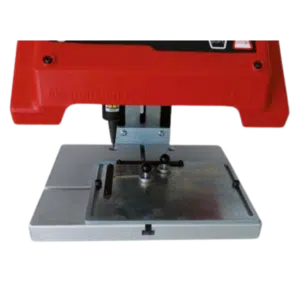

PLATE BRACKET

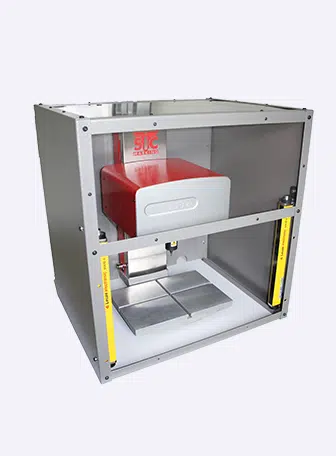

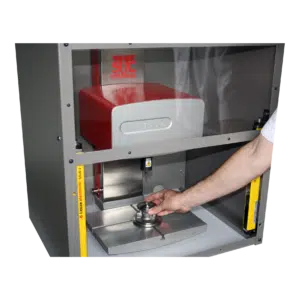

VIRTUAL PROTECTION ENCLOSURE

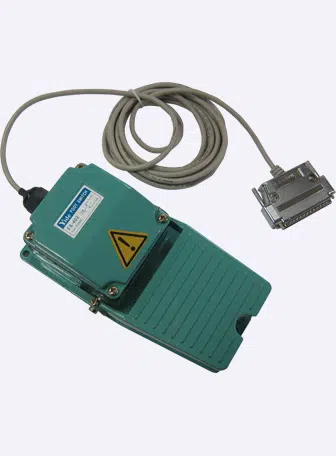

CONTROL PEDAL
