our solutions > workshop range > INTEGRATED DOT PEEN

Marking gun

P 123

Large marking window
Heavy use
Deep marking option
Pistola di Marcatura a Micropercussione P123
Description

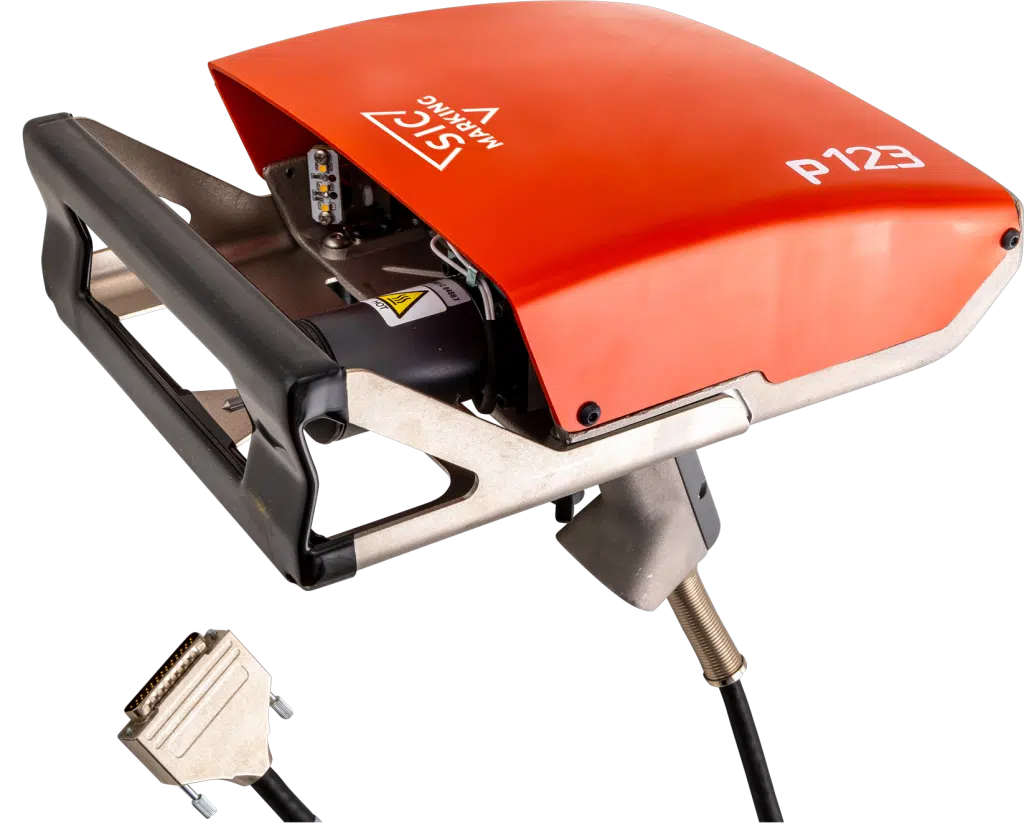

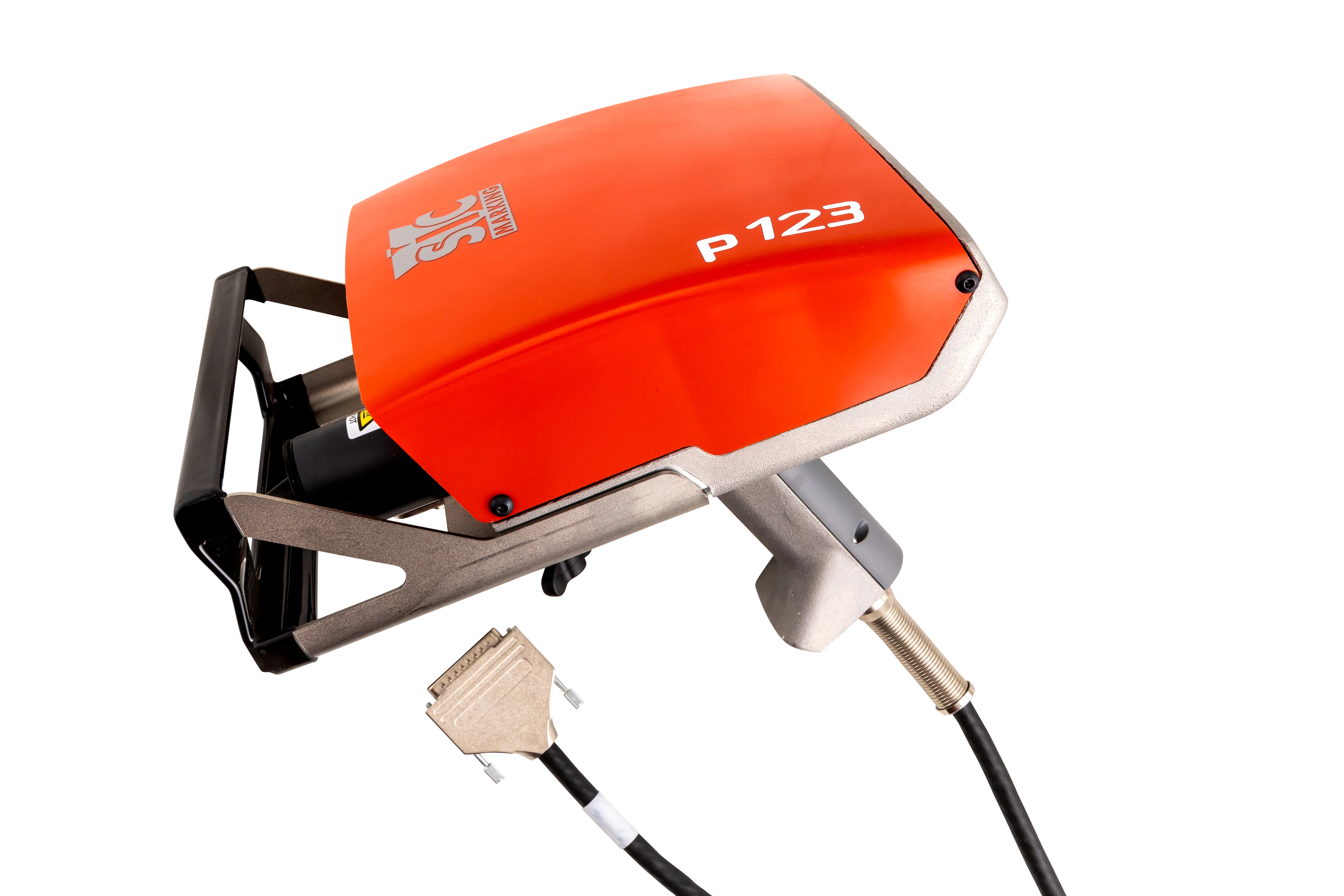

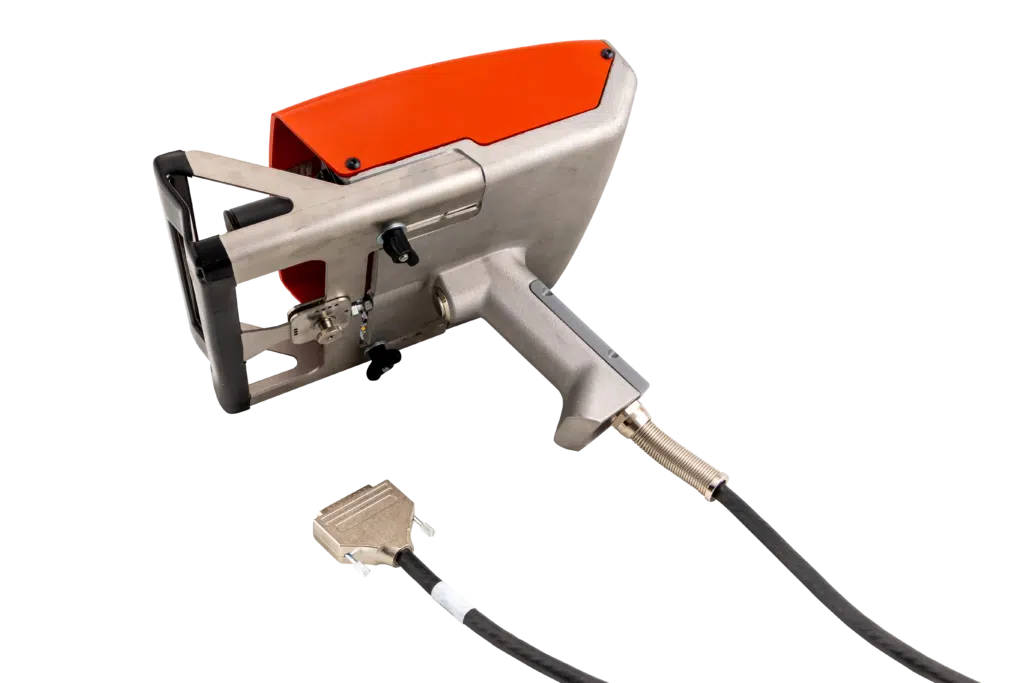

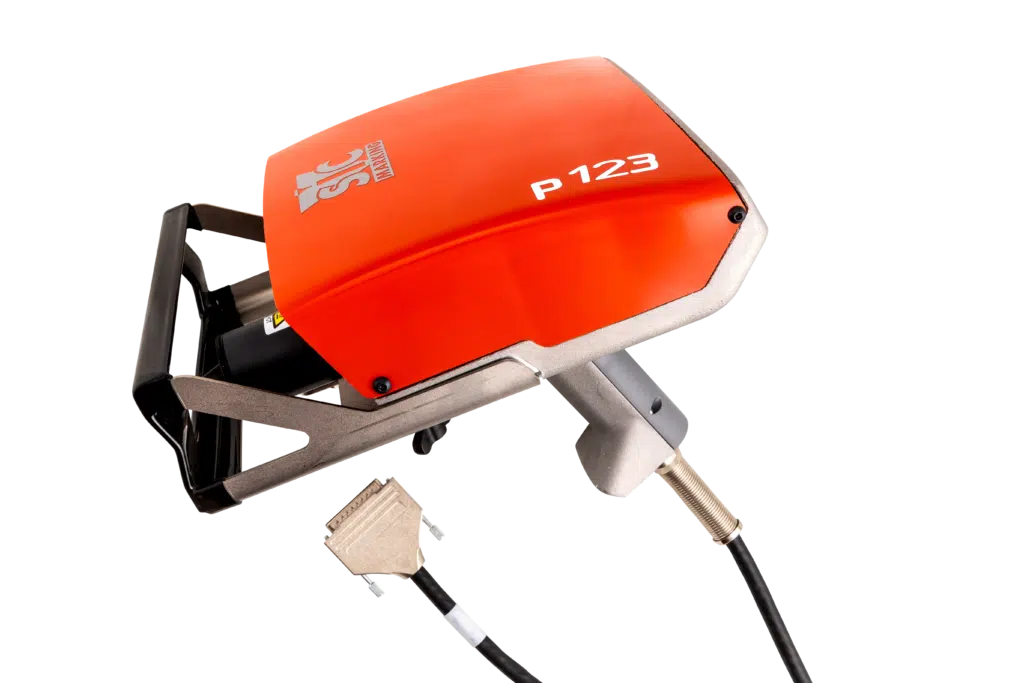

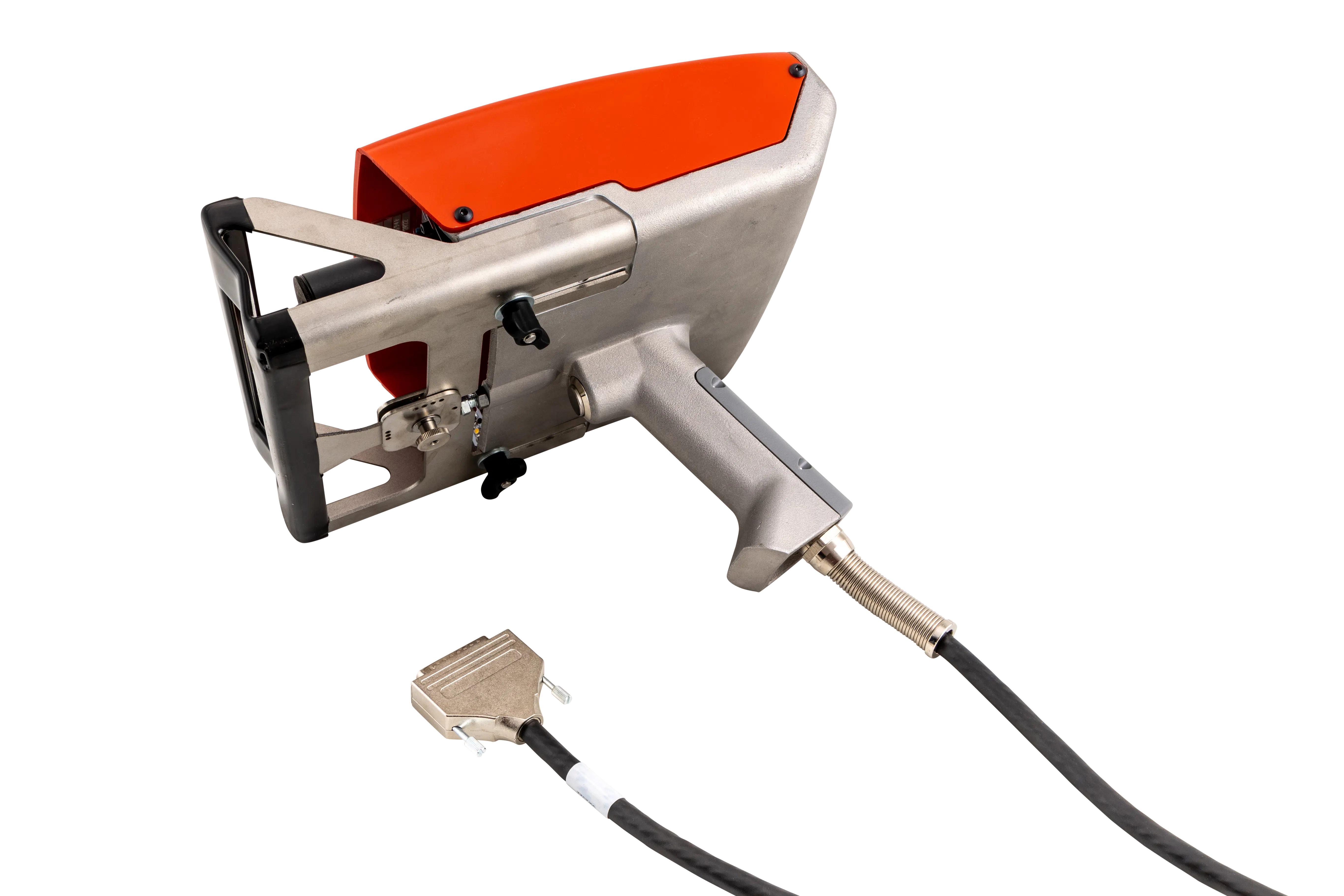

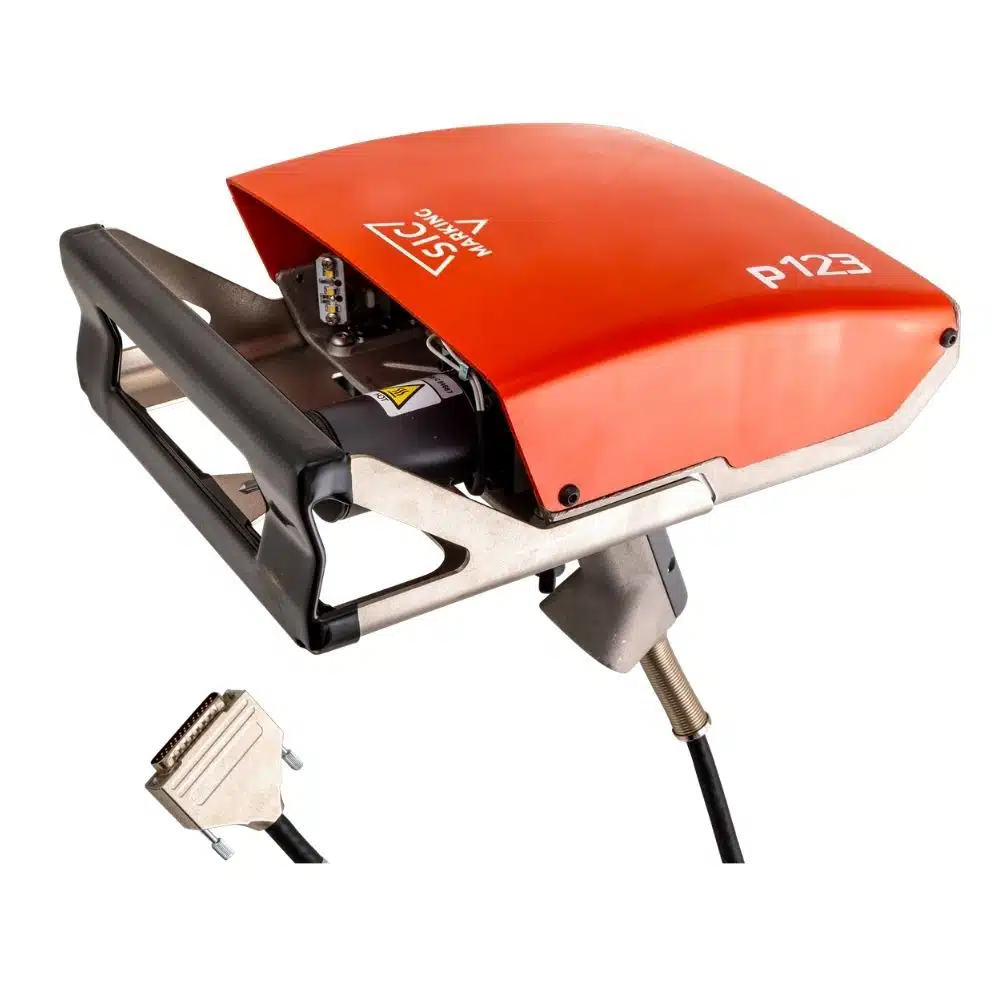

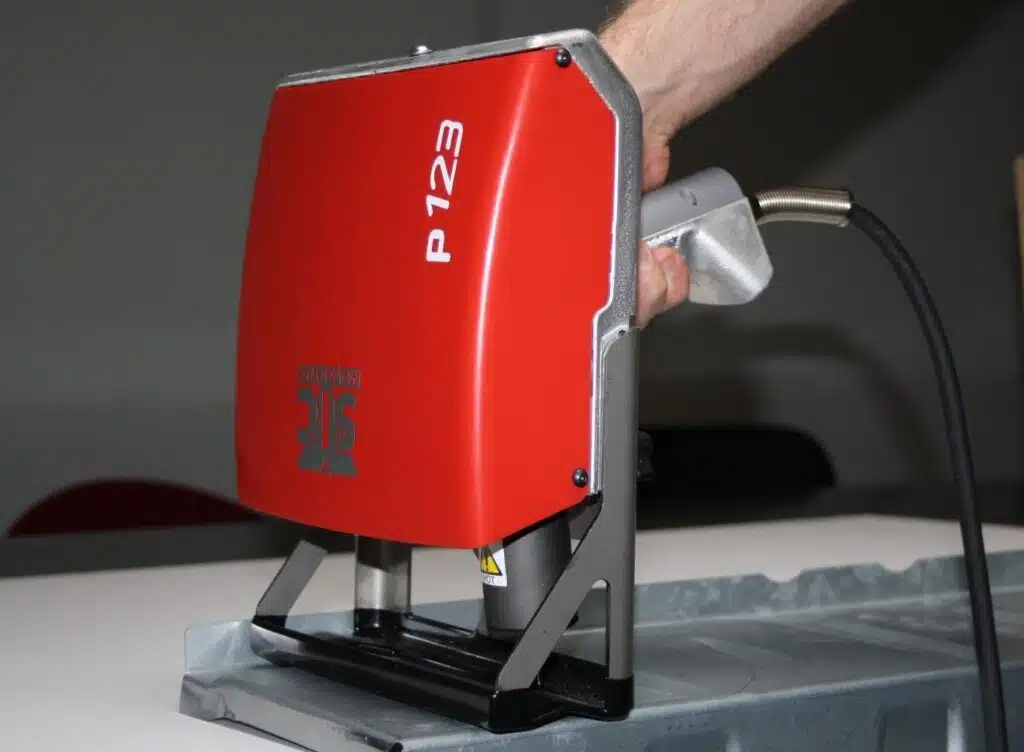

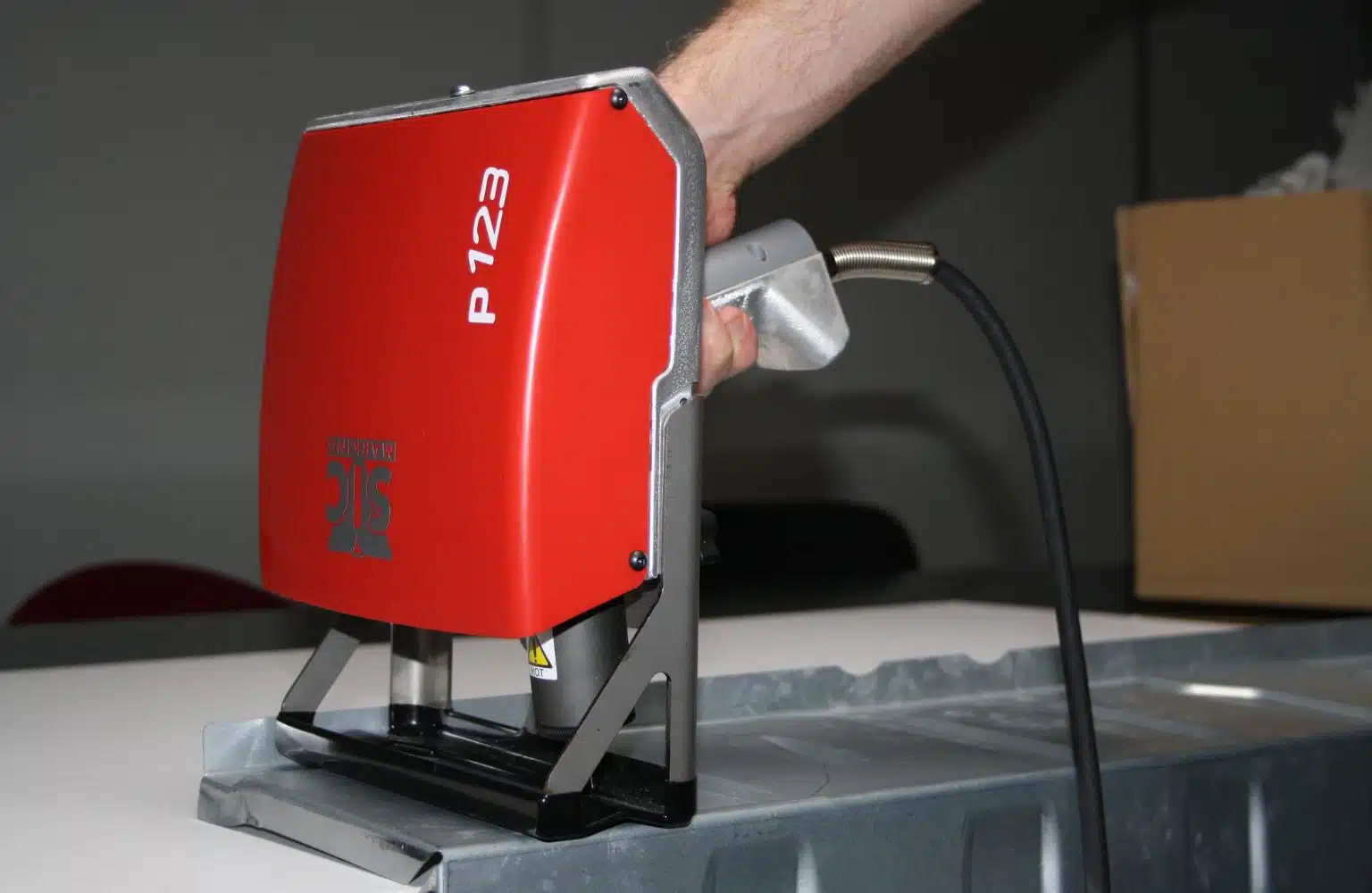

The P123 is a DOT PEEN MARKING GUN designed to mark all types of industrial parts.
It features WIDE MARKING WINDOWS: 120×25 mm or 120×40 mm.

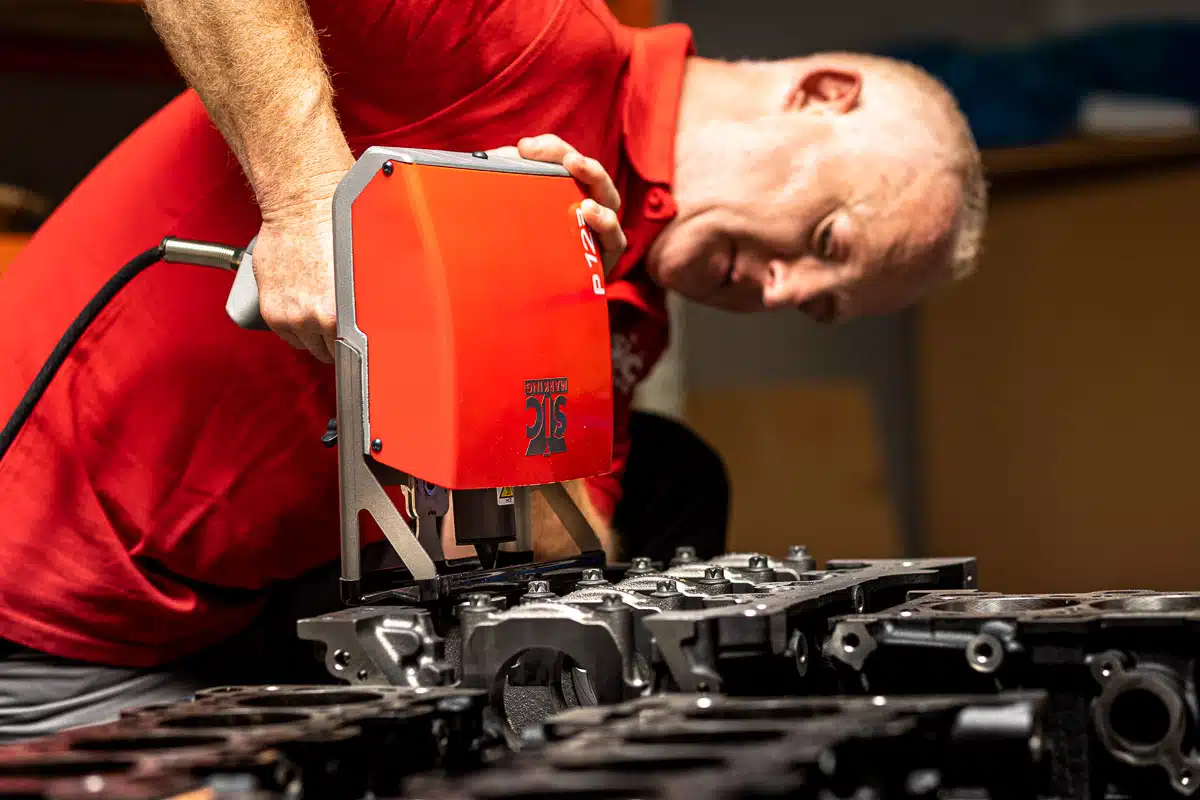

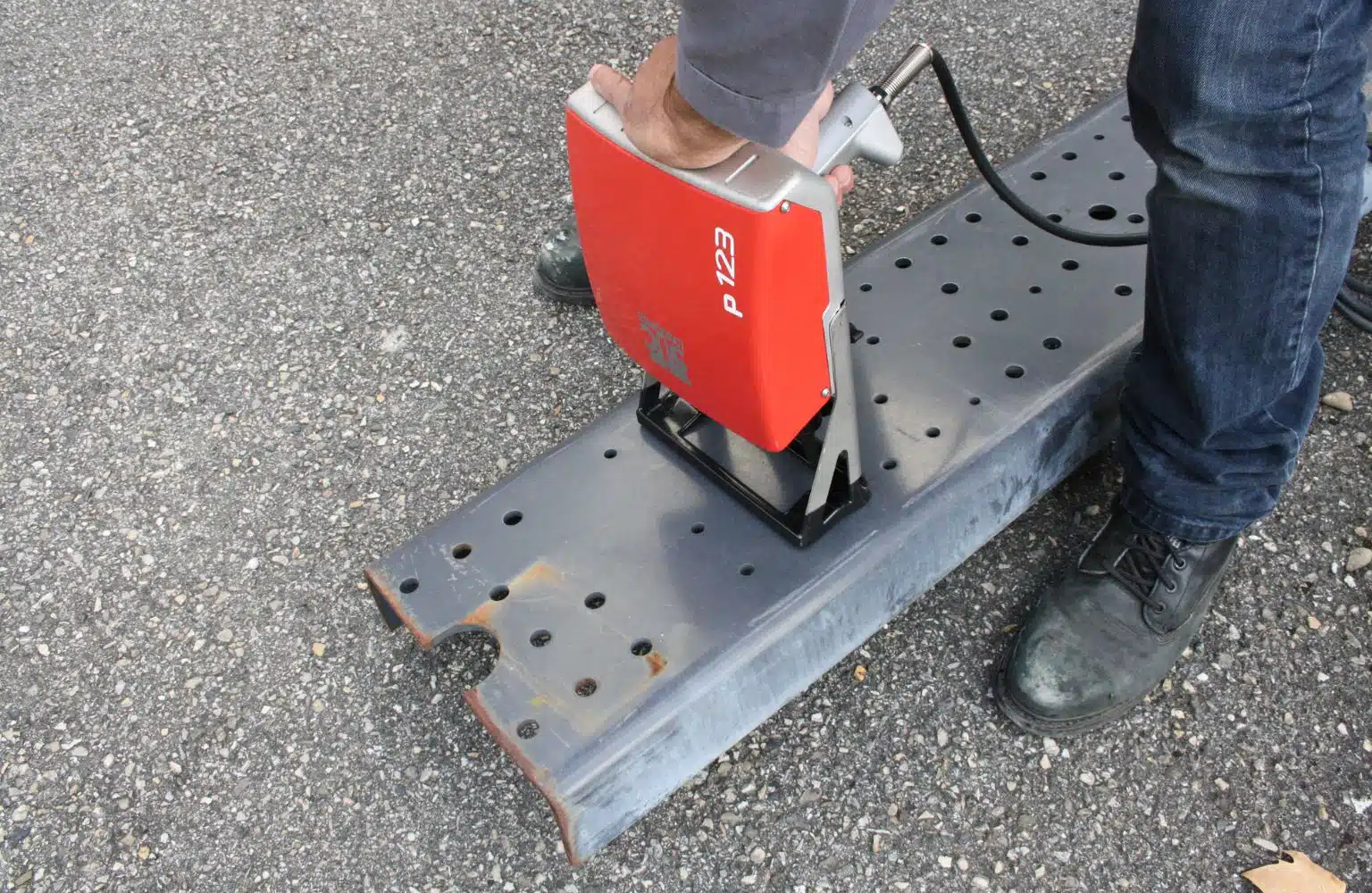

This mobile marking machine is suitable for the IDENTIFICATION AND TRACEABILITY OF HEAVY AND BULKY PARTS and can mark all types of material.

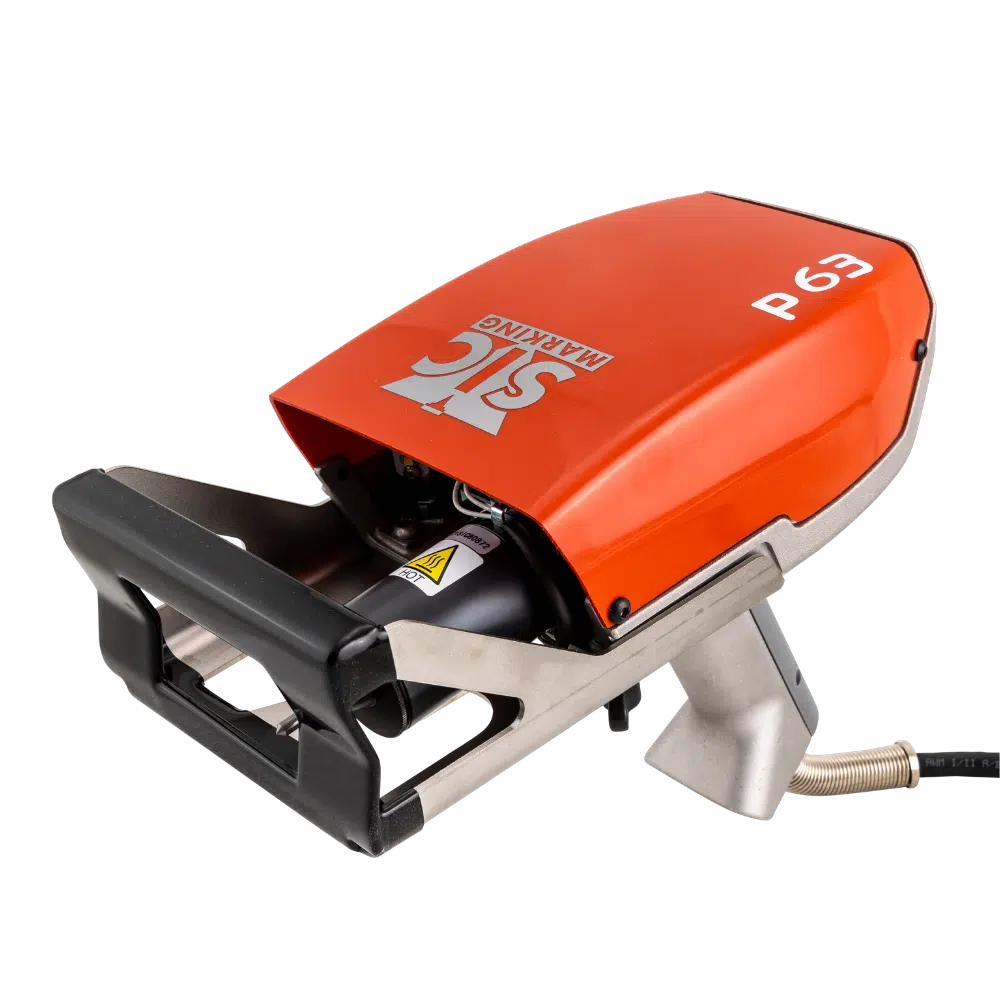

The P63 has a cast alloy body and a stainless steel front module that makes it EXTREMELY STRONG.
The P63 marking gun is fast and powerful and marks with constant quality and precision.

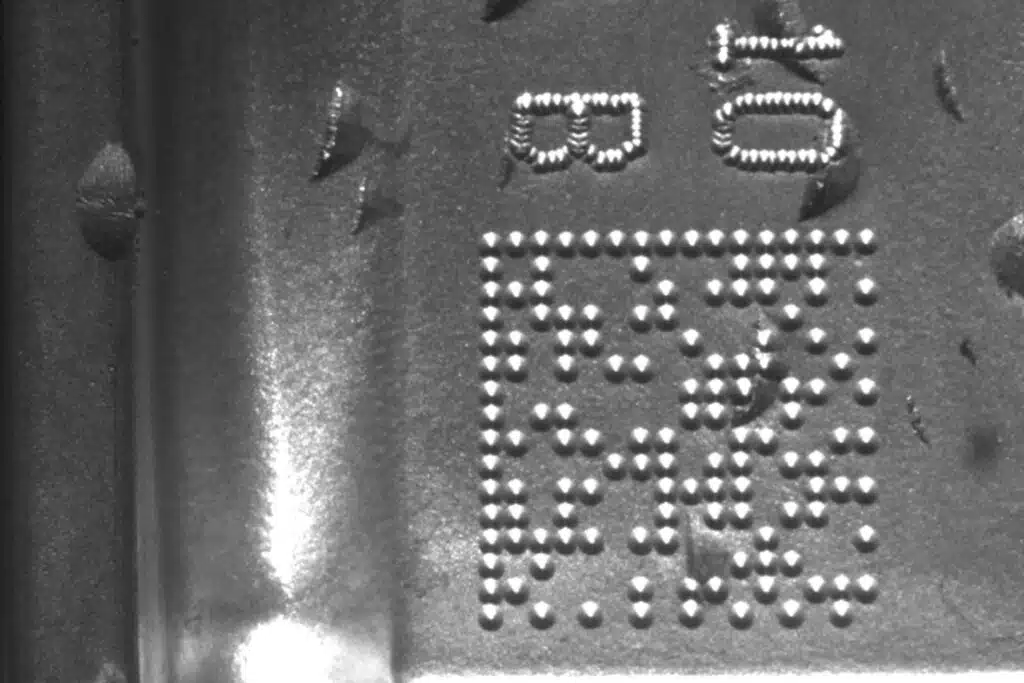

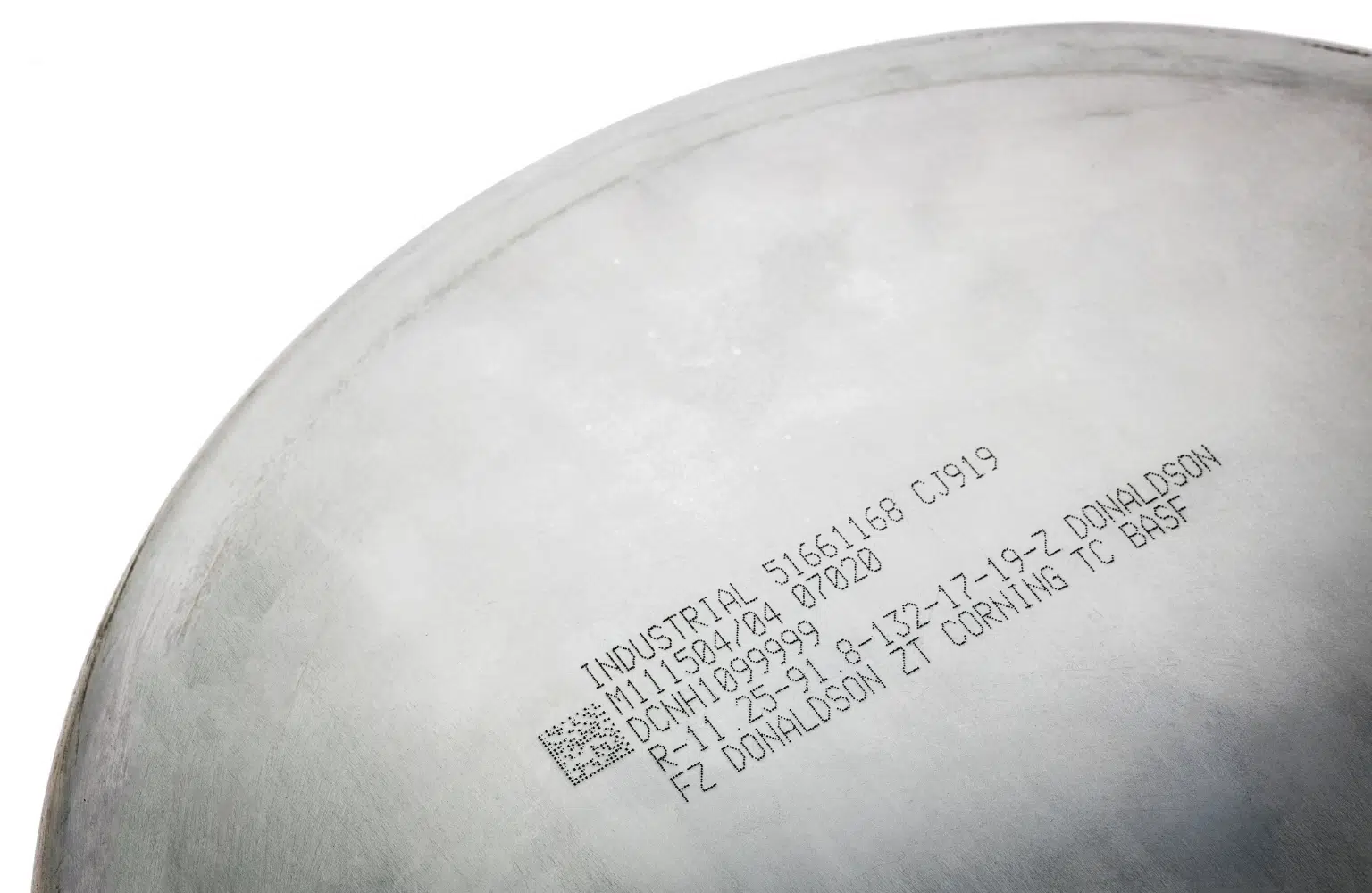

The P63 has a tungsten carbide stylus that distorts the material and can make PERMANENT MARKINGS of all types: alphanumeric text, logos, 2D Datamatrix code or QR-code.

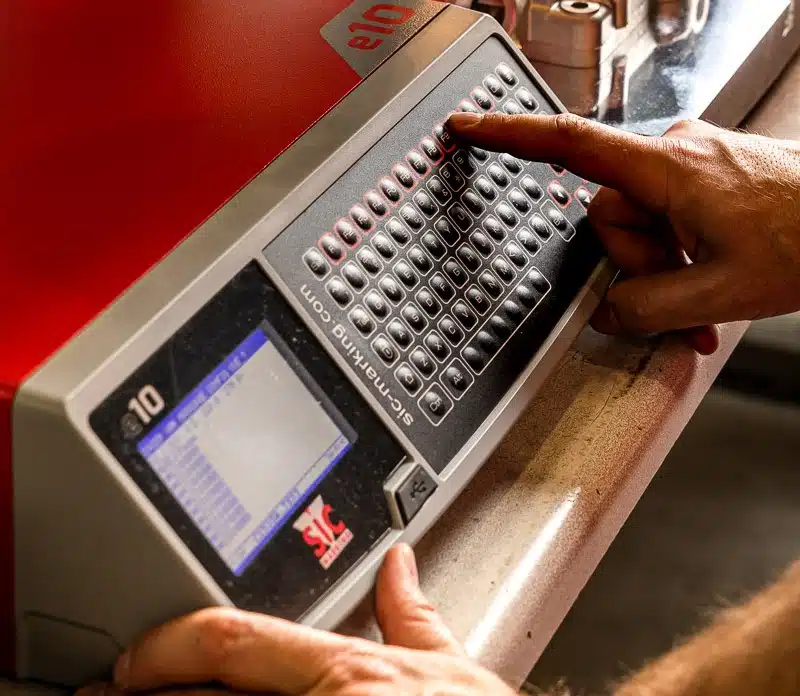

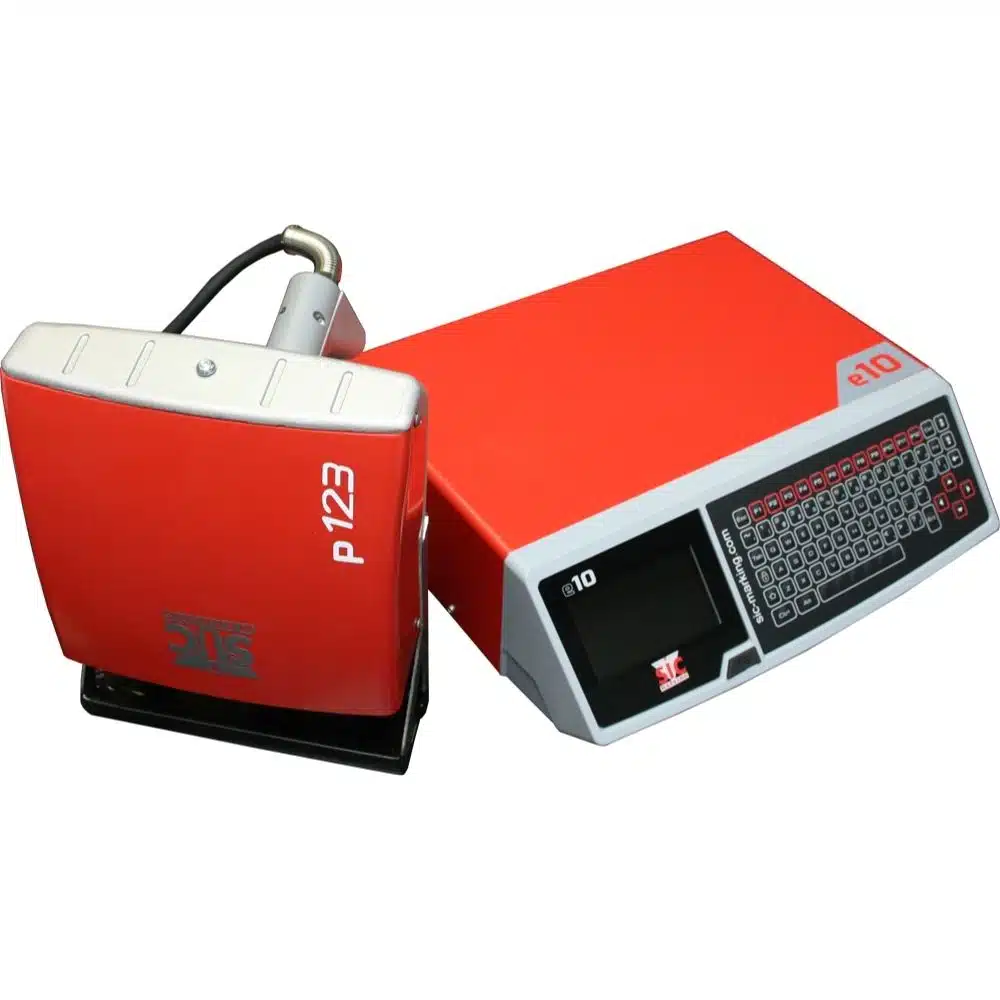

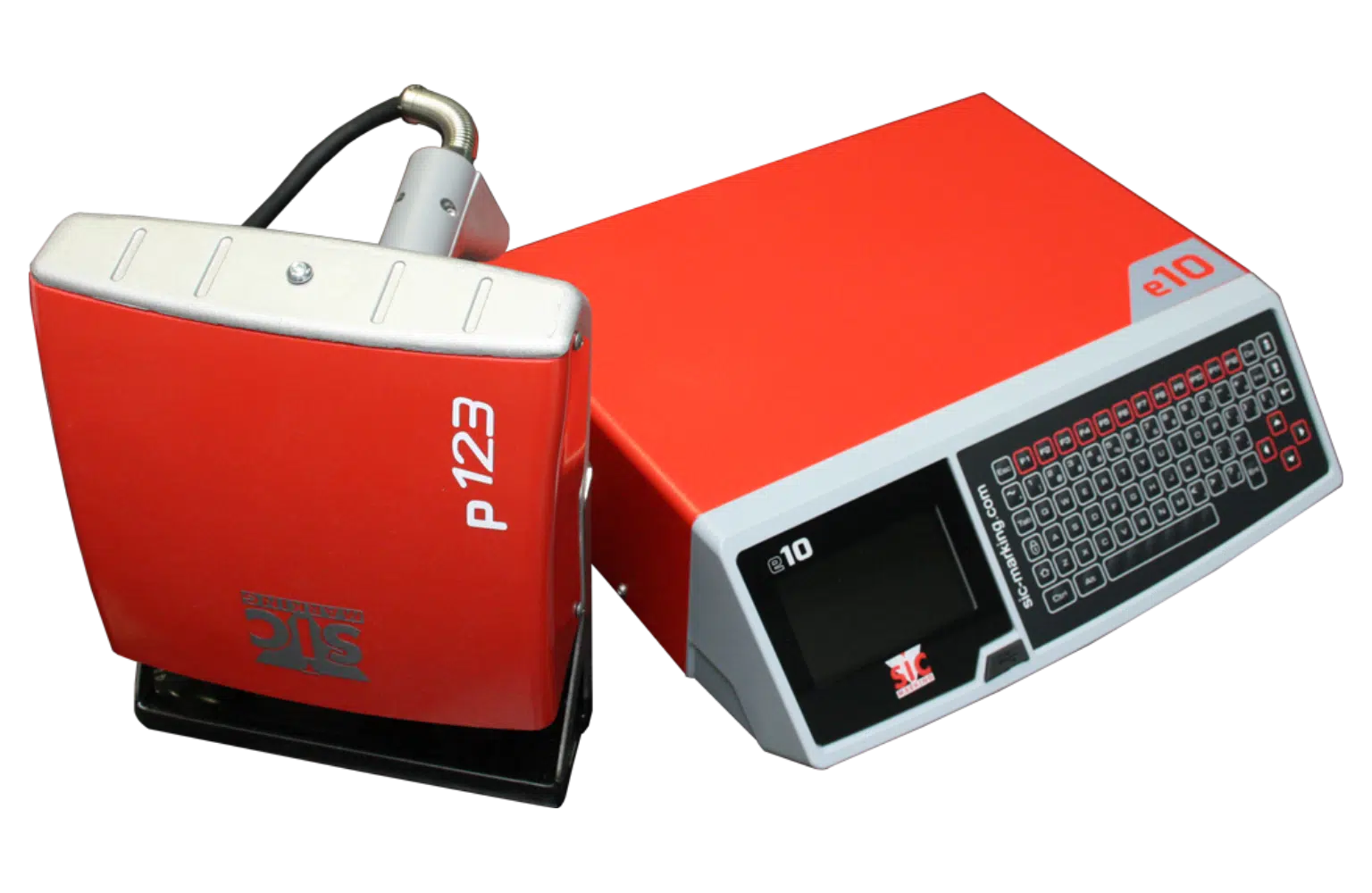

The P63 marking gun comes with AN INDEPENDENT E10 CONTROLLER that offers many programming possibilities.

The software is easily controlled through a colour screen and an industrial keyboard, protected by a plastic membrane.

All marking files can be transferred through the USB PORT on the E10 controller.

Zoom

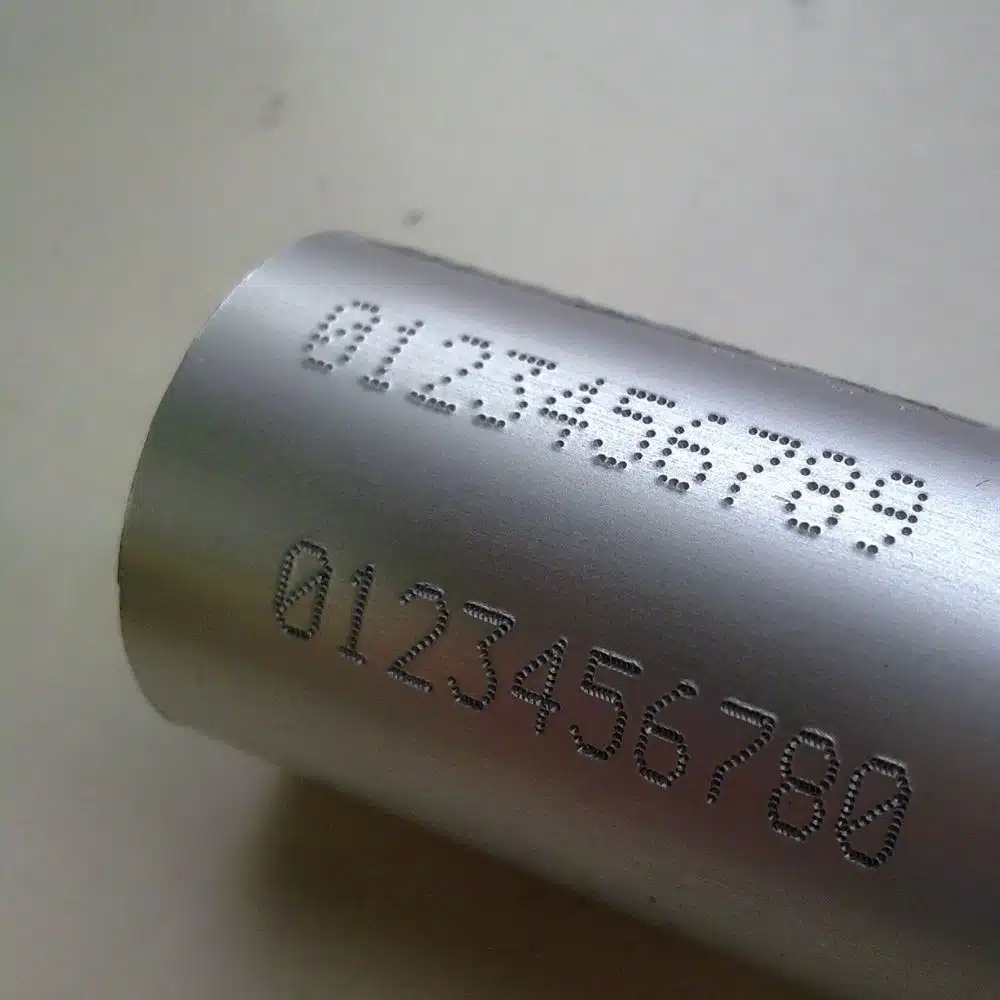

The P123 can also have a DEEP MARKING option (e10DP123).

A “booster” board and a specific striker assembly allow deep marking of parts such as the hardest hardened steels (62 HRC).

Deep marking conserves PERFECT READABILITY, even after surface treatment or the application of a coat of paint.

Mechanical specifications

Marking window

120 x 25 mm (option 120 x 40 mm)

Dimensions

277 x 207 x 218 mm

Weight

4.1 kg

Connection cable

7.5 m to 15 m on option

Stylus

Carbide 60 mm

Stability

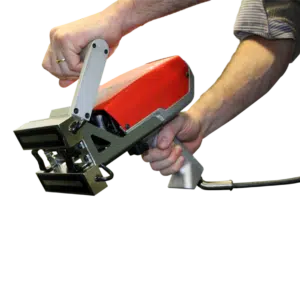

Front panel with V and adhesive surface

Set stylus-piece distance

4 predefined indices

Electronic specifications

Dimensions

322 x 380 x 112 mm

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 85 to 260 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

Creation from the PC software

Datamatrix

Up to 348 characters, 48 x 48 cells

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

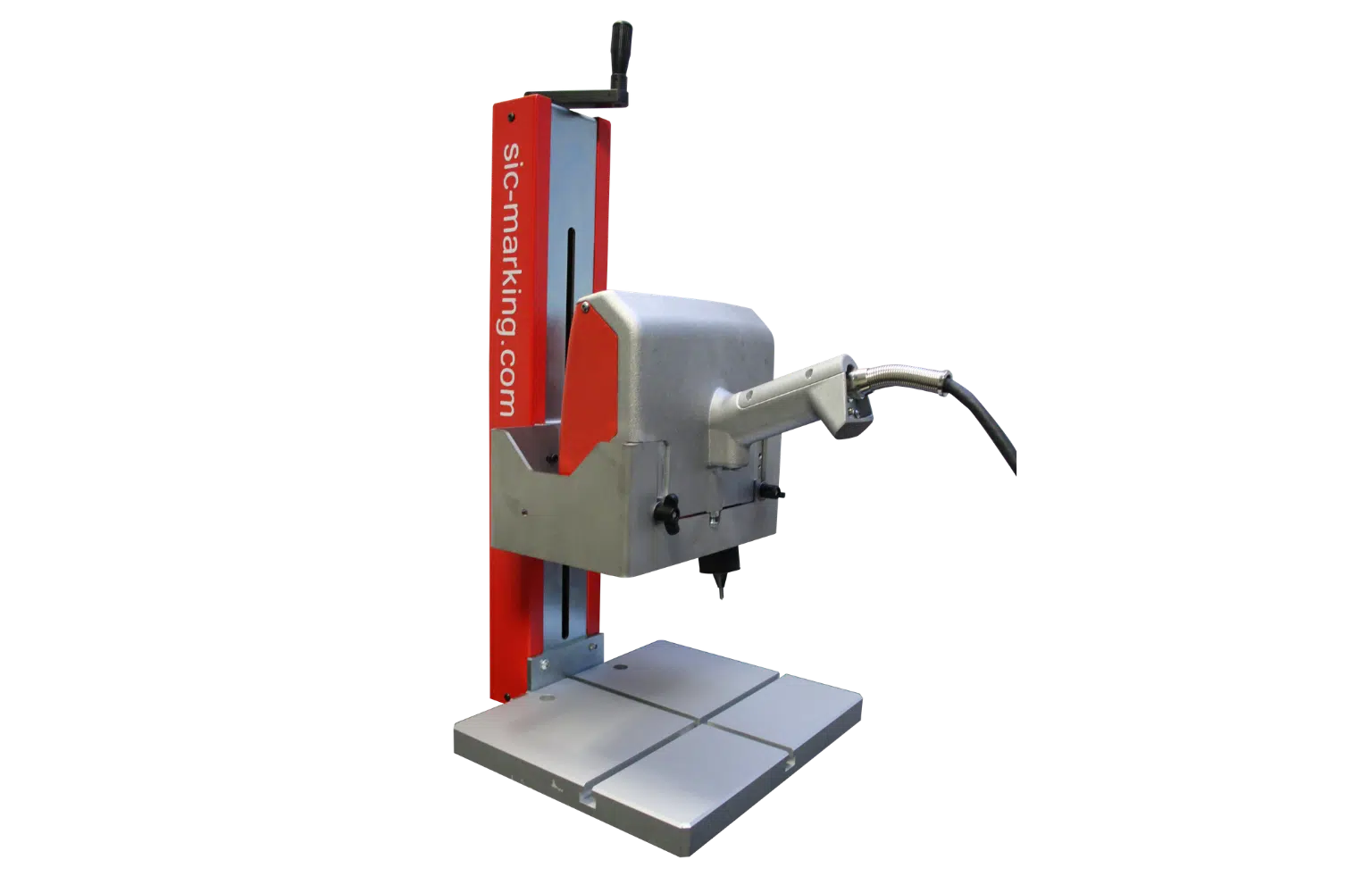

COLUMN BASE FOR PORTABLE MARKING SYSTEM

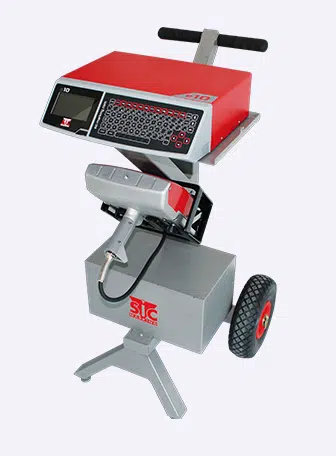

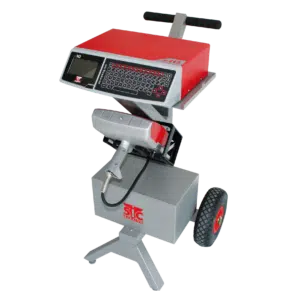

CART FOR RANGE OF PORTABLE MARKING MACHINES

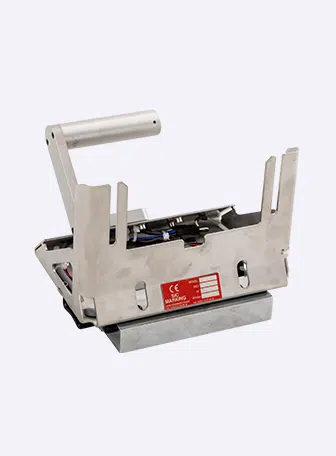

MAGNETIC CLAMPING
