Marking machine

E-TOUCH XL

Large marking window
Autonomous and mobile
Robust and compact

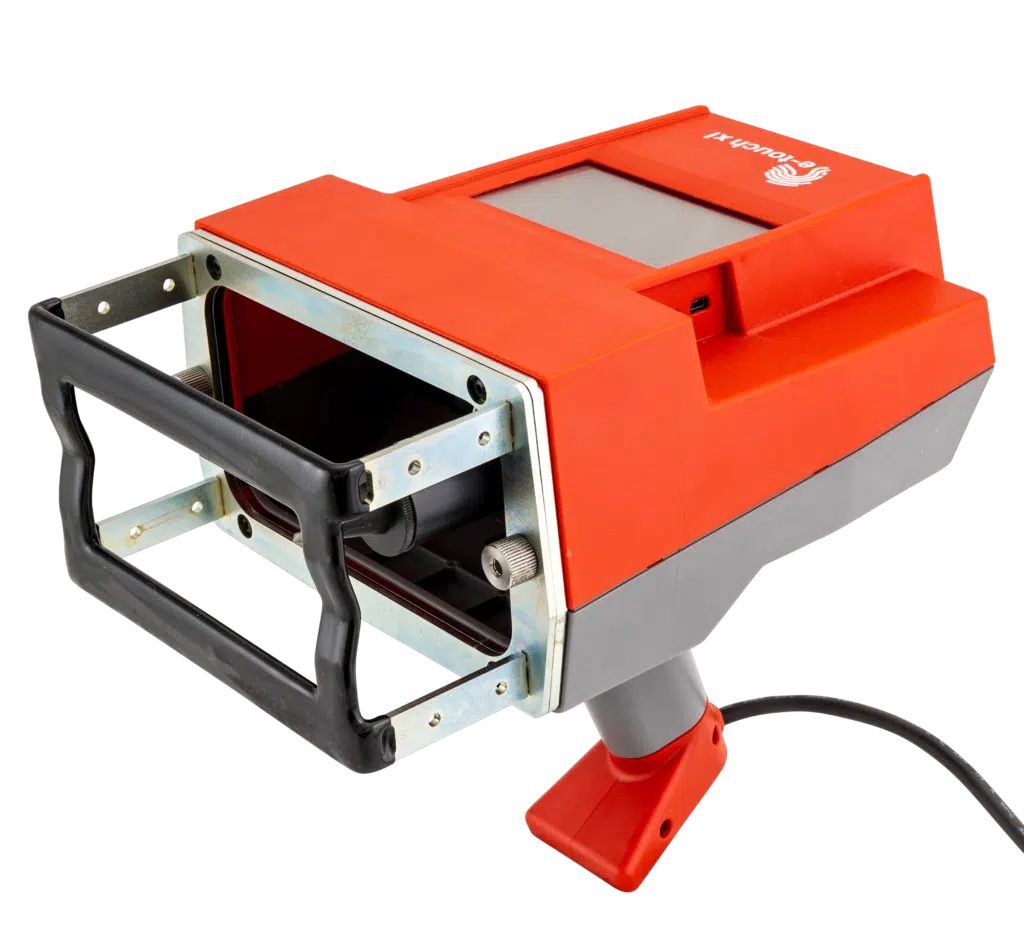

Macchina di Marcatura Portatile con touch screen E-TOUCH XL
Description

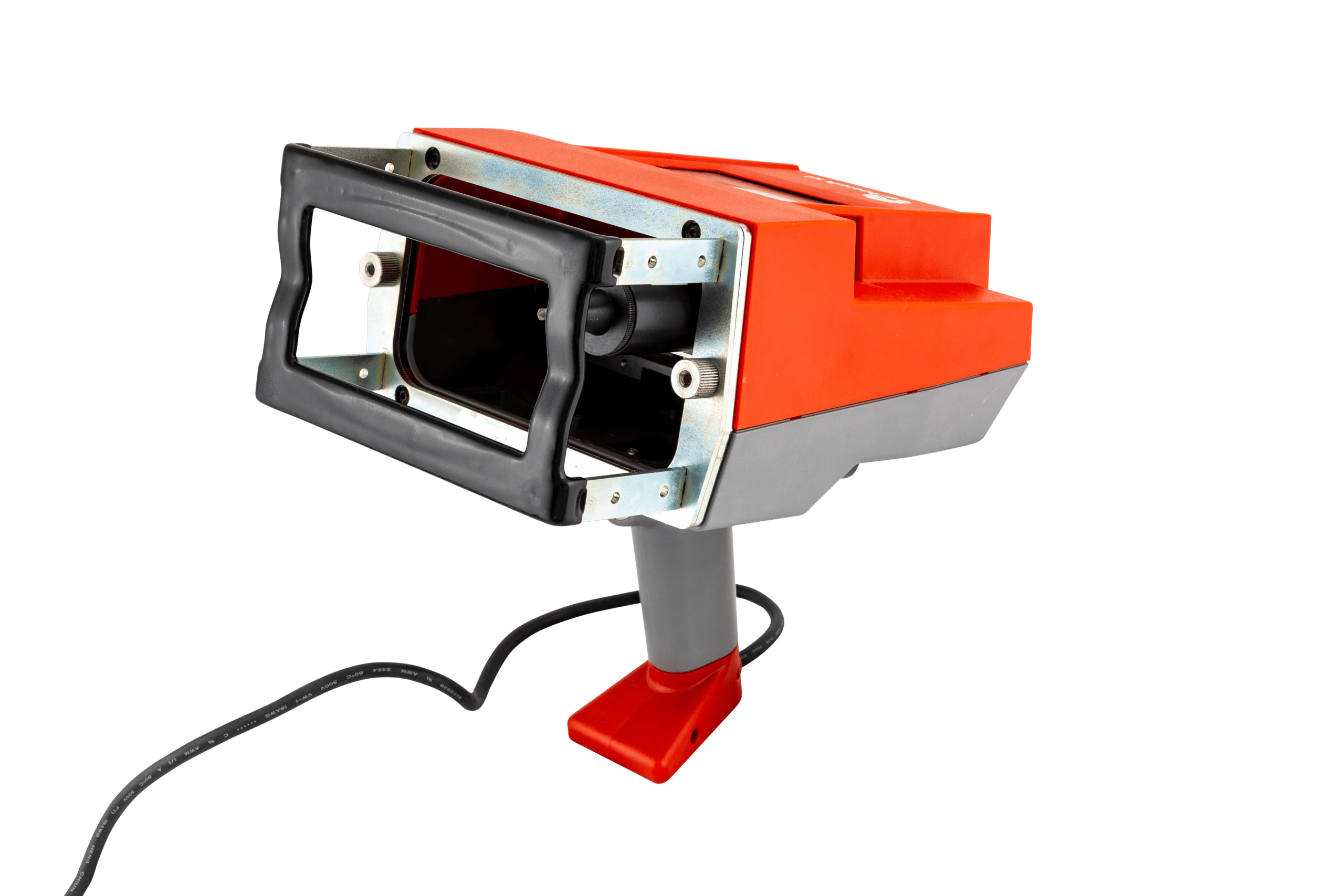

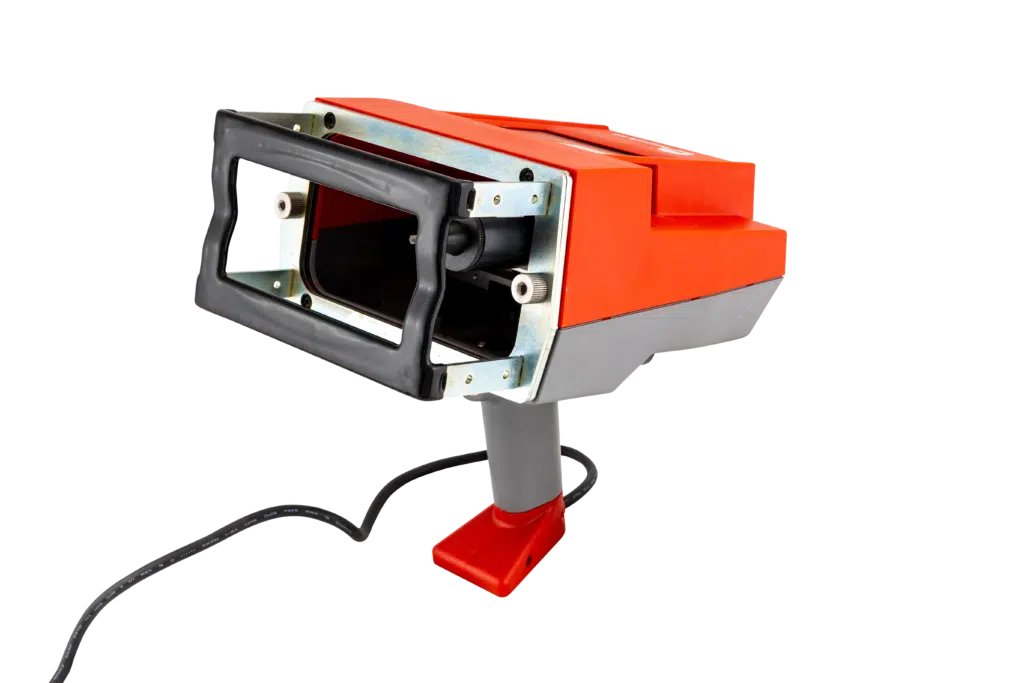

The E-TOUCH XL is a cordless portable touch screen marking machine with A VERY LARGE MARKING WINDOW: 120 x 50 mm.

It is robust, compact and light.
It has 3 CONTACT FACES that allow it to be set up in various marking configurations (piece shapes and marking conditions).

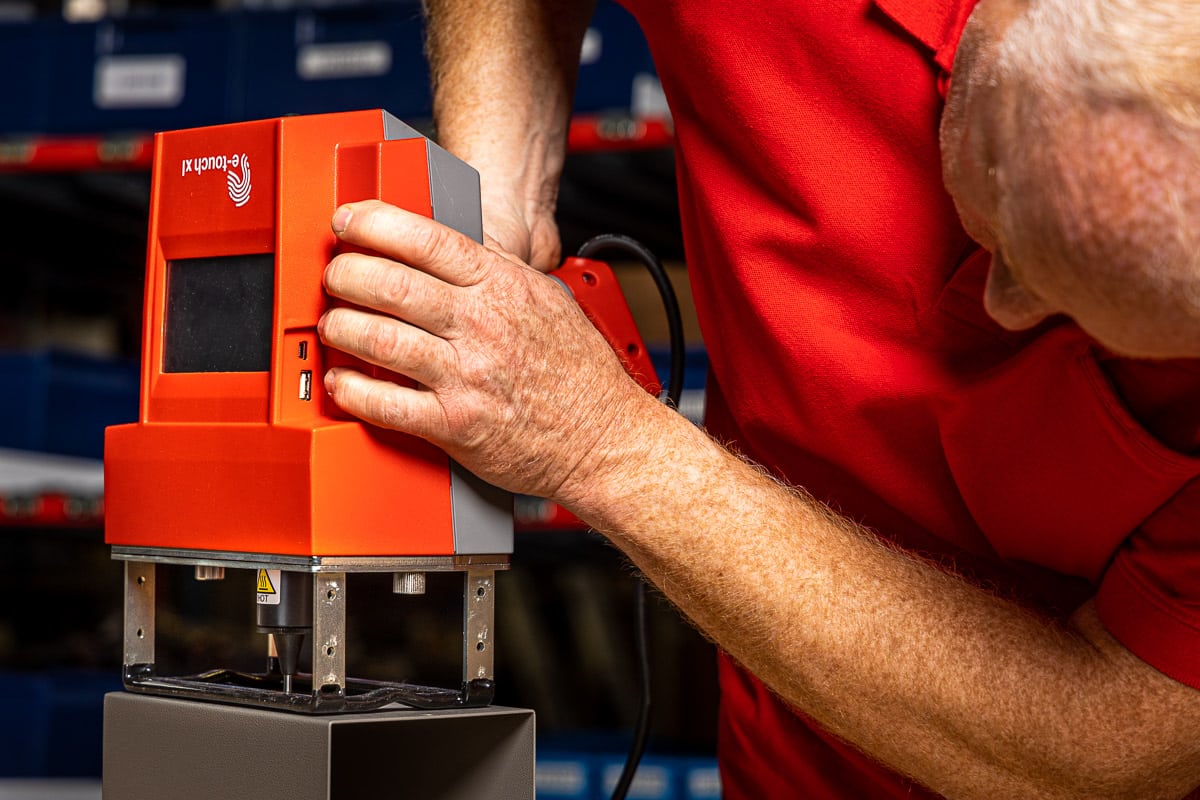

The E-TOUCH XL WEIGHS LESS THAN 3 kg and has a large marking window. It can mark HEAVY OR BULKY PARTS while also being mobile.
Nevertheless, its internal metal structure makes it very robust.
In addition, an ergonomic handle and excellent mass balancing make it VERY EASY TO HANDLE.

The shape of the E-TOUCH XL allows programming with both hands.

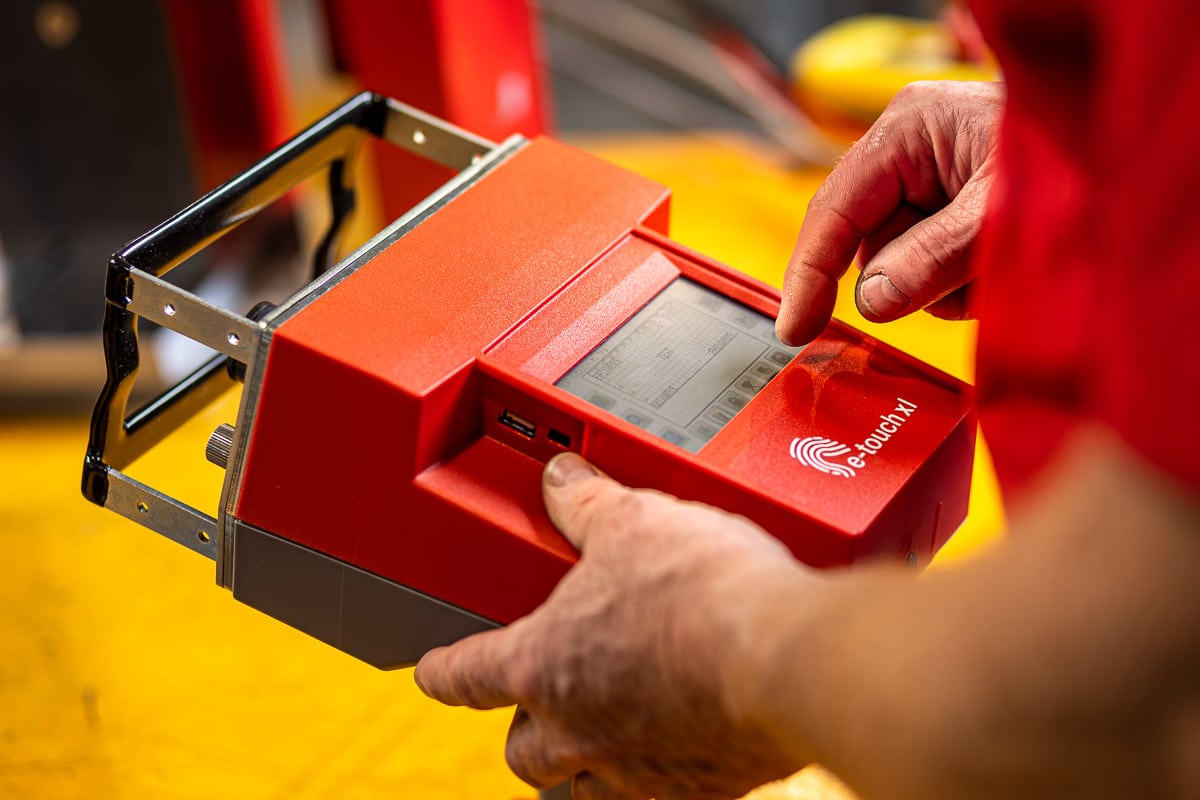

The TOUCH SCREEN is usable with or without gloves, which makes it particularly suitable for use in an industrial environment.
Its full-size viewing window allows the MARKING TO BE PREVIEWED exactly as it will be applied on the piece.

The E-TOUCH XL portable touch screen marking machine uses DOT PEEN TECHNOLOGY to mark industrial parts. The marking may be alphanumeric text, a logo, a 2D Datamatrix code or a QR Code.

The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

The E-TOUCH XL has an INTEGRAL E1 CONTROLLER.
The control software allows the controller to programme all the marking parameters through the screen-keyboard interface.
Programming is also possible from a PC.

Mechanical specifications

Marking window

120 x 50 mm

Dimensions

272 x 194 x 251 mm

Weight

2.6 kg

Connection cable

5 m

Stylus

Carbide

Electronic specifications

Colour HD screen

95 x 54 mm

Keyboard

Touch

Control software

Marking file capacity

Up to 20,000 files

Memory

100 MB

Variable

Alphanumeric, serial numbering, date/time tags, barcode

Logos and files

Loading from USB memory stick

Fonts

Courier, 4×6, OCR-Bold, OCRA and OCR

Marking

Linear, radial, angular, DataMatrix, logo

Rate

Up to 2.5 characters per second

Font size

Minimum 1 mm

Impact force

1 – 9

Depth

Up to 0.3 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

9 mm

COMMUNICATION
Ports

USB and Coax.

Options

1D/2D BLUETOOTH BARCODE READER

ATTACHMENT RING + BALANCER

COLUMN BASE FOR PORTABLE MARKING SYSTEM
