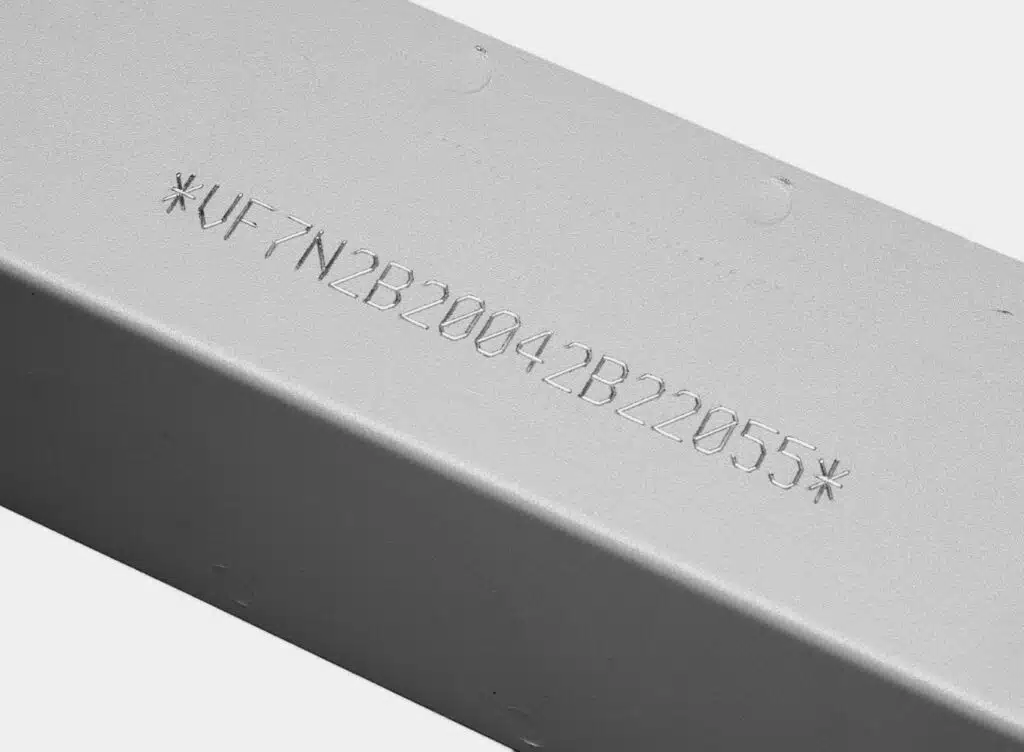

VIN marking
Wide marking window
High speeds
Machine de marquage par rayage à intégrer sur ligne de production
Description

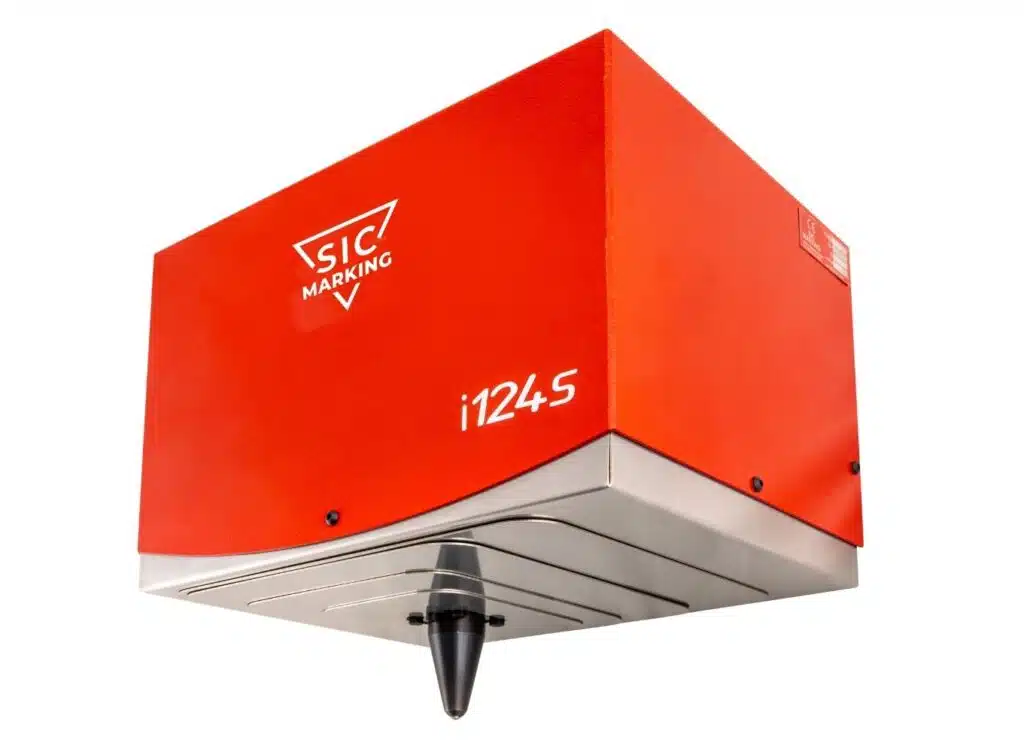

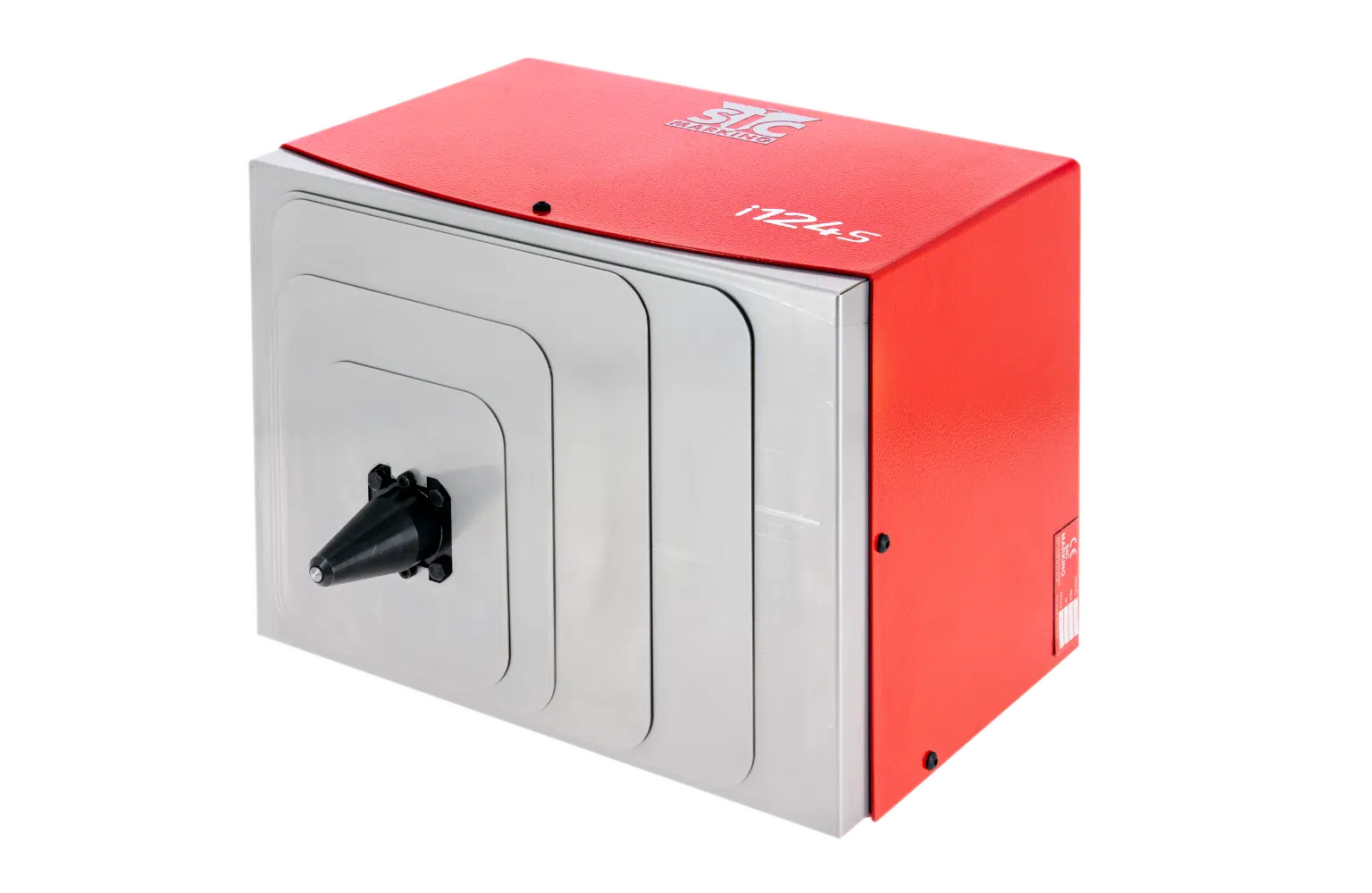

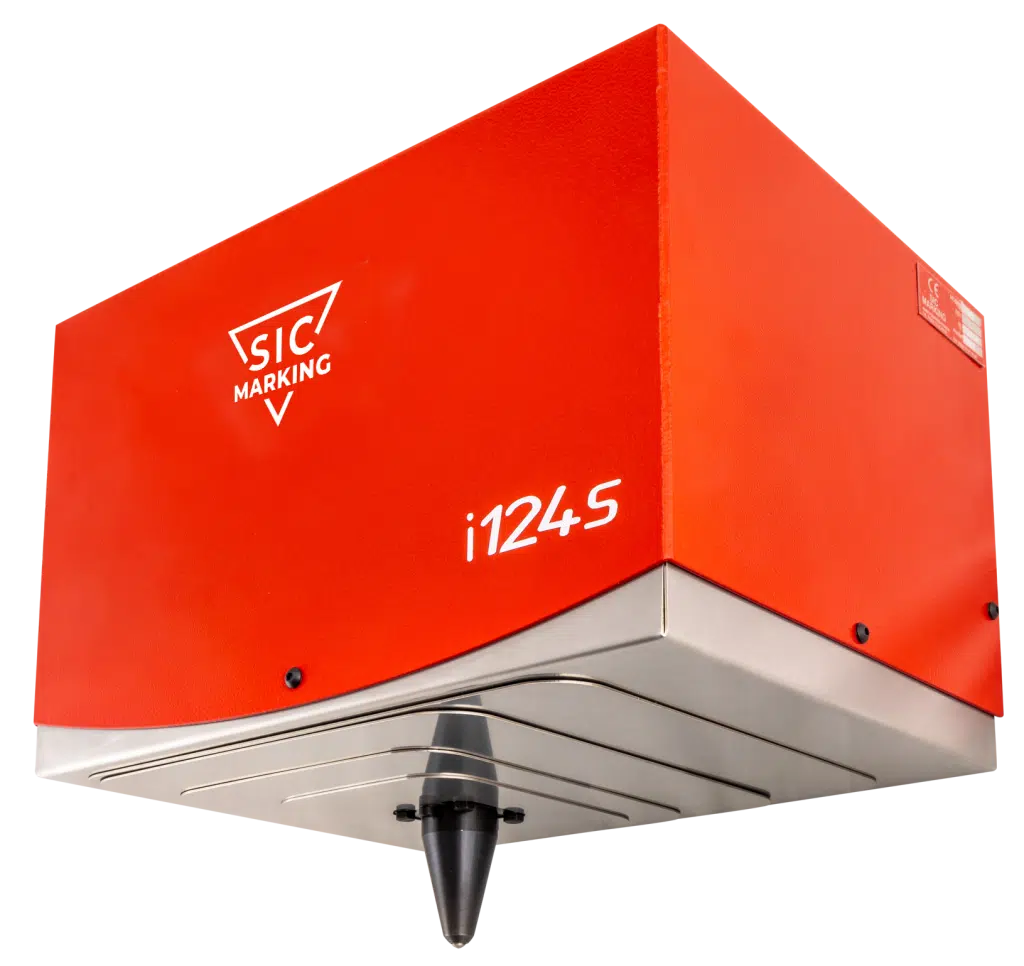

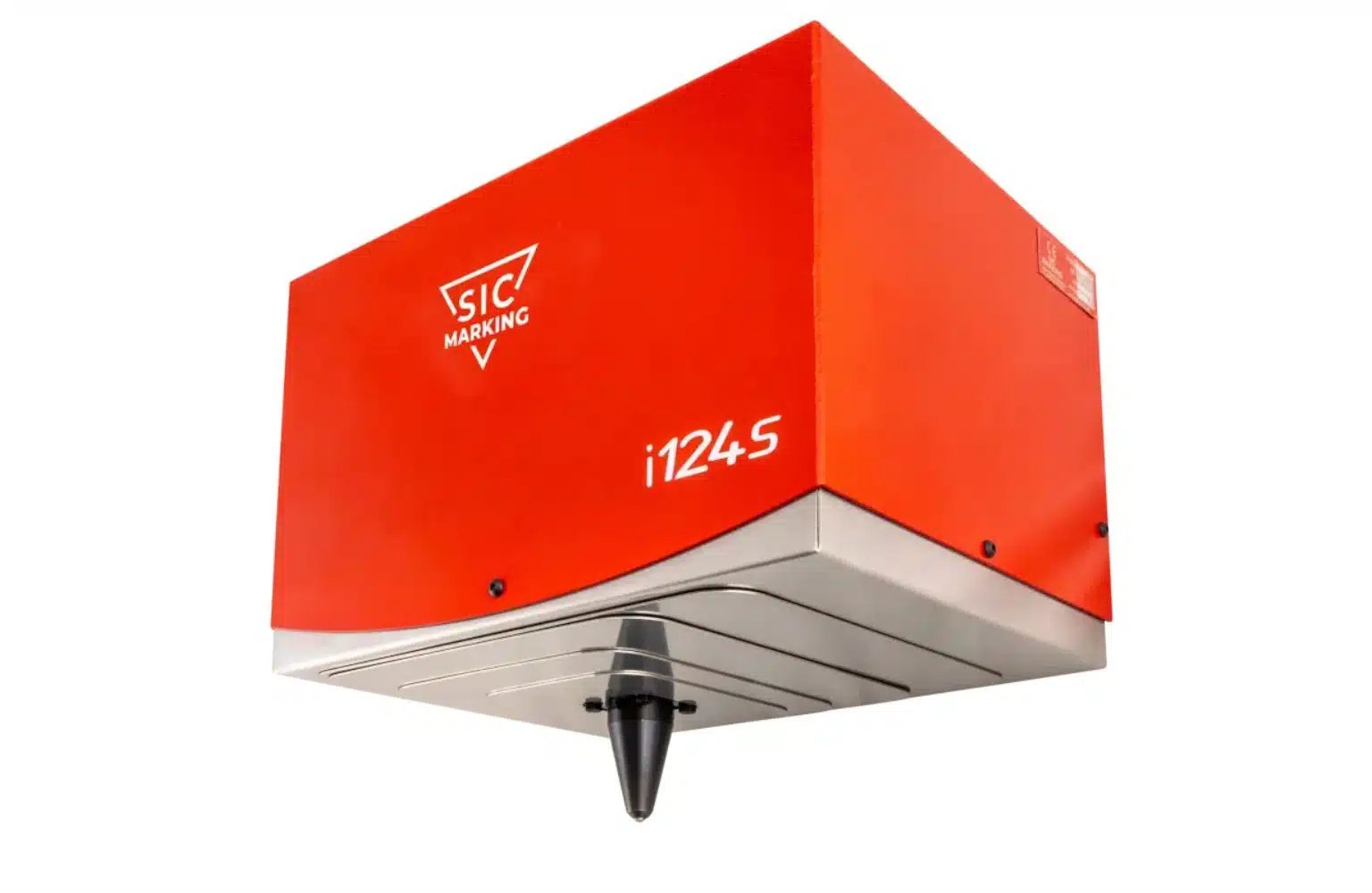

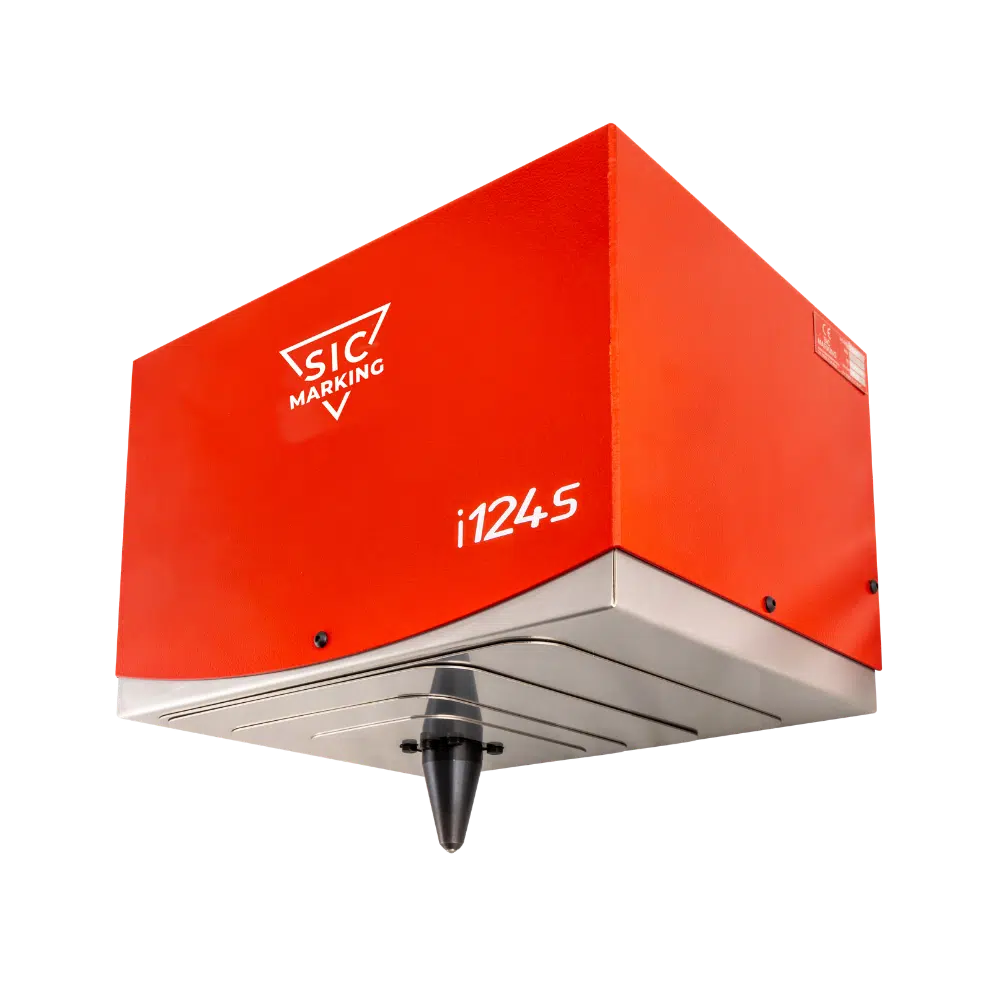

The I 124S is a scribe marking machine that can easily be integrated into a production line.
It differs from the I 63S by its wide marking window (120 mm x 60 mm).

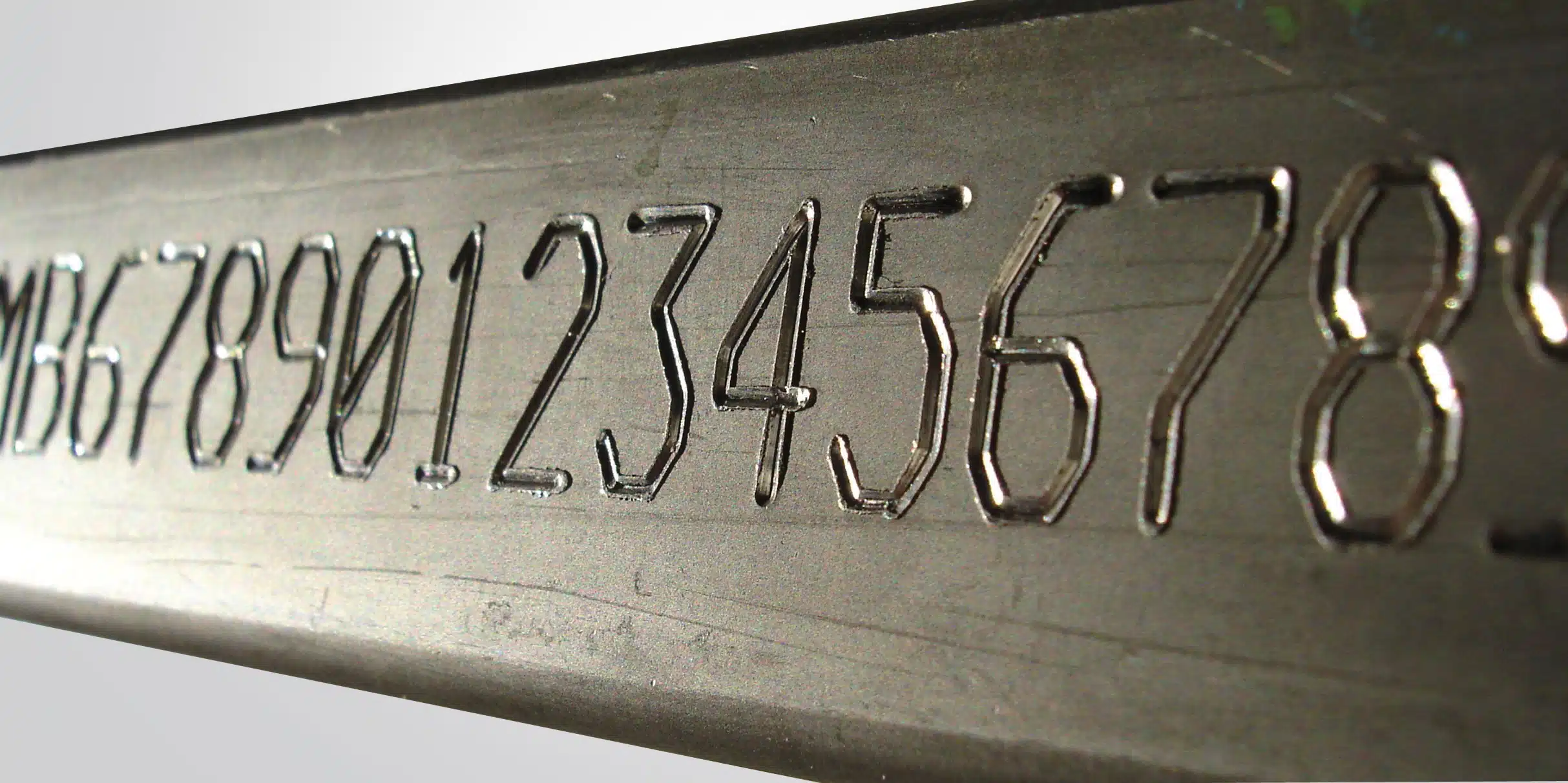

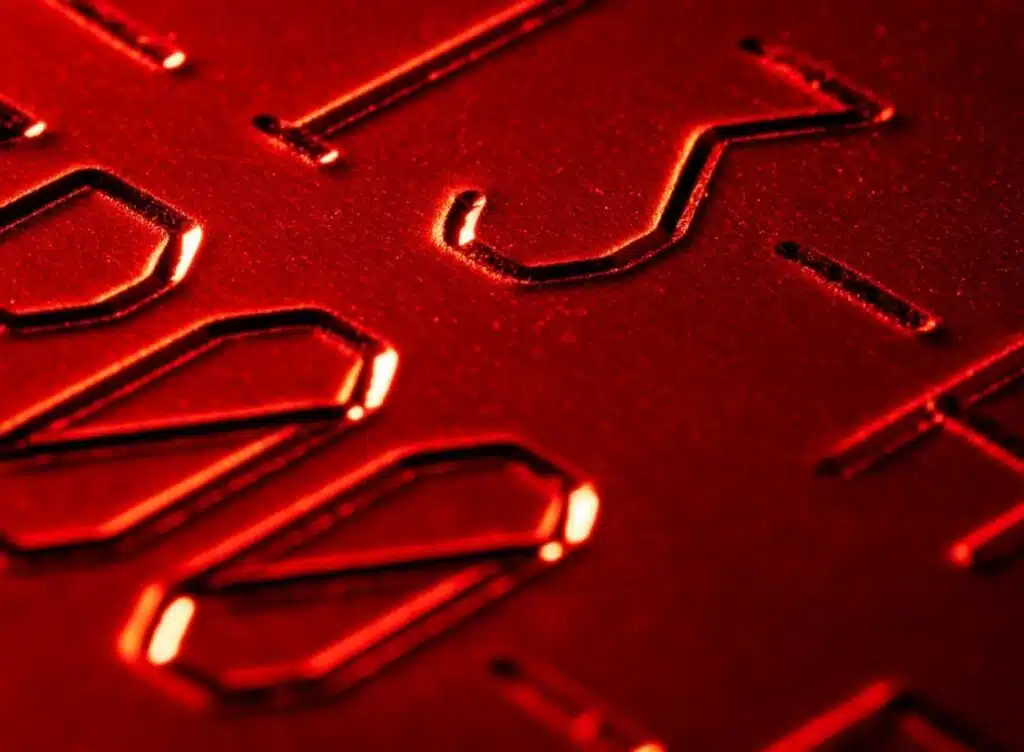

Scribing is a marking technology that is quieter than dot peening.
The E10R I 124S is powerful and is therefore ideal for deep scribing on all types of material.

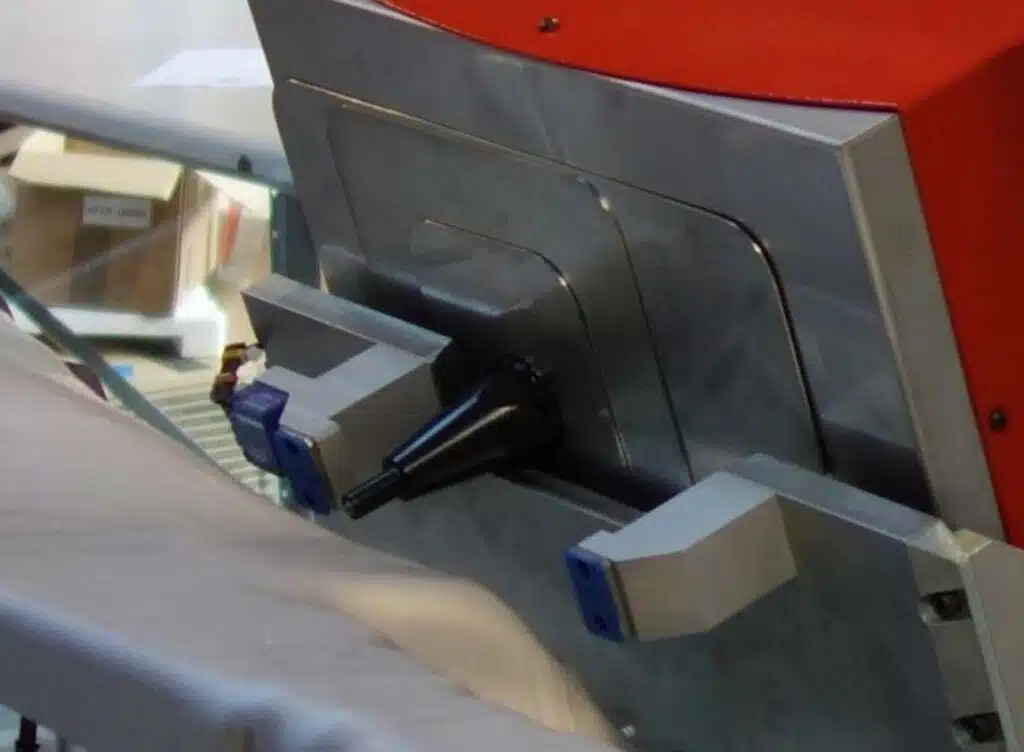

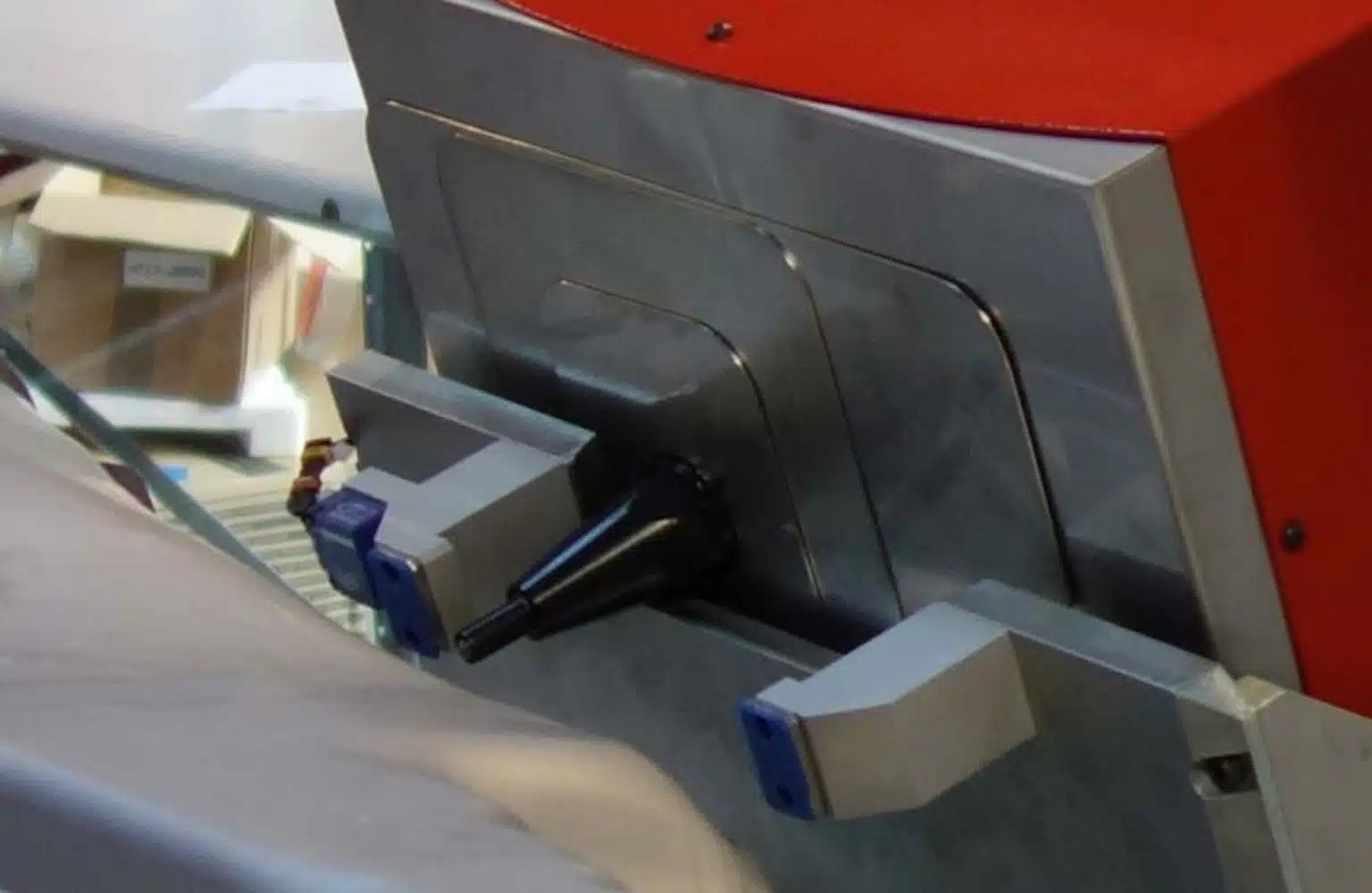

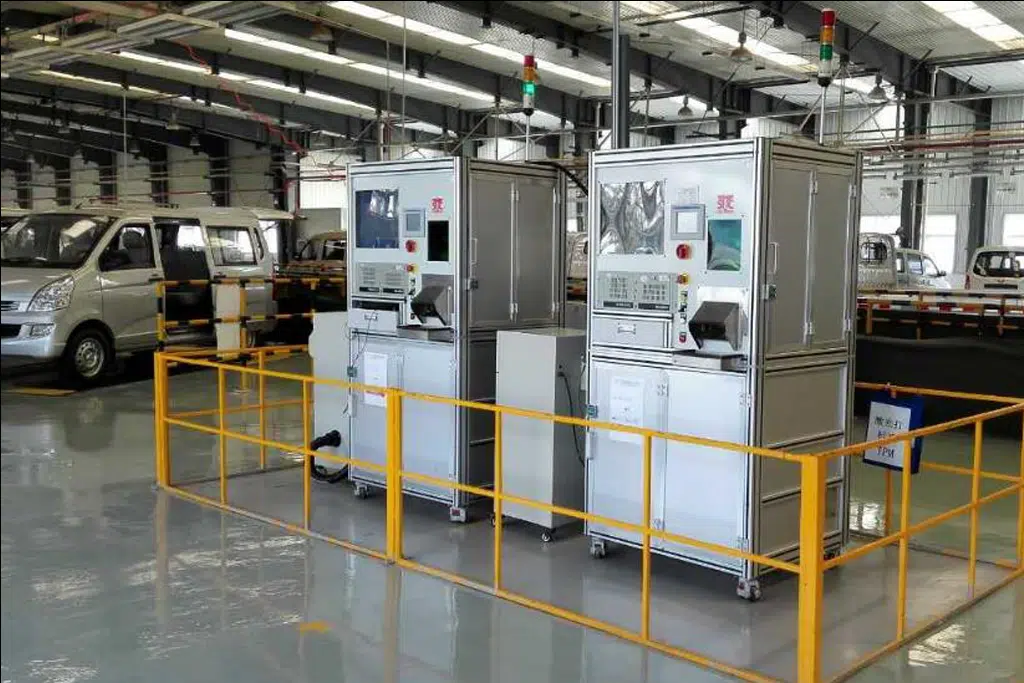

The robust structure of the I 124s is protected against projections by stainless steel bellows and a full cowling. The machine can therefore be integrated into difficult environments and operate at high rates.

The E10 is complete and powerful, and can be completed with optional supplementary boards, such as Profinet, Profibus or Ethernet IP communication boards, or axis control boards (translation or rotation).

The E 10 R variant is ideal for the integrable range, due to its small size and vertical mounting, which allow it to be installed in a standard electrical cabinet.

Its easy integration and programming make it very simple to use. Utilisation cost is low as no maintenance or consumables are needed.

Mechanical specifications

Marking window

120 x 60 mm

Weight

18 kg

Dimensions

230 x 300 x 357.5 mm

Stylus

Carbide or diamond tip 60 mm

Robotics cable

5 m (10 or 15 m on option)

Max. working pressure

6 bar

Maximum stylus stroke

2 mm

Electronic specifications

Dimensions

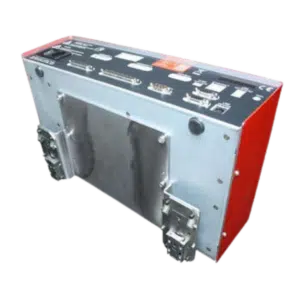

112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)

Weight

5 kg

LCD screen

95 x 54 mm

Keyboard

Qwerty with waterproof membrane

Power

300 W

Power supply

Single phase, 85 to 260 V AC, 50-60Hz

Number of axes controlled

2 (3rd and 4th axis on option)

Control software

Marking file capacity

More than 2000

Memory

7110 KB

Alphanumeric characters

Serial numbering, date/time tags

Logos

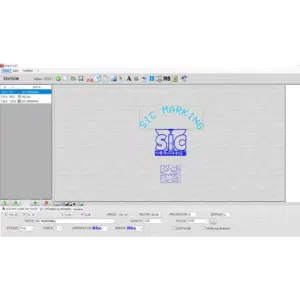

Creation from the PC software

Fonts

Arial, Courier, OCR and OCRA

Style

Angular, Radial, Inverted and Mirror

Rate

Up to 5 characters per second

Font size

From 0.1 mm to 99 mm

Impact force

9 levels

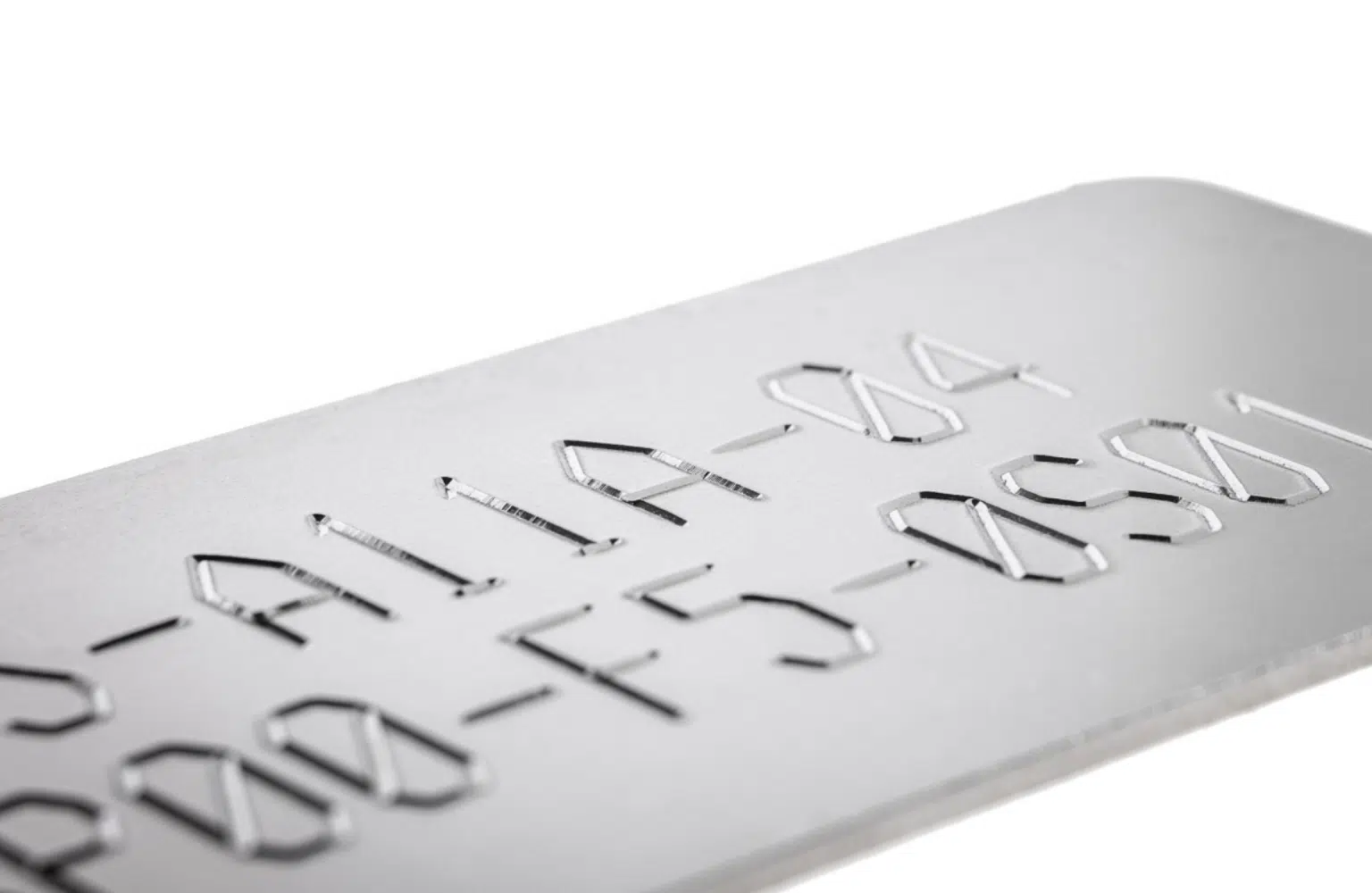

Depth

Up to 0.5 mm

Resolution between dots

0.05 mm

Maximum stylus stroke

Up to 8 mm

Personnel management

Maximum 10

Password protection

3 security levels

History function

Password protected

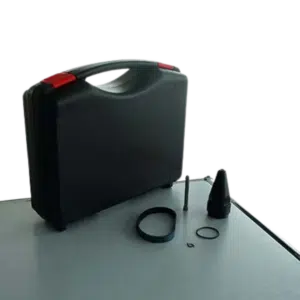

Maintenance aid

Self-Diagnostic component

Languages available

17

COMMUNICATION
Ports

RS232, RS422, USBx2, RS485, Profibus and Ethernet on option

Inputs/Outputs

16

Remote keyboard input

USB

External output

5V-0.5A and 24V-0.5A

Logos

Creation and transfer software

File saving on PC

PC software or USB memory stick

Database link

Option

Options

HIGH CAPACITY D AXIS FOR E10 RANGE

STRENGTHENED COLUMN BASE FOR SCRIBING AND DEEP DOT PEENING MACHINE

E10 R CONTROLLER
