our solutions > workshop range > INTEGRATED DOT PEEN
The E-TOUCH is a PORTABLE MARKING MACHINE WITH A TOUCH SCREEN.
It is robust, compact and light.
It has 3 CONTACT FACES that are INTERCHANGEABLE without tools, that allow it to be set up in various marking configurations (piece shapes and marking conditions).
The E-TOUCH weighs LESS THAN 2 kg and is very compact, measuring 220 x 210 x 125 mm. It is the LIGHTEST AND MOST COMPACT PORTABLE DOT PEEN MARKING GUN ON THE MARKET/
Nevertheless, its internal metal structure makes it very robust.
In addition, an ergonomic handle and excellent mass balancing make it VERY EASY TO HANDLE.
The shape of the E-TOUCH allows programming with both hands.
The TOUCH SCREEN is usable with or without gloves, which makes it particularly suitable for use in an industrial environment.
Its full-size viewing window allows the MARKING TO BE PREVIEWED exactly as it will be applied on the piece.
The E-TOUCH portable marking machine uses dot peen technology to mark industrial parts.
The marking may be alphanumeric text, a logo, a 2D Datamatrix code or a QR Code.
The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.
Mechanical specifications
60 x 25 mm
210 x 125 x 220 mm
1.9 kg
5 m
Tungsten carbide
Electronic specifications
95 x 55 mm
Touch
100W
18 V / 3 A
Coax. socket
Creation, backup and transfer of logo files
Control software
Up to 20,000 files
100 MB
Alphanumeric, serial numbering, date/time tags, barcode
Loading from USB memory stick
Courier, 4×6, OCR-Bold, OCRA and OCR
Linear, radial, angular, DataMatrix, logo
Up to 2.5 characters per second
Minimum 1 mm
1 – 9
Up to 0.3 mm
0.05 mm
9 mm
USB and Coax.
Options

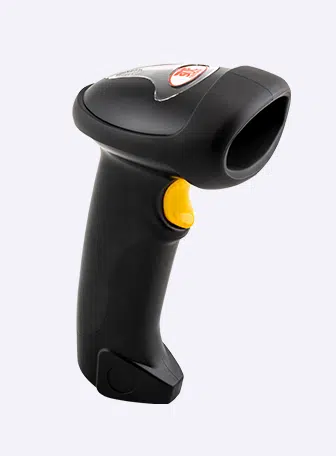

1D/2D BLUETOOTH BARCODE READER

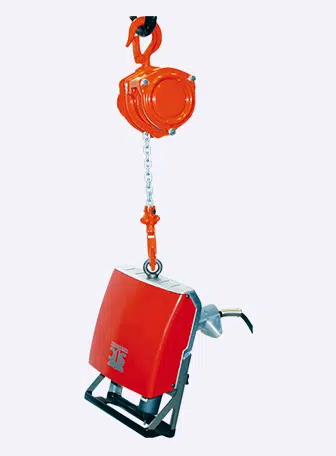

ATTACHMENT RING + BALANCER

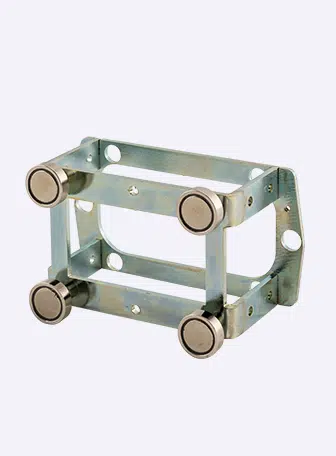

SUPPLEMENTARY FRONT PANELS (3 TYPES TO CHOICE, DEPENDING ON APPLICATION)
